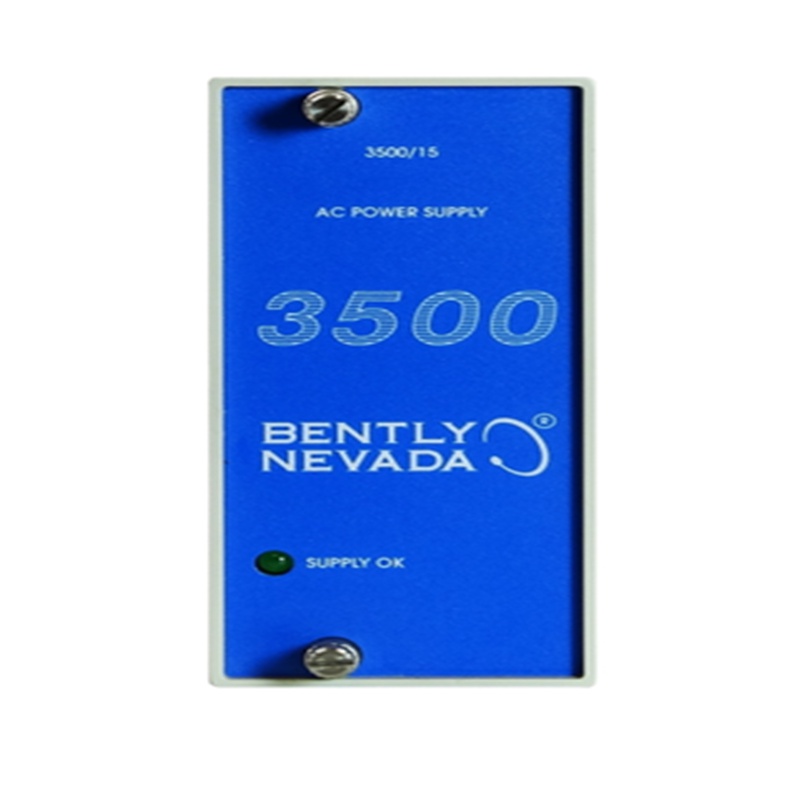

106M1079-01 BENTLY NEVADA Universal AC Power Supply Module

Description

106M1079-01 BENTLY NEVADA Universal AC Power Supply Module

Product Dimensions：

Product Description

The Bently Nevada 106M1079-01 is a crucial component within the Bently Nevada 3500 series, a widely used system for protecting and monitoring the health of critical machinery. Specifically, this part number refers to the Universal AC Power Supply Module.

This module’s job is to convert incoming AC power from the main grid into the specific DC voltages required by the other modules in the 3500 monitoring rack. It’s a half-height module that installs in a designated slot on the left side of the rack. The 3500 system is designed to be highly reliable, so it can accommodate one or two power supplies. If two are present, the second one automatically acts as a backup, providing a redundant power source to prevent system downtime.

Product Parameters

• Part Number: 106M1079-01
• Manufacturer: Bently Nevada (now part of Baker Hughes)
• Product Type: Universal AC Power Supply Module
• System Compatibility: Bently Nevada 3500 series
• Input Voltage:
  • Nominal: 110 to 220 Vac
  • Non-hazardous areas: 85 to 264 Vac rms
  • Hazardous areas: 85 to 250 Vac rms
  • Peak: 120 to 373 Vac
• Input Frequency: 47 to 63 Hz
• Physical Dimensions: (H x W x D) 120.7 mm x 50.8 mm x 251.5 mm
• Weight: 1.39 kg
• Output: Converts the AC input to the necessary DC voltages for the 3500 rack modules.

Key Advantages

• Redundancy: The 3500 rack’s design allows for the installation of a second power supply, providing a backup that will automatically take over if the primary unit fails. This feature is essential for ensuring continuous monitoring of critical machinery.
• Hot-Swappable Design: The module can be removed or inserted while the system is running without interrupting the operation of the rack, as long as a second power supply is installed. This simplifies maintenance and minimizes downtime.
• Wide Input Range: The “universal” AC power supply can accept a broad range of input voltages, making it versatile and suitable for a variety of global power standards and industrial environments.
• High Reliability: As a component of the Bently Nevada 3500 system, it is built to the highest industrial standards for reliability and performance in harsh conditions.

Important Notes

• System Specific: This module is not a standalone device. It is designed to function exclusively within the Bently Nevada 3500 Machinery Protection System and must be installed in the designated power supply slots.
• Compatibility: The 106M1079-01 Universal AC Power Supply is not compatible with older, legacy high-voltage or low-voltage AC power supplies and their corresponding input modules. Ensure you use the correct components for your specific system configuration.
• Proper Installation: Ensure the module is properly installed in its designated slot and secured in the rack to guarantee a stable connection and reliable power.

Product Applications

The 106M1079-01 is used in any industrial setting that utilizes a Bently Nevada 3500 system to monitor critical rotating machinery. Its applications include:

• Power Generation: Providing stable power to monitoring systems for gas turbines, steam turbines, and generators.
• Oil & Gas: Ensuring the reliable operation of monitoring systems for compressors, pumps, and other turbomachinery in refineries and pipelines.
• Petrochemical and Chemical Plants: Powering the systems that protect and monitor essential rotating equipment to prevent catastrophic failures.
• Heavy Manufacturing: Supporting machinery protection systems for large motors, fans, and other vital equipment where unplanned downtime is unacceptable.
