1420-V2P-ENT Allen-Bradley Control Unit

Description

1420-V2P-ENT Allen-Bradley Control Unit

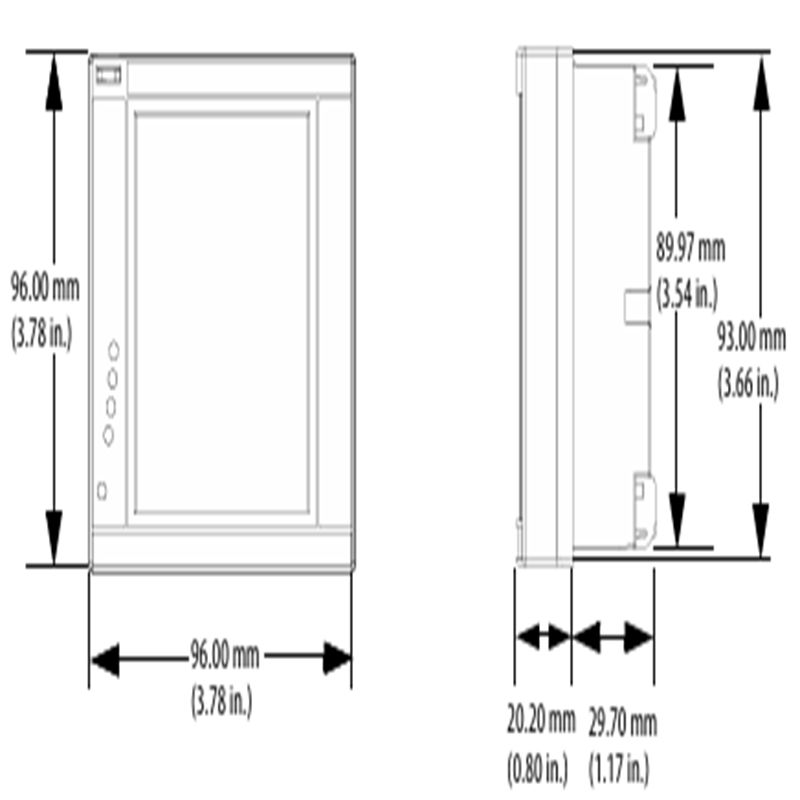

Product Dimensions：

Product Description

This power monitor provides real-time data on a wide range of electrical values, including voltage, current, power, energy consumption, power factor, and frequency. It’s a versatile tool that helps facility managers and engineers gain a deeper understanding of their energy usage. The device features a built-in LCD display, which allows for local viewing of data and configuration without the need for an external Human Machine Interface (HMI). It can be used for single, two, or three-phase systems.

Product Parameters

• Product Series
  Display Technology	Bul. 1420
  Isn, Secondary Current, Rated	LCD
  Isn, Secondary Current, Max	5A
  Input voltage, 1ph, nom (rms)	6A max
  Input Voltage, 1ph, min (rms)	400V AC nom (rms)
  Input Voltage, 1ph, max (rms)	160V AC min (rms)
  Input voltage, 3ph, nom (rms)	480V AC max (rms)
  Input Voltage, 3ph, min (rms)	600V AC nom (rms)
  Input Voltage, 3ph, max (rms)	277V AC min (rms)
  Number of Outputs	830V AC max (rms)
  Communications Protocols	2 qty
  Communication Protocol(s)	Digital Signal
  Accuracy Class, kWh, IEC 62053-21	EtherNet/IP
  Accuracy Class, kVARh, IEC 62053-23	EtherNet/OCPP
  Dielectric Strength	EtherNet/IP
  Mounting	1 IEC 62053-21
  Pollution Degree	2 IEC 62053-23
  Material, Body / Housing	4kV AC rms for 1 minute V AC
  Operating Temperature, Min	Panel Mount
  Operating Temperature, Max	55 °C max
  Storage Temperature, Min	ABSmaterial-25 °C min
  Storage Temperature, Max	55 °C max-30 °C min
  Installation Category	70 °C max
  Relative Humidity, Min	III
  Relative Humidity, Max	0%RH
  Terminal Type	90%RH

Product Advantages

• Comprehensive Data: The PowerMonitor 500 provides a complete picture of your electrical system’s health and energy usage, enabling you to identify inefficiencies and potential issues.
• Ease of Integration: With built-in EtherNet/IP and Modbus TCP/IP, it seamlessly integrates with Rockwell Automation’s Logix controllers and other industrial networks, simplifying data collection and analysis.
• Local Display: The on-device LCD screen provides instant, at-process data, eliminating the need for a separate HMI for basic monitoring and configuration.
• Cost-Effective: It serves as a cost-effective sub-metering option, allowing you to accurately measure energy consumption for specific equipment or areas of your plant.
• Energy Management: By providing detailed energy consumption data, the device supports energy management initiatives, helping to reduce costs and improve sustainability.

Important Notes

• Wiring: Always ensure the device is wired correctly and that the voltage and current ratings of your system match the specifications of the monitor.
• Safety: The device operates with high voltages. Installation and maintenance should only be performed by qualified personnel following all safety protocols.
• Communication Setup: Proper configuration of the EtherNet/IP or Modbus TCP/IP settings is crucial for network communication and data exchange.
• Application Environment: The device is designed for industrial control panel environments with an IP20 rating on the terminals, so it should be protected from dust, moisture, and other contaminants.

Product Applications

The 1420-V2P-ENT is a versatile tool used in a variety of applications where accurate power monitoring is essential:

• Energy Audits and Management: It’s used to conduct energy audits, track consumption patterns, and identify opportunities for energy savings.
• Industrial Plants: Installed in distribution cabinets to monitor power usage of key equipment like motors, pumps, and HVAC systems.
• Building Automation: Used in commercial buildings and facilities to monitor electrical substations and manage energy consumption across different zones.
• Process Control: Provides real-time electrical data to a control system, which can be used to optimize processes and detect anomalies.
• Sub-metering: It’s an excellent solution for sub-metering different departments, production lines, or individual machines to allocate energy costs accurately.
