1606-XL60DR Allen Bradley PLC module

Description

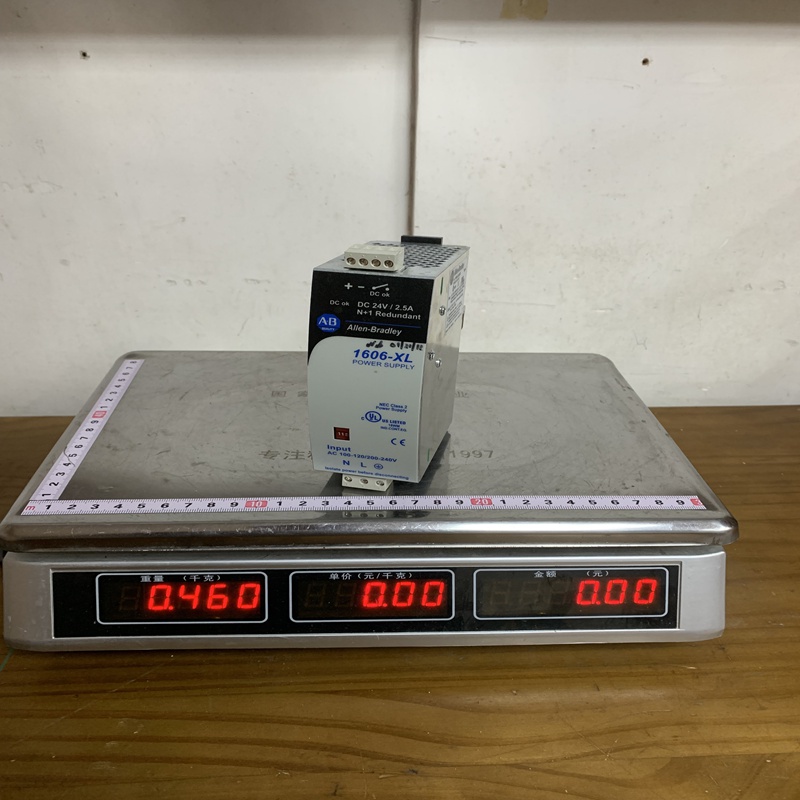

1606-XL60DR Allen Bradley PLC module

Product Dimensions：

Product Description

The 1606-XL60DR is a switched-mode power supply (SMPS) that converts standard AC line voltage into a stabilized 24V DC output. The “60” indicates a 60-watt power rating, making it an ideal choice for powering small PLC racks, HMI panels, or sensor networks where space is at a premium.

Product Parameters

Product Advantages

• Ultra-Slim Design: With a width of only 32mm, it saves significant horizontal space on the DIN rail compared to traditional power supplies.

• Redundancy Capable: The “DR” suffix indicates it is compatible with redundancy modules for high-availability systems.

• High Efficiency: Low heat dissipation reduces the need for aggressive cabinet cooling and extends the life of surrounding components.

• Global Certifications: Carries UL, cUL, CE, and GL approvals, making it suitable for international machine exports.

• Rugged Construction: Features vibration-resistant terminals and a robust housing designed for the electrical noise of factory floors.

Product Application

The 1606-XL60DR is commonly found in:

• Small PLC Systems: Powering Micro800 or compact CompactLogix controllers.

• Interface Panels: Providing 24V DC to HMI screens and push-button stations.

• Distributed I/O: Powering remote I/O nodes in a fieldbus network (EtherNet/IP, DeviceNet).

• Instrumentation: Supplying stable voltage to pressure transmitters, flow meters, and solenoid valves.

Important Notes & Precautions

• Derating: If operating in ambient temperatures above +60°C, the output current must be derated (check the manual for specific temperature curves).

• Ventilation: Maintain a minimum clearance of 40mm above and below the unit, and 5mm on the sides, to ensure natural convection cooling.

• Wiring: Use copper cables rated for at least 75°C. Ensure the ground (PE) terminal is connected to prevent EMI issues.

• Short Circuit Protection: The unit features “Hiccup” mode protection; it will automatically attempt to restart once a short circuit or overload is removed.
