170ADO35000 SCHNEIDER Discrete Output Module

Description

170ADO35000 SCHNEIDER Discrete Output Module

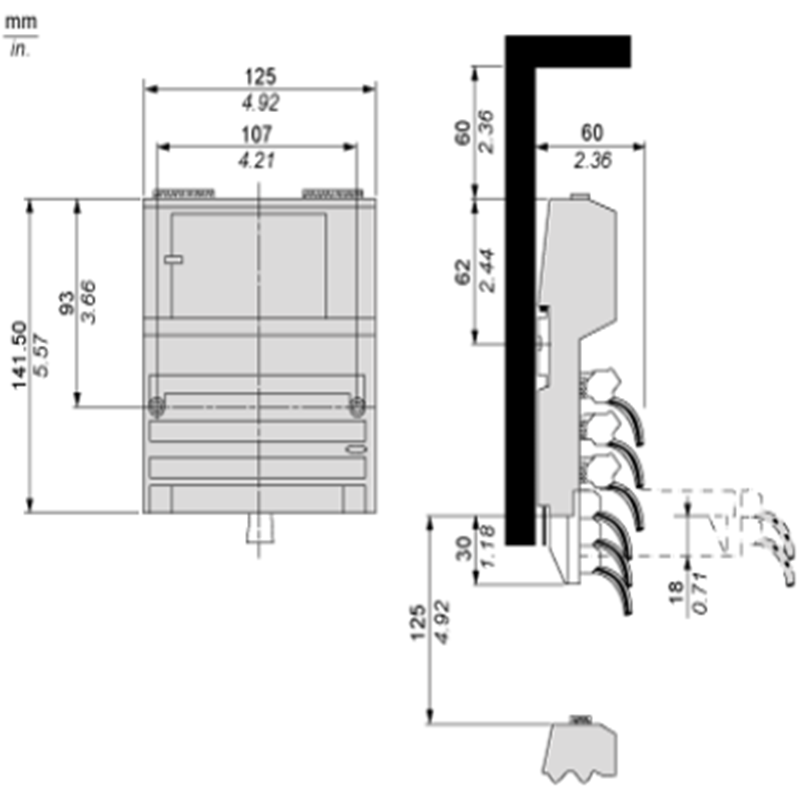

Product Dimensions：

Product Description:

The Schneider 170ADO35000 is a compact, monoblock discrete output base for the Modicon Momentum distributed I/O and control platform. It offers 32 solid-state (transistor) output channels that switch 24 V DC signals. These outputs are electronically protected against overloads and short circuits, ensuring robust and reliable operation in demanding industrial environments. The module features individual LED indicators for each channel, providing clear status visualization for easy diagnostics and troubleshooting. It’s designed for seamless integration into the modular Momentum system.

Product Parameters

Here are the key parameters for the Schneider 170ADO35000:

• Product Line: Modicon Momentum Automation Platform
• Product Type: Discrete Output Base DC (Solid State)
• Number of Discrete Outputs: 32 channels
• Output Type: Solid state switch (Transistor output)
• Output Voltage: 24 V DC
• Current per Channel: $\le 0.5$ A
• Discrete Output Current:
  • 16 A per module
  • 8 A per group (outputs are typically arranged in groups of 16)
• Maximum Leakage Current: < 1 mA at 24 V DC (at state 0)
• Surge Current: 5 A during 1 ms
• Maximum Voltage Drop: < 0.5 V at 0.5 A (at state 1)
• Output Overload Protection: Outputs are electronically protected
• Short-Circuit Protection: Yes (outputs are electronically protected)
• Response Time:
  • 0.1 ms from state 0 to state 1 (Turn-on)
  • 0.1 ms from state 1 to state 0 (Turn-off)
• Isolation between Channels and Bus: 500 V AC
• Power Dissipation: 6 W typical, 7.5 W maximum
• Current Consumption: 250 mA at 24 V DC
• Local Signaling: 32 LEDs for individual channel status
• Electrical Connection: Multiple connectors for removable terminal blocks (for field devices and power supply)
• Dimensions (W x H x D): 125 mm x 141.5 mm x 47.5 mm (approximately 4.92 in x 5.57 in x 1.87 in)
• Net Weight: 0.21 kg (0.47 lb)
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Storage Temperature: -40°C to 85°C (-40°F to 185°F)
• Relative Humidity: 95% without condensation
• Operating Altitude: $\le 5000$ m ($\le 16404.2$ ft)
• Certifications: CE, UL, CSA, FM Class 1 Division 2

Product Advantages

• High Output Density: Provides 32 discrete outputs in a single compact module, maximizing space efficiency in control cabinets.
• Solid-State Reliability: Utilizes solid-state switching (transistors) for outputs, offering higher reliability, longer lifespan, and faster switching speeds compared to mechanical relays.
• Electronic Protection: Built-in electronic protection for overloads and short circuits on each output safeguards the module and connected devices, reducing the need for external fusing for individual channels.
• Fast Response Time: Extremely fast response times (0.1 ms) enable precise and timely control of output devices, suitable for high-speed applications.
• Clear Diagnostics: 32 individual LEDs provide immediate visual status of each output channel, greatly simplifying troubleshooting and maintenance.
• Modular Design: As part of the Modicon Momentum platform, it allows for highly flexible and scalable automation systems, easily integrating with other I/O and communication modules.
• Industrial Durability: Designed to withstand harsh industrial environments, ensuring reliable performance over a wide temperature range and resistance to electromagnetic interference (EMI) and electrostatic discharge (ESD).
• Ease of Wiring: Utilizes removable terminal blocks, simplifying wiring, installation, and replacement processes.

Precautions

When installing and operating the Schneider 170ADO35000, keep these critical precautions in mind:

• Qualified Personnel: Only qualified and authorized personnel familiar with electrical systems, industrial automation, and safety procedures should install, wire, configure, and maintain this module.
• Power Isolation: Always ensure all power sources to the Modicon Momentum system and associated output devices are completely disconnected and locked out before performing any work. Verify zero voltage using a properly rated voltage sensing device.
• Wiring Practices:
  • Adhere to all local and international electrical codes and wiring practices.
  • Ensure proper sizing of wires for the expected current load of connected devices.
  • While outputs are electronically protected, consider external fusing for groups of outputs or critical devices for enhanced protection.
• Power Supply: Provide a stable and correct 24 V DC power supply to the module and ensure it can handle the combined current draw of all connected output devices.
• Environmental Conditions: Operate the module strictly within the specified temperature and humidity ranges. Avoid exposure to direct sunlight, excessive vibration, shock, or corrosive atmospheres.
• Mounting: Securely mount the module within a control cabinet with adequate ventilation to prevent overheating.
• Grounding: Ensure proper system grounding according to local electrical codes and Schneider Electric’s recommendations to enhance safety and reduce electrical noise.
• Load Compatibility: Ensure that the current and voltage requirements of the connected output devices do not exceed the module’s specifications per channel or per group. Avoid connecting inductive loads directly without appropriate suppression (e.g., flyback diodes for DC coils).
• Documentation: Always refer to the official Schneider Electric Modicon Momentum user manual and the specific datasheet for the 170ADO35000 for detailed wiring diagrams, configuration settings, and safety instructions.

Product Applications

The Schneider 170ADO35000 is widely used in various industrial automation applications where reliable and high-density digital output control is necessary. Common applications include:

• Discrete Manufacturing: Controlling solenoids, contactors, motor starters, indicator lights, and alarms on assembly lines, packaging machines, and material handling systems.
• Automated Machinery: Providing outputs for robotic cells, CNC machines, and specialized automation equipment to activate actuators and signals.
• Building Automation Systems (BAS): Controlling lighting systems, ventilation fans, pumps, and security devices in commercial and industrial buildings.
• Process Control (On/Off Control): Actuating valves, pumps, and other discrete devices in batch processes or non-continuous operations in industries like water/wastewater, food and beverage, and chemical.
• Conveyor Systems: Managing the start/stop of conveyor motors, diverters, and sorting mechanisms.
• Test Benches: Providing control signals to activate components during product testing and validation.
