170TNT11000 SCHNEIDER I/O Expansion Module

Description

170TNT11000 SCHNEIDER I/O Expansion Module

Product Dimensions：

Product Description:

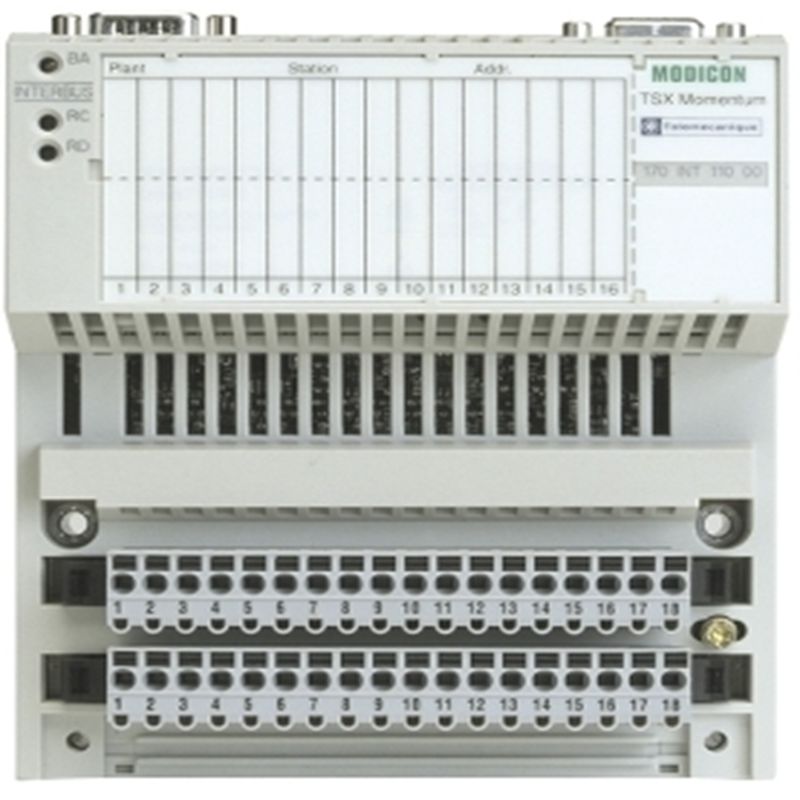

The Schneider Modicon Momentum 170INT11000 is an Interbus communication adaptor designed for the Modicon Momentum automation platform. It provides seamless integration of Modicon Momentum I/O modules into an Interbus network, enabling distributed control architectures. This adaptor plugs directly onto a Momentum I/O module base, allowing the I/O points to communicate with an Interbus master controller. It’s a key component for extending control capabilities in various industrial applications.

Product Parameters

Product Advantages

• Distributed Control: Enables the implementation of distributed I/O architectures, reducing wiring and simplifying system design.
• Modular Flexibility: Part of the highly flexible Modicon Momentum platform, allowing easy expansion and customization of I/O systems by snapping together various components.
• Interbus Connectivity: Provides reliable and efficient communication over the Interbus protocol, a common standard in industrial automation.
• Ease of Integration: Designed for straightforward integration with other Modicon Momentum components, simplifying installation and configuration.
• Robust for Industrial Environments: Built to withstand harsh industrial conditions with its IP20 rating and wide operating temperature range.
• Cost-Effective Solution: Offers a flexible and scalable solution for I/O expansion without requiring a completely new PLC system.

Precautions

• Correct Installation: Always ensure the adaptor is correctly seated and secured onto the Modicon Momentum I/O base.
• Wiring: Use shielded twisted pair cables for Interbus communication to minimize electromagnetic interference (EMI) and ensure signal integrity. Adhere to Interbus wiring guidelines, including proper termination.
• Power Supply: Ensure the I/O base providing power to the adaptor receives a stable and correct 24V DC supply.
• Environmental Conditions: Operate the module within the specified temperature and humidity ranges. Avoid exposure to excessive vibration, shock, or corrosive atmospheres.
• Grounding: Proper grounding of the system and shielding is crucial for optimal performance and protection against electrical noise.
• Firmware Compatibility: Ensure any connected Interbus master or controller’s firmware is compatible with the adaptor’s functionality.
• Qualified Personnel: Installation, configuration, and maintenance should only be performed by qualified and experienced personnel who are familiar with industrial control systems and electrical safety standards.
• Documentation: Always refer to the official Schneider Electric documentation (user manuals, datasheets) for the most accurate and detailed information regarding installation, wiring, and configuration.

Product Applications

The Schneider Modicon Momentum 170INT11000, as part of the Momentum platform, is ideal for a wide range of industrial automation applications that benefit from distributed I/O and Interbus communication:

• Material Handling: Conveyor systems, automated storage and retrieval systems (AS/RS), and sorting machines.
• Simple Machine Control: Packaging machines, labeling equipment, and assembly lines.
• Building Automation: HVAC control, lighting systems, and access control in commercial and industrial buildings where distributed I/O is beneficial.
• Water and Wastewater Treatment: Monitoring and controlling pumps, valves, and sensors in distributed processing units.
• Food and Beverage: Process control and automation in production lines, including conveying, mixing, and packaging.
• Textile Machines: Control of various stages in textile production.
• Infrastructure and Energy: Distributed monitoring and control in power distribution, utilities, and other infrastructure projects.
