1715-AENTR Allen Bradley Output module

Description

1715-AENTR Allen Bradley Output module

Product Dimensions：

Product Description

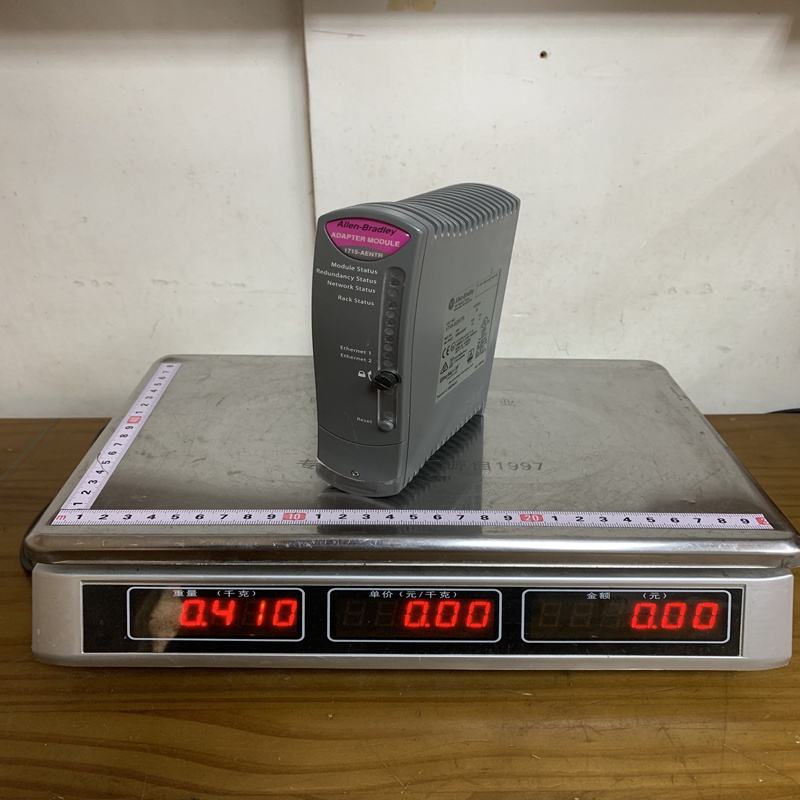

The 1715-AENTR is a communication interface module that connects a 1715 Redundant I/O system to a ControlLogix® controller over an EtherNet/IP network. Its defining feature is its Dual-Port Ethernet capability, which supports Device Level Ring (DLR), Linear, and Star topologies.

When used in a redundant pair (two modules installed in a 1715-AENTR adapter base), it provides “fault-tolerant” communication. If one adapter or cable fails, the other takes over instantly without interrupting the I/O data flow.

Product  Parameters

Product Advantages

• High Availability: Supports a “fail-operational” architecture. The module can be hot-swapped without shutting down the system.

• Network Resiliency: Supports DLR (Device Level Ring), which allows the network to recover nearly instantaneously if a single point of the ring is severed.

• Extreme Environment Ready: Features a wide operating temperature range and is Conformal Coated as standard to protect against moisture and chemical contaminants.

• Simplified Configuration: No complex programming is required to set up redundancy; it is handled natively by the hardware and the Studio 5000 Logix Designer® environment.

• Diagnostic Transparency: Extensive LED indicators provide immediate visual status of the network, module health, and redundancy state.

Safety and Maintenance

• Redundant Pairing: For full redundancy, you must use two 1715-AENTR modules installed in a 1715-A2A (2-slot) or similar adapter base.

• Firmware Matching: In a redundant pair, both 1715-AENTR modules must have the exact same firmware version to ensure proper synchronization and failover.

• IP Address Configuration: The IP address can be set via DHCP or rotary switches. Ensure the switches are correctly set before the module is powered.

• Cabling: Use shielded Category 5e (or higher) cables to ensure reliable communication in high-noise industrial environments.

Typical Applications

• Oil & Gas: Control systems for wellheads, pipelines, and offshore platforms where downtime is costly and dangerous.

• Chemical Processing: Critical process loops that must maintain a “safe state” or continuous operation.

• Power Generation: Monitoring and control of turbines and auxiliary plant systems.

• Water/Wastewater: Remote pumping stations and treatment facilities requiring high reliability.

• SIL 2 Rated Systems: Used in safety-related applications that require a higher level of integrity than standard I/O.
