1746-NIO4V Allen-Bradley Power module

Description

1746-NIO4V Allen-Bradley Power module

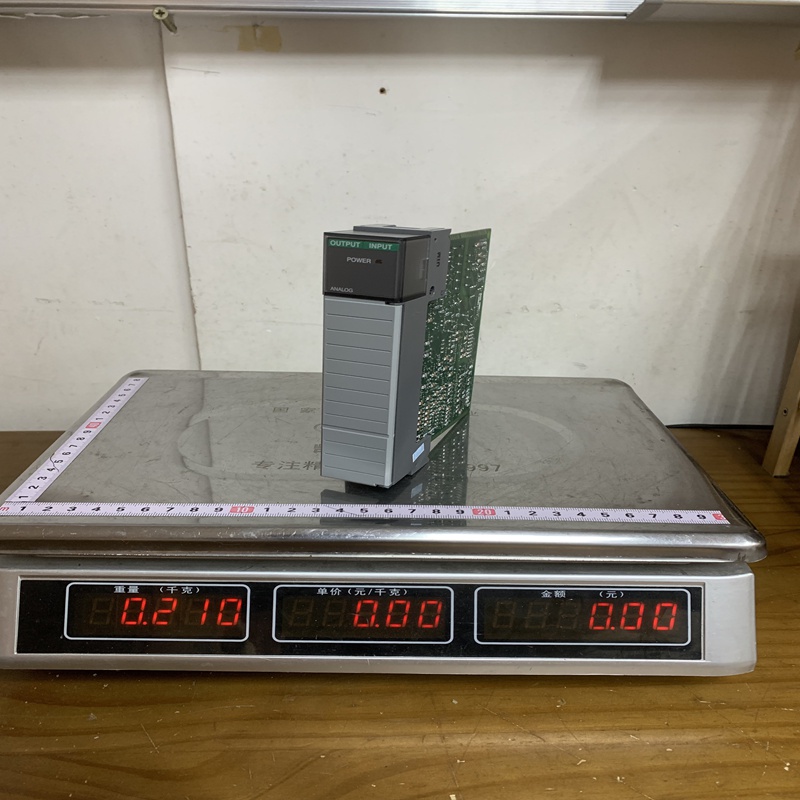

Product Dimensions：

Product Description

The 1746-NIO4V is a SLC 500 Analog Combination I/O Module. It features a hybrid design, offering both input and output channels within a single slot. This module is specifically engineered to interface with voltage-based analog signals, making it ideal for systems where space in the chassis is at a premium.

Product Parameters

Below are the core technical specifications for the 1746-NIO4V:

Product Advantages

• Space Efficiency: By combining 2 inputs and 2 outputs in a single-slot module, it reduces the overall footprint of the PLC system.

• High Precision: With 16-bit input resolution, it provides highly accurate data for sensitive industrial processes.

• Fast Response: The module is designed for rapid signal conversion, ensuring minimal lag between the physical process and the controller.

• Seamless Integration: Fully compatible with the Allen-Bradley SLC 500 chassis and RSLogix 500 programming software.

Safety & Maintenance (Precautions)

Caution: Always disconnect power from the SLC 500 chassis before installing or removing modules to prevent equipment damage or personal injury.

• Wiring: Use shielded twisted-pair cables to minimize electromagnetic interference (EMI). Ensure the shield is grounded at one end only.

• Voltage Limits: Do not exceed the $\pm 10$V DC input/output range, as this can cause permanent damage to the module circuitry.

• Heat Dissipation: Ensure the rack is properly ventilated. The module generates heat during operation, especially when multiple channels are active.

• Electrostatic Discharge (ESD): Handle the module by its edges and avoid touching the backplane connector pins.

Typical Applications

The 1746-NIO4V is widely used in applications requiring precise voltage regulation and monitoring, such as:

• Speed Control: Interfacing with Variable Frequency Drives (VFDs) to control motor speeds.

• Valve Positioning: Providing feedback and control for proportional valves in hydraulic or pneumatic systems.

• Temperature Regulation: Working with transmitters to monitor and adjust heating elements.

• Pressure Monitoring: Capturing data from pressure transducers in manufacturing pipelines.
