1756-PB75/1756-PA72 Allen-Bradley ControlLogix Standard DC Power Supply

Description

1756-PB75/1756-PA72 Allen-Bradley ControlLogix Standard DC Power Supply

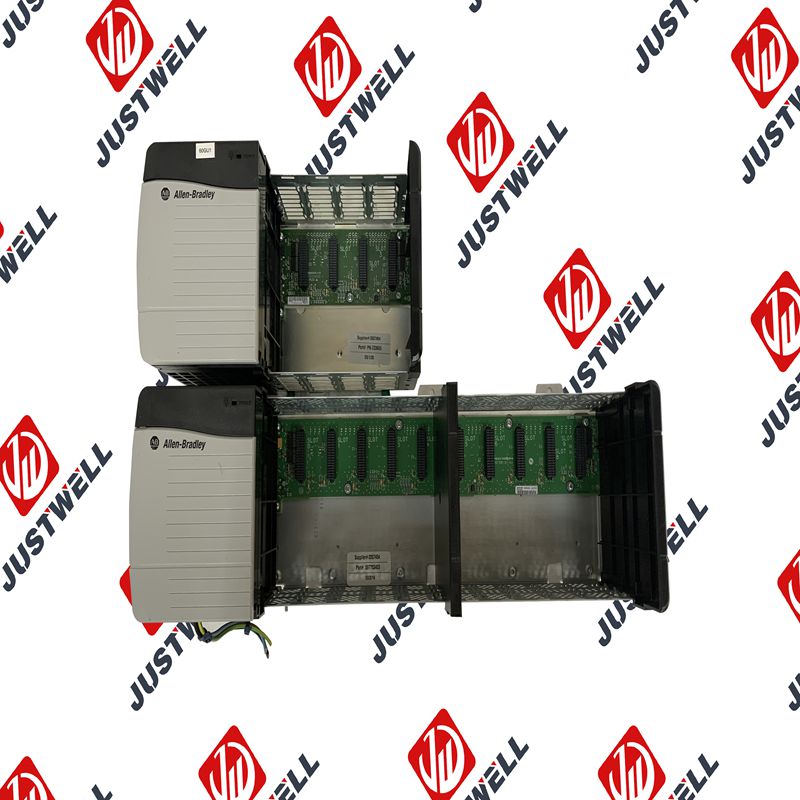

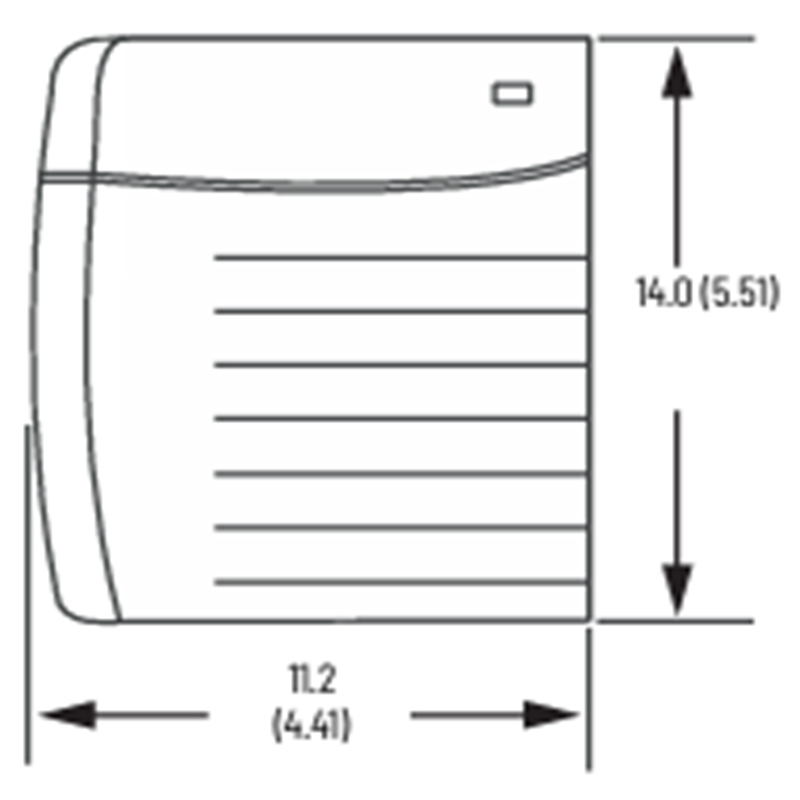

Product Dimensions：

Product Description

The Allen-Bradley 1756-PB75 is a standard DC power supply module specifically designed for the ControlLogix chassis. It takes a direct current (DC) input and converts it into the various DC voltages (1.2V, 3.3V, 5.1V, and 24V) needed to power all the modules—like the controller, I/O, and communication modules—installed in the chassis. This open-style module is an ideal choice when you have a DC power source (typically 24V DC) available in your industrial setup.

Product Parameters

• Catalog Number: 1756-PB75
• Series: ControlLogix Standard DC Power Supply
• Input Voltage Range: 18…32V DC (Nominal 24V DC)
• Max Input Power: 95W
• Max Output Power: 75W @ 0…60°C (32…140°F)
• Output Voltages & Current Capacity:
  • 1.2V DC @ 1.5A
  • 3.3V DC @ 4A
  • 5.1V DC @ 13A
  • 24V DC @ 2.8A
• Max Inrush Current: 30A
• Hold Up Time: 35-40ms (depending on input voltage)
• Isolation Voltage: 250V (continuous) reinforced insulation between power input and backplane
• Operating Temperature: 0…60°C (32…140°F)
• Mounting: Plugs into the left-most slot of a 1756 ControlLogix chassis
• Compatible Chassis: 1756-A4, 1756-A7, 1756-A10, 1756-A13, 1756-A17 (Series B and C)
• Indicators: Status LEDs for easy diagnostics
• Certifications: CE, CSA, cUL, KC, MARINE, NRTL, RCM, UL

Product Advantages

• Reliable DC Power: Provides stable and regulated DC power, crucial for the dependable operation of your ControlLogix system.
• Built for Industrial Use: Its robust design ensures durability and long-term performance in demanding industrial environments.
• Seamless Integration: Designed specifically for the ControlLogix platform, guaranteeing full compatibility and simple installation.
• Quick Diagnostics: On-board status LEDs allow for fast visual checks, helping you troubleshoot issues quickly.
• Hot Swappable: You can replace this module without powering down the entire chassis, minimizing downtime during maintenance.
• Comprehensive Output: Supplies all necessary voltage levels to the ControlLogix backplane from a single unit.

Precautions

• Enclosure is a Must: As an open-style module, it must be installed within a suitable, flame-retardant enclosure to protect it from environmental factors and prevent accidental contact with live components.
• Input Voltage Matters: Ensure your input DC voltage stays strictly within the 18-32V DC range to prevent damage to the power supply.
• Mind the Power Budget: Always calculate the total power consumption of all modules in your chassis and ensure it doesn’t exceed the 1756-PB75’s maximum output of 75W.
• ESD Sensitive: This device is sensitive to electrostatic discharge. Always follow ESD precautions, like wearing a grounding wrist strap, when handling the module.
• Professional Installation: Only qualified personnel should install, adjust, or maintain this equipment, following all applicable electrical codes and safety practices.
• Proper Grounding: Ensure the chassis and power supply are correctly grounded to prevent shock hazards and ensure proper operation.
• Avoid UV Exposure: This module is not resistant to direct sunlight or other UV radiation sources.

Product Applications

The 1756-PB75 is ideal for any ControlLogix system where a DC power source is available or preferred. Common applications include:

• Industrial Automation: Powering ControlLogix controllers, I/O, and communication modules in manufacturing and process control.
• Machine Control: Providing power for ControlLogix systems in standalone machinery or integrated production lines.
• Distributed Control Systems: Used in distributed I/O racks where local DC power is readily accessible.
• Battery-Backed Systems: Perfect for applications where a primary DC power source or battery backup is used to maintain operation during power interruptions.
