1762-OB16 Allen-Bradley Digital Output Module

Description

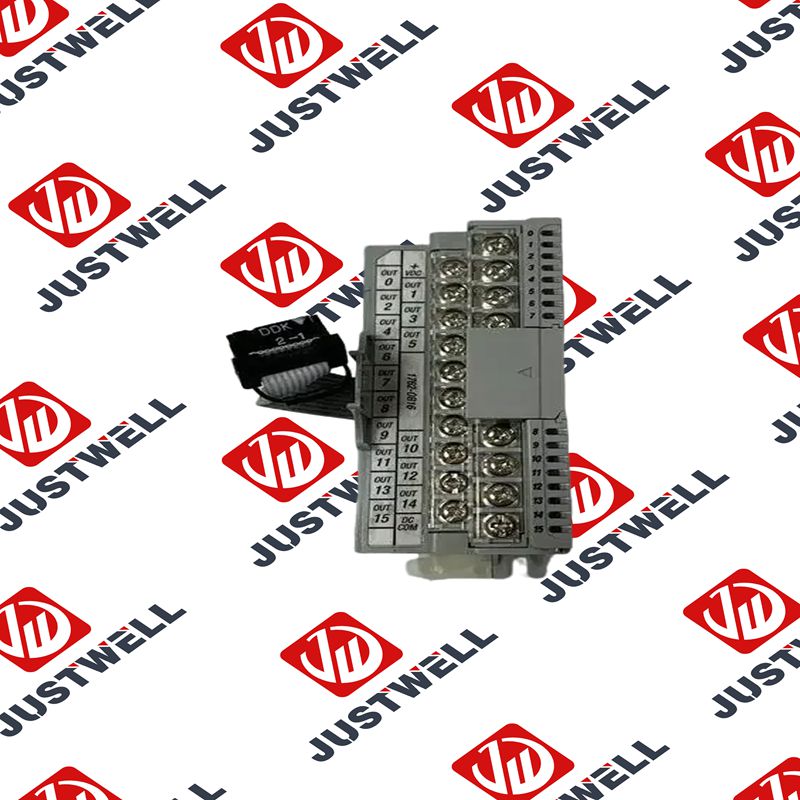

1762-OB16 Allen-Bradley Digital Output Module

Product Dimensions：

Product Description

The Allen-Bradley 1762-OB16 is a 16-point, 24V DC digital output module designed for use with the MicroLogix 1200 programmable logic controller (PLC). This module allows your MicroLogix 1200 controller to send discrete (on/off) signals to various field devices in your industrial system. It features 16 individual output points, capable of switching 24V DC loads. The “OB” in its catalog number signifies it’s an “Output” module, and “B” often indicates a sinking output, meaning it provides a path for current to flow from the load back to the power supply’s common. It’s an essential component for controlling solenoids, indicator lights, small relays, and other discrete actuators.

Product Parameters

• Catalog Number: 1762-OB16
• Series: MicroLogix 1200 Digital DC Output Module
• Output Type: Digital (Discrete), Sinking (NPN)
• Number of Outputs: 16 points
• Voltage Category: 24V DC
• Operating Voltage Range: 10V DC to 30V DC
• Output Current:
  • 0.5A (500 mA) per point, continuous
  • 4.0A (4000 mA) per module, continuous
• Off-State Leakage Current: 0.5 mA max.
• On-State Voltage Drop: Less than 0.2V DC @ 0.5A
• Module Power Consumption:
  • 200 mA @ 5V DC (from controller backplane)
  • 100 mA @ 24V DC (from external field power)
• Wiring Connection: Removable screw-type terminal block for easy field wiring.
• Module Location: Attaches directly to the right side of a MicroLogix 1200 controller.
• Isolation: 1200V AC (for 1 minute) between output circuits and logic.
• Operating Temperature: 0°C to 55°C (32°F to 131°F)
• Indicators: Individual LED indicators for each output point show its ON/OFF status.
• Dimensions (Approximate): Roughly 90mm (H) x 40mm (W) x 87mm (D) – typical for MicroLogix 1200 expansion modules.

Product Advantages

• High Output Density: Provides 16 output points in a compact form factor, maximizing the number of devices you can control from your MicroLogix 1200 system without requiring excessive space.
• Reliable Control: Delivers robust and dependable switching capabilities for 24V DC loads, ensuring precise control of your industrial equipment.
• Easy Integration: Designed for seamless attachment to MicroLogix 1200 controllers, making system expansion and wiring straightforward.
• Visual Status: Individual LED indicators for each output provide immediate visual feedback on the status of controlled devices, aiding in rapid troubleshooting.
• Removable Terminal Block: Simplifies field wiring and allows for easy module replacement without rewiring, reducing maintenance time.
• Cost-Effective Solution: Offers an economical way to expand the output capabilities of MicroLogix 1200 systems.

Precautions

• Output Current Limits: Ensure that the current draw of each connected load does not exceed 0.5A per point and that the total current for the module does not exceed 4.0A. Exceeding these limits can damage the module.
• External Power Required: The outputs require an external 24V DC power source for the field devices. This power supply must be adequately sized for all connected loads.
• Wiring Best Practices: Always follow proper industrial wiring standards. Use the correct wire gauge and ensure all connections are secure to prevent loose wires and intermittent operation.
• Load Type: The 1762-OB16 is a digital output module designed for discrete (on/off) loads. Do not connect analog or continuous control devices directly.
• Environmental Conditions: Install the module within a suitable enclosure that protects it from excessive dust, moisture, vibration, and extreme temperatures to ensure optimal performance and longevity.
• ESD Protection: Always follow Electrostatic Discharge (ESD) precautions when handling the module to prevent damage to sensitive electronic components.

Product Applications

The Allen-Bradley 1762-OB16 is widely used in various industrial automation applications where discrete 24V DC output control is needed with MicroLogix 1200 PLCs. Common applications include:

• Small Machine Control: Activating solenoids on pneumatic cylinders, turning indicator lights on/off, controlling small motor starters, and engaging relays in packaging machines, conveying systems, and assembly equipment.
• Process Control: Controlling discrete valves, alarm annunciators, and pump start/stop commands in small-scale process applications.
• Building Automation: Switching lighting circuits, controlling access control components, or managing small HVAC dampers.
• Material Handling: Activating diverters, stops, and clamps on conveyor lines.
• Test Fixtures: Controlling various actuators and indicators in automated test setups.
