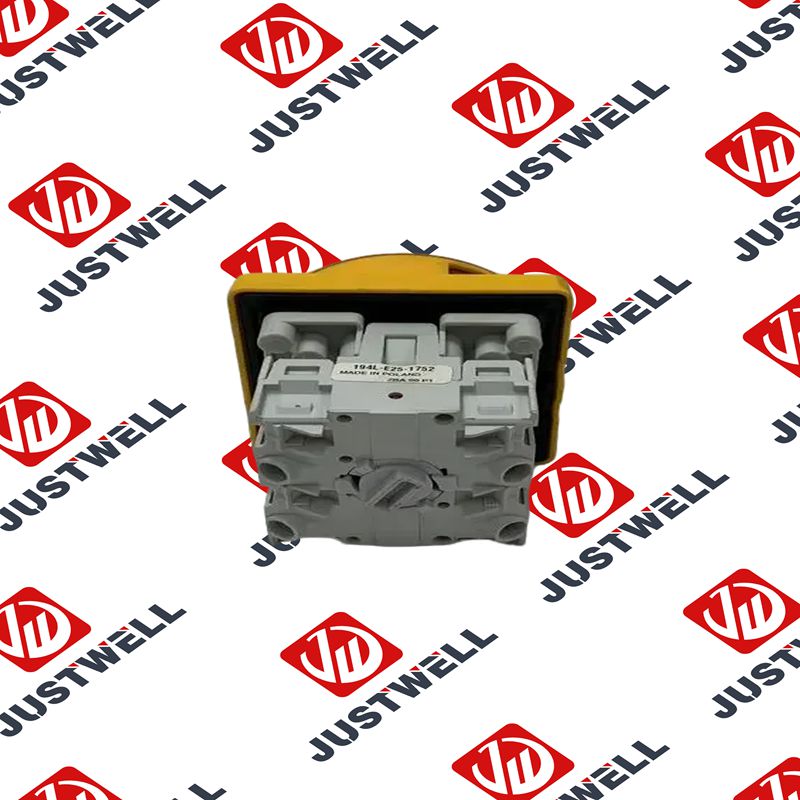

194L-E25-1752 Allen-Bradley Load Switch

Description

194L-E25-1752 Allen-Bradley Load Switch

Product Dimensions：

Product Description:

• The A-B 194L-E25-1752 is a 25A Load Switch from the Allen-Bradley 194L Series, designed primarily for motor and load disconnect applications. It features a 3-pole configuration with door-mounting capabilities and includes a black rotary handle. The switch ensures reliable disconnection of power circuits and is compliant with global industrial standards.

  Product Parameters

  Number of poles	2
  Rated permanent current Iu	25 A
  Model	On/Off switch
  Rated impulse voltage (Uimp)	6 kV
  Switch size	25 A
  Power lost	0.9 W
  Fuse size, max	80 A per UL/CSA
  Rated voltage (Ue)	690V per IEC-947
  Rated thermal current (Ith)	30A @ 40°C per IEC-947
  Rated thermal current (Ithe)	25A @ 60°C per IEC-947
  Conditional rated short circuit current	5 kA (gL characteristic)
  Rated breaking capacity	176A @ 380V, 0.45 [cos j]
  Back-up fuse, max	80 A (gG characteristic) per UL/CSA
  Rated short-time current	0.75 kArms for 1 s (gL characteristic)
  Strongest series fuse	25 A (not in enclosure, gL characteristic)
  Standard motor DOL rating	3-poles, 3-phase: 19.2A @ 120V (similar to AC-3) per UL (CSA)
  Rated making/breaking capacity (= 4 x Ie)	6 contacts in series: 58.2A @ 115.5V (DC-23A, DC-3, DC-5 for inductive loads, T ≤7.5 ms)
  Rated making/breaking capacity (= 1.5 x Ie)	8 contacts in series: 33A @ 201.6V (1.05 x rated voltage), DC-21A (for resistive loads, T = 1 ms), Ue max = 600V
  Ampere rating	25 A (suitable for switching off-load (AC-20) above 660V, but only upto 660V for switches with screws at the rear)
  Rated making/breaking capacity (= 1.1 x Ie)	8 contacts in series: 8.8A @ 231V (1.1 x rated voltage), DC-21A (for inductive loads, T = 50 ms), Ue max = 600V
  Rated power (Pe)	6 contacts in series: 1.60 kW @ 110V (DC-23A, DC-3, DC-5 for inductive loads, T ≤1 ms)
  Rated current (Ie)	8 contacts in series: 8A @ 240V, DC-21A (for inductive loads, T = 50 ms)
  Type of electrical connection of main circuit	Screw connection
  Electrical switch rate	120 ops/h
  Short circuit prospective fault current, max	5 kA per UL/CSA
  Electrical switching rate	120 ops/h per UL/CSA

Product Advantages

• Robust and Reliable: Built by Allen-Bradley (Rockwell Automation), a leader in industrial automation, ensuring high quality and durability.
• Versatile Mounting: Designed for easy front/door mounting, offering flexibility in panel design.
• Safety Features: Features IP20 finger-safe terminals to enhance safety during installation and operation.
• High Load Capacity: Capable of handling significant loads, suitable for motor control and general load switching.
• Durability: High mechanical life ensures long-term performance and reduced maintenance.
• Customizable: The separate actuator selection allows for tailored solutions based on specific application requirements (e.g., color, padlockability).

Precautions

• Actuator Required: Remember that the 194L-E25-1752 is an open switch and requires a separate actuator (handle) for operation. Ensure the correct actuator is chosen and properly installed.
• Enclosure Protection: While the front side can achieve IP66 with the right handle, the switch body itself is IP20. It must be installed within an appropriate enclosure to protect it from environmental factors like dust and moisture if an IP rating higher than IP20 is required for the entire assembly.
• Electrical Safety: Always adhere to proper electrical safety procedures during installation, wiring, and maintenance. Disconnect power before working on the switch.
• Correct Wiring: Ensure correct wiring practices according to local electrical codes and the product’s documentation to prevent damage and ensure safe operation.
• Load Compatibility: Verify that the load being switched is within the specified current and power ratings of the device.

Product Applications

The Allen-Bradley 194L-E25-1752 load switch is typically used in various industrial applications where manual switching of power to machinery or circuits is required. Common applications include:

• Motor Disconnect: Suitable as an “at-motor disconnect” for small to medium-sized motors, providing a local means to cut power for maintenance or emergency stops.
• Main Circuit Breaker / Isolator: Used as a main switch for small panels or individual machine circuits to isolate power.
• Control Panel Power Disconnect: Providing a clear ON/OFF control for specific sections of a control panel.
• Lighting Circuits: Switching power for industrial lighting systems.
• Heating Elements: Controlling power to resistive heating elements.
• HVAC Systems: Used in the control circuits of heating, ventilation, and air conditioning systems.
