1MYN569697-E ABB Communication module

Description

1MYN569697-E ABB Communication module

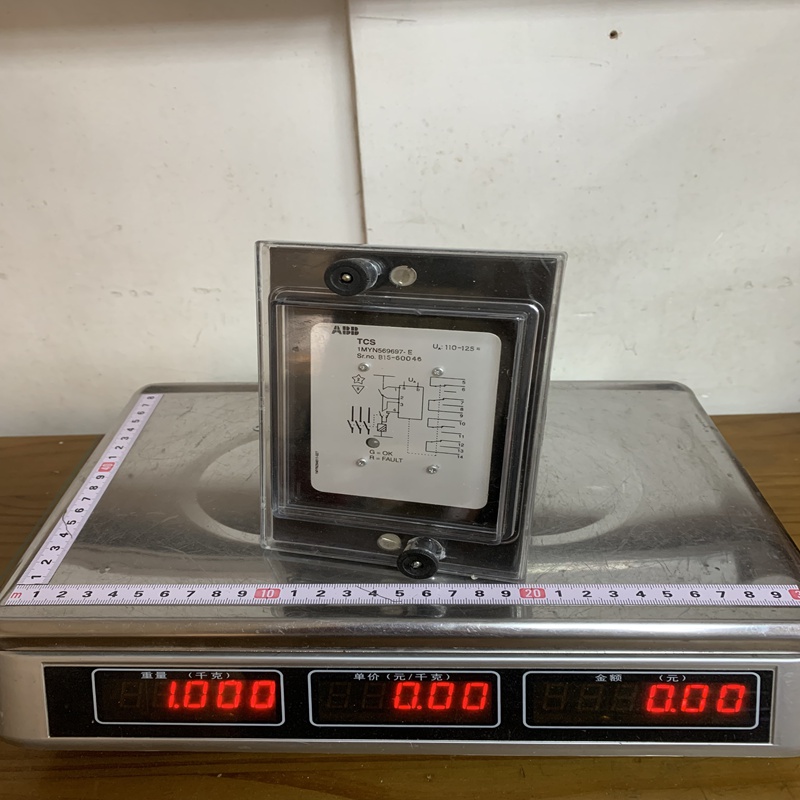

Product Dimensions：

Product Description

The ABB 1MYN569697-E is a high-performance Pulse Transformer or Interface Module used in industrial power conversion systems. It is designed to provide electrical isolation and precise signal transmission between control electronics and high-power semiconductors (like thyristors or IGCTs).

Product Parameters

While specific ratings can vary based on the exact revision of the hardware, the general specifications for this series include:

Product Advantages

• Galvanic Isolation: Provides superior protection for low-voltage control circuits against high-voltage surges in the power section.
• Signal Integrity: Engineered to minimize pulse distortion, ensuring the power semiconductors switch accurately and efficiently.
• Compact Durability: Built with high-grade industrial materials to withstand the electromagnetic interference (EMI) common in heavy industrial environments.
• Plug-and-Play Compatibility: Specifically designed to integrate seamlessly with ABB UNITROL excitation systems and MEGATROL power packages.

Key Applications

This component is vital in sectors where precise power control is non-negotiable:

1. Excitation Systems: Used in synchronous generators within power plants to control the rotor current.
2. Large Variable Speed Drives (VSD): Managing high-power motor control in mining, oil, and gas.
3. Static Frequency Converters: Found in railway power supplies and grid stabilization units.
4. Rectifiers: Used in aluminum smelting and chemical electrolysis processes.

Important Considerations (Precautions)

• Handling: These units contain sensitive magnetic cores. Avoid dropping them or subjecting them to heavy mechanical shock, as this can alter the inductance properties.
• Wiring Polarity: Ensure correct polarity during installation. Incorrect pulse phase can lead to the failure of the connected power semiconductor (thyristor).
• Environmental Protection: While rugged, the module should be installed in a cabinet with an appropriate IP rating to prevent dust buildup or moisture ingress.
• Professional Installation: High-voltage equipment is dangerous. Installation and maintenance should only be performed by qualified personnel familiar with ABB power electronics.
