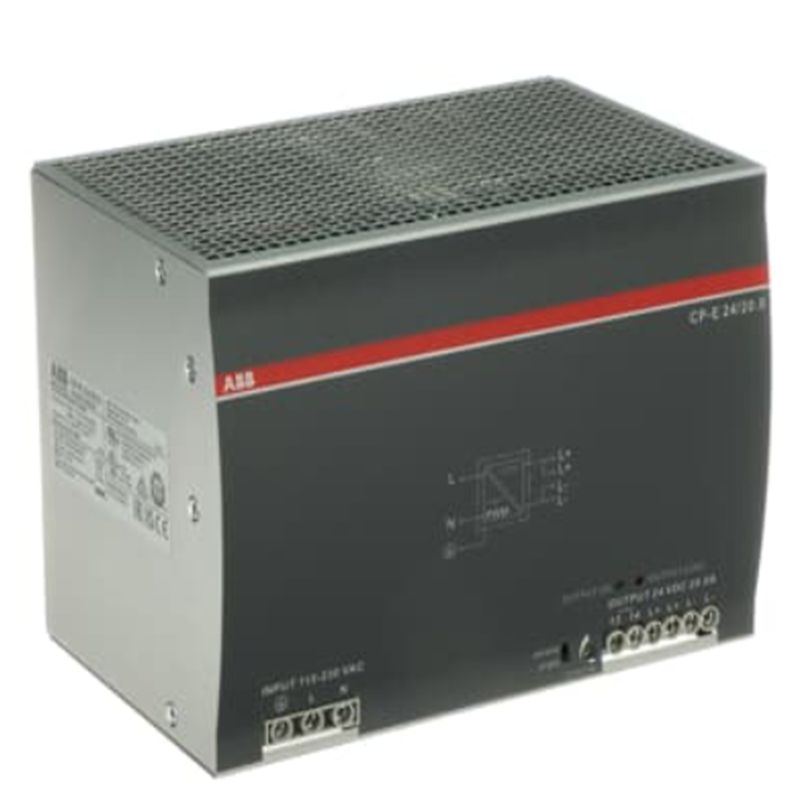

1SVR427026R0000 ABB Power supply module

Description

1SVR427026R0000 ABB Power supply module

Product Dimensions：

Product Overview

The ABB 1SVR427026R0000 is part of ABB’s CP-C series of power supplies. It’s an AC-DC converter that provides a regulated 24 VDC output. This unit is built for demanding industrial environments and features a wide input voltage range, power factor correction, and options for enhanced reliability.

Product Parameters

• Manufacturer Part Number: 1SVR427026R0000
• Series: CP Series (specifically CP-C 24/20.0)
• Input Voltage Range:
  • AC: 85-264 VAC (rated input voltage 110-240 VAC)
  • DC: 100-350 VDC
• Output Voltage: 24 VDC
• Output Current: 20 A
• Output Power: 480 W
• Output Voltage Adjustable Range: 22 to 28 VDC
• Configuration: Enclosed
• Mounting Type: DIN Rail Mount
• Operation: Power Factor Correction (PFC) according to EN 61000-3-2
• Output Characteristic: U/I (Voltage/Current) with a power reserve of up to 10%
• Terminals: Pluggable connecting terminals
• Enclosure Material: Aluminum
• Dimensions (Approximate):
  • Height: 5.12 inches (130 mm)
  • Width: 8.01 inches (203.5 mm)
  • Length: 5.35 inches (135.5 mm)
• Weight: Approximately 7.44 lbs (3.413 kg)
• Operating Ambient Air Temperature: -25 to +70 degrees Celsius
• Storage Temperature: -40 to +85 degrees Celsius
• Standards/Certifications: IEC/EN 60950-1, IEC/EN 61204, UL 508, UL 1604, UL 60950, CAN/CSA C22.2 No.107.1, CAN/CSA C22.2 No.213, CAN/CSA C22.2 No.60950.

Product Advantages

• Wide Input Voltage Range: Allows for flexible use in various power systems (AC or DC) and areas with fluctuating mains voltage.
• High Reliability: Designed for harsh industrial environments, ensuring stable operation. Features a reliable construction and generous capacitors for mains buffering (at least 40 ms), making it suitable for high-fluctuation networks and battery-powered plants.
• Power Factor Correction (PFC): Improves energy efficiency and reduces harmonic distortions in the power grid.
• Adjustable Output Voltage: Provides flexibility to fine-tune the output voltage to specific application requirements.
• Parallel Operation Capability: Supports parallel connection for capacity increase or redundancy, enhancing system uptime and reliability.
• Compact DIN Rail Mount Design: Easy to install and saves space in control cabinets.
• Robust Construction: Aluminum enclosure provides durability and protection.
• Comprehensive Certifications: Meets various international safety and performance standards (UL, CSA, IEC/EN), ensuring compliance and broad applicability.

Precautions

• Installation by Qualified Personnel: Installation and wiring should only be performed by trained and qualified personnel in accordance with local electrical codes and regulations.
• Proper Grounding: Ensure proper grounding of the unit to prevent electrical shock and ensure stable operation.
• Ventilation: Provide adequate ventilation around the power supply to prevent overheating, especially in enclosed spaces. Adhere to specified clearance distances.
• Load Compatibility: Ensure the connected load does not exceed the rated output current and power to prevent damage to the power supply.
• Input Voltage Range: Always operate the power supply within its specified input voltage range.
• Temperature Limits: Avoid operating the unit outside its specified ambient air temperature range.
• Disconnection Before Servicing: Always disconnect the power supply from the mains before performing any maintenance or troubleshooting.
• Accessory Compatibility: If using accessories like messaging modules (CP-C MM), redundancy units (CP-A RU), or control modules (CP-A CM), ensure they are compatible and installed correctly.

Product Applications

The ABB 1SVR427026R0000 power supply is ideal for various industrial and commercial applications requiring a reliable 24 VDC power source. Common applications include:

• Industrial Automation: Powering PLCs (Programmable Logic Controllers), HMIs (Human-Machine Interfaces), sensors, actuators, and other control components.
• Machine Building: Providing stable power for various machinery and equipment.
• Process Control: Ensuring reliable operation of control systems in manufacturing and processing plants.
• Building Automation: Powering devices for lighting control, security systems, and HVAC.
• Telecommunications: Supplying power to communication equipment.
• Railway and Transportation Systems: Used in control and signaling applications.
• Power Distribution Systems: Providing auxiliary power to critical components.
• Test and Measurement Equipment: Offering a stable power source for sensitive instruments.
