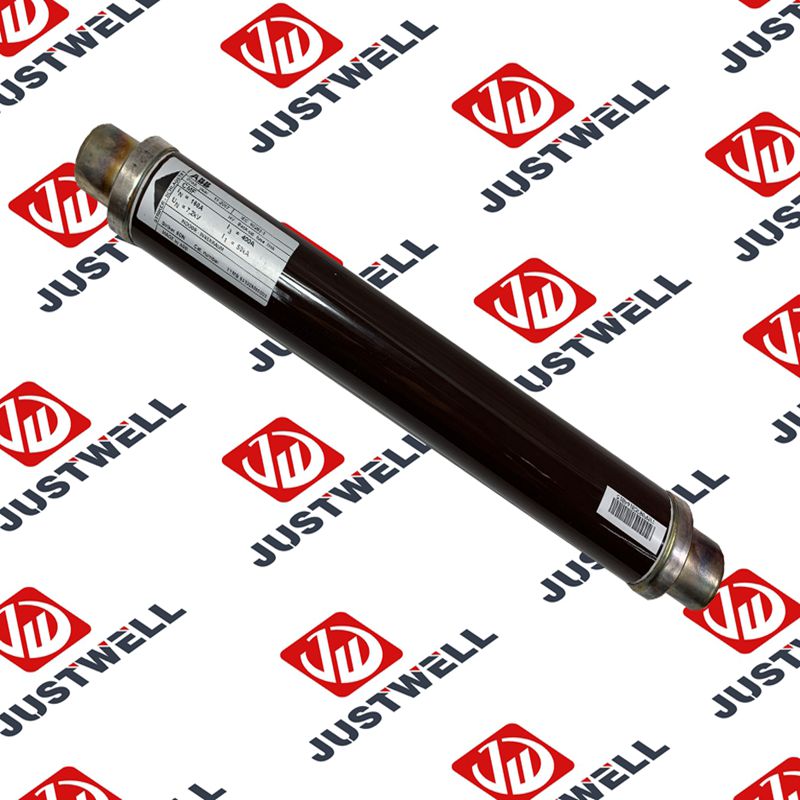

1YMB531029M0003 ABB High Voltage Fuse Link

Description

1YMB531029M0003 ABB High Voltage Fuse Link

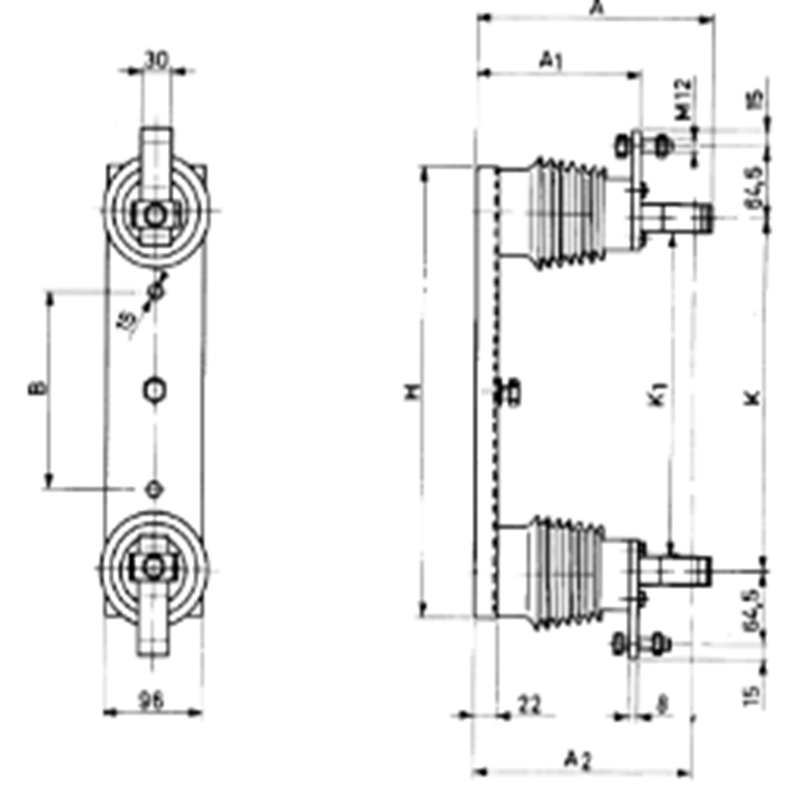

Product Dimensions：

Product Overview

The 1YMB531029M0003 belongs to the CMF (Current Limiting Motor Fuse) series, which are specialized high-voltage fuses. These fuses are characterized by their ability to limit the peak current during a short circuit event, thereby reducing the stress on upstream and downstream equipment. They are designed with an “overload spot” using the M-effect, which ensures precise and reliable operation for both overload and short-circuit conditions.

Product Parameters

• Manufacturer Part Number: 1YMB531029M0003
• Series: CMF (Current Limiting Motor Fuse)
• Rated Voltage: 7.2 kV
• Rated Current: 160 A (Note: Some sources may indicate variations, but 160A is consistently associated with this part number in specific documentation for the CMF series at 7.2kV)
• Dimensions:
  • Length: 442 mm
  • Diameter: 65 mm (for this specific current rating, diameter can vary for other CMF fuses)
• Standards: Tested according to IEC Publication 60282-1 (IEC 282-1) and IEC Publication 644 (IEC 644). IEC 644 specifically applies to fuse links used with direct-on-line started motors in AC systems.
• Mounting: Designed for indoor use.
• Weight: Approximately 3.0 kg (Weight can vary slightly for different current ratings within the CMF series).

Product Advantages

• Excellent Motor Starting Withstand Capability: Specifically designed and tested (IEC 644) to withstand the repeated current surges associated with motor starting without deterioration, ensuring long operational life.
• High Current Limiting Capability: Limits the magnitude of prospective short-circuit currents, reducing mechanical and thermal stress on protected equipment and extending their lifespan.
• Low Minimum Breaking Current: Capable of interrupting low fault currents effectively, which widens the protection range.
• Low Power Losses: Efficient design leads to reduced energy waste and allows for installation in more compact switchgear compartments, as less heat is generated.
• “M-Effect” Technology: Utilizes an overload spot on the fuse elements, created by coating silver fuse elements with a low melting point metal. This technology ensures an extended operational range and reliable fusing for small overload currents, and ensures arc initiation at a consistent, safe point.
• High Breaking Capacity: Ensures effective interruption of high fault currents.
• Reduced Overvoltages: Designed to generate low arc voltages during interruption, minimizing stress on the insulation of the protected circuit.

Precautions

• Installation by Qualified Personnel: High voltage equipment requires specialized knowledge and training. Installation, maintenance, and replacement should only be carried out by certified and experienced electrical personnel following all local and international safety regulations.
• De-energize Before Work: Always ensure that the circuit is completely de-energized and locked out before attempting any work on the fuse or associated equipment.
• Correct Selection: Verify that the fuse’s rated voltage, current, and breaking capacity are suitable for the specific application and system parameters. Mismatched fuses can lead to dangerous failures.
• Environmental Conditions: Ensure the fuse is installed in an environment within its specified operating temperature and humidity ranges.
• Physical Handling: Handle fuses carefully to avoid physical damage, which could compromise their integrity and performance.
• No Repair or Regeneration: Fuse links are single-use protection devices and cannot be repaired or regenerated after they have operated. They must be replaced with an identical or approved equivalent.
• Refer to Documentation: Always consult the official ABB product documentation, datasheets, and installation manuals for precise specifications, installation instructions, and safety guidelines.

Product Applications

The ABB 1YMB531029M0003 high-voltage fuse is primarily used in medium voltage motor control circuits where reliable protection against overloads and short circuits is critical. Its specific design features make it ideal for:

• Industrial Motor Control Centers: Protecting medium voltage motors in various industrial applications such as pumps, fans, compressors, and conveyors.
• Mining Operations: Safeguarding large motors and associated equipment in demanding mining environments.
• Oil & Gas Industry: Providing protection for motors used in extraction, refining, and transportation processes.
• Utilities and Power Generation: Protecting auxiliary motors in power plants and substation equipment.
• Water and Wastewater Treatment Plants: Ensuring the reliable operation of pumps and other motor-driven equipment.
• Manufacturing and Processing Plants: Offering critical protection for machinery with direct-on-line started motors.
