2093-AC05-MP1 Allen Bradley Programmable controller

Description

2093-AC05-MP1 Allen Bradley Programmable controller

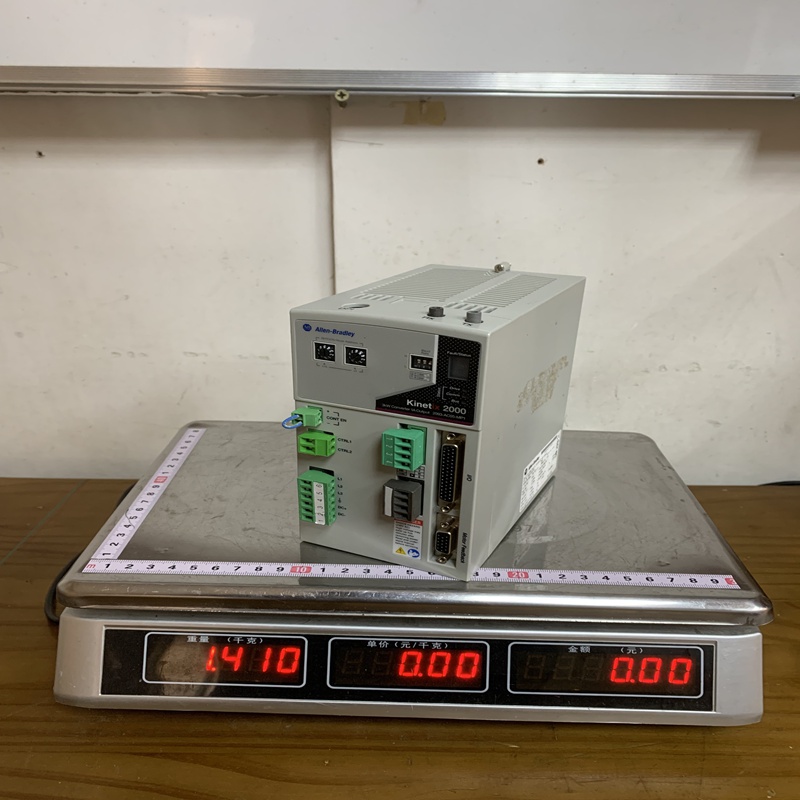

Product Dimensions：

Product Description

The 2093-AC05-MP1 serves as the “leader” module in a Kinetix 2000 drive system. It mounts directly onto a 2093-PRSx power rail and provides DC bus power to additional “follower” Axis Modules (AM). It uses the SERCOS interface for high-speed, synchronized communication with Logix5000™ controllers, making it ideal for low-to-medium power multi-axis applications where panel space is at a premium.

Product  Parameters

Product Advantages

• Compact Footprint: Combining the converter and inverter into a single-width module significantly reduces the total width of the drive system.

• Simplified Wiring: The power rail design eliminates much of the complex point-to-point power wiring required in traditional drive setups.

• Flexible Power Input: Supports both single-phase and three-phase 230V AC inputs, allowing for global deployment.

• Seamless Integration: Native support for the SERCOS interface allows for high-precision synchronization with Allen-Bradley ControlLogix or CompactLogix systems.

• Low Power Optimization: Specifically engineered for applications requiring precise control of smaller motors (like the MP-Series or TL-Series).

Safety and Maintenance

• High Voltage Residual: After removing power, wait at least 5 minutes for the DC bus capacitors to discharge. Always verify zero voltage with a meter before servicing.

• Cooling Clearances: Ensure a minimum clearance of 40mm (1.6 in.) above and below the module for air convection. It does not require side clearance when mounted on the power rail.

• Grounding: The module must be properly grounded via the power rail. If using ungrounded power, the internal grounding jumper (CON6 to CON7) must be adjusted according to the manual.

• Contamination Protection: Since this is an “open-type” device (IP20), it must be installed in an enclosure that protects it from metallic dust, moisture, and conductive debris.

Typical Applications

• Electronic Assembly: High-speed pick-and-place machines and component insertion.

• Packaging Machinery: Form-fill-seal machines, labeling, and capping systems.

• Robotics: Small 4-axis or 6-axis robotic arms for material handling.

• Medical/Lab Automation: Precise liquid handling or sample sorting systems.

• Textile & Specialty Machinery: Small-scale indexing tables and winding applications.
