2094-XL75S-C2 Allen-Bradley Line Interface Module

Description

2094-XL75S-C2 Allen-Bradley Line Interface Module

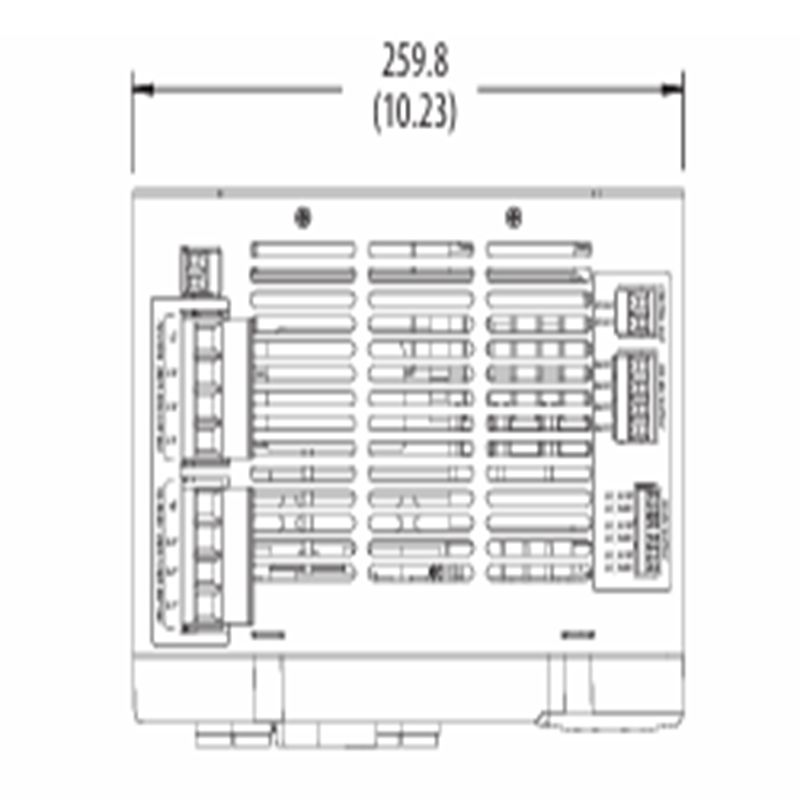

Product Dimensions：

Product Description

This particular module, the 2094-XL75S-C2, is configured to operate with a specific input voltage and current rating. It is an integral part of a multi-axis system, where a single LIM can supply power to several servo axis modules. The “XL” in the part number indicates it’s part of a specific product line within the Kinetix 6000 series, and the subsequent numbers and letters specify its characteristics, such as current rating and control voltage. Its primary function is to convert the incoming three-phase AC power into a DC bus voltage that powers the servo drive axes.

Product Parameters

• Parameter Value Series Kinetix 6000 Catalog Number 2094-XL75S-C2 Drive Type Integrated Axis Module with Safe Torque-Off (STO) Continuous Output Current 75 A Peak Output Current Up to 150 A Voltage Rating 460V AC (3-phase input) Control Interface Integrated Motion over SERCOS Cooling Method Fan-cooled Enclosure Type Open-type Safety Feature Safe Torque-Off (SIL 2 / PL d, Category 3) Mounting Panel-mounted, modular Feedback Support High-resolution digital encoder, HIPERFACE, EnDat, etc. Certifications CE, cULus, TUV, EN ISO 13849-1, EN 61800-5-2

Product Advantages

• System Integration: The 2094-XL75S-C2 is specifically designed to work seamlessly with Kinetix 6000 servo drives, ensuring optimal performance and simplified integration in multi-axis motion control systems.
• Efficient Power Conversion: It efficiently converts incoming AC power to a stable DC bus voltage, which is crucial for the precise and dynamic control of servo motors.
• Robust Performance: As part of the Kinetix 6000 series, it is built for the demanding requirements of industrial motion control, offering reliability and durability in harsh environments.
• Scalability: A single Line Interface Module can support multiple servo axes, which simplifies system architecture and can reduce overall costs compared to using individual power supplies for each axis.

Important Notes

• Compatibility: This module is only compatible with the Allen-Bradley Kinetix 6000 servo drive system. It cannot be used as a standalone power supply or with other servo drive families.
• Installation and Safety: Installation must be performed by a qualified technician. High voltage is present, and all safety procedures must be followed to prevent electric shock and equipment damage.
• System Sizing: Proper sizing of the LIM is critical. The 75A rating must be sufficient to power all connected servo axes under all operating conditions. Incorrect sizing can lead to poor performance or system faults.
• Environmental Conditions: The module should be installed in a clean, dry, and cool environment, such as an industrial control cabinet, to ensure its longevity and reliable operation.

Product Applications

The 2094-XL75S-C2 is an integral component in a variety of high-performance motion control applications, including:

• Packaging Machinery: Used in complex packaging lines that require coordinated motion and high-speed servo control.
• Material Handling: Found in automated storage and retrieval systems, conveyor lines, and robotic pick-and-place applications.
• Printing and Converting: Essential for the precise and synchronized motion of rollers and cutters in printing presses and converting machines.
• Machine Tools: Employed in CNC machines and other machine tools where high-precision multi-axis control is necessary.
• Robotics: Provides power to the servo drives that control the movements of industrial robots.
