22B-D010N104 Allen-Bradley AC Drive

Description

22B-D010N104 Allen-Bradley AC Drive

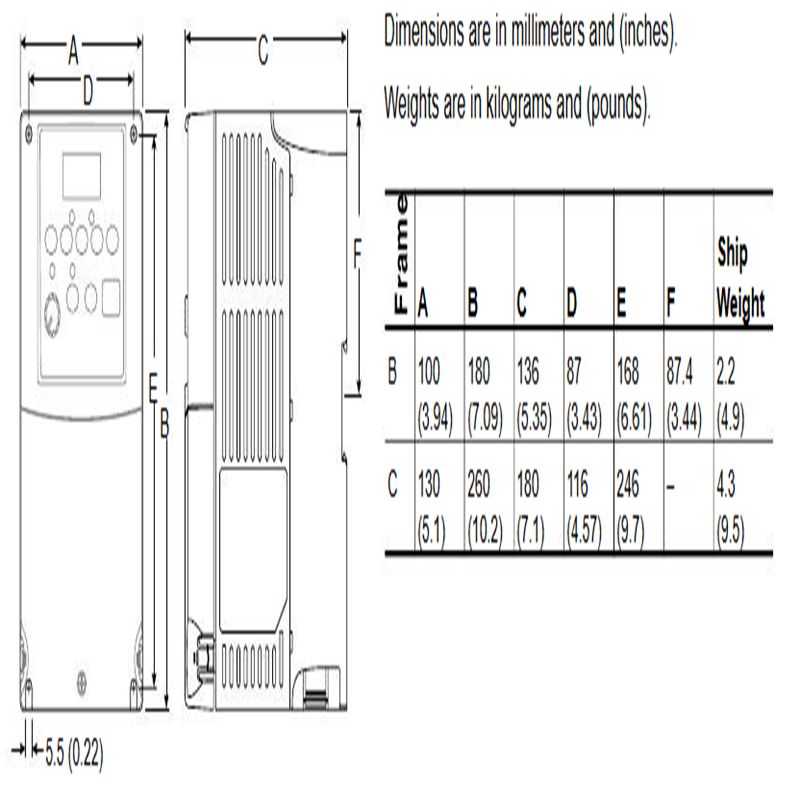

Product Dimensions：

Product Description

The 22B-D010N104 is an adjustable frequency AC drive (also known as a Variable Frequency Drive, or VFD) that controls the speed and torque of AC induction motors. It’s specifically part of the PowerFlex 40 family, which offers sensorless vector control for improved low-speed performance and load regulation.

Product Parameters

Product Advantages

The 22B-D010N104 offers several advantages for industrial applications:

• Compact Design: Its small footprint saves valuable panel space, making it suitable for installations with limited room.
• Ease of Use: The integral keypad and intuitive programming simplify setup and operation, allowing for quick out-of-the-box functionality.
• Enhanced Performance: Sensorless vector control provides improved motor speed regulation and torque delivery, especially at lower speeds, without the need for an encoder.
• Built-in Communication: The integrated RS485 port enables seamless integration into control systems, facilitating remote monitoring and control.
• Robust Protection Features: Comprehensive built-in protective features (overload, overcurrent, over/under voltage) safeguard both the drive and the connected motor, increasing system reliability.
• Flexible I/O: A variety of discrete and analog I/O options allow for flexible integration with various sensors, actuators, and control schemes.
• Cost-Effective: It offers a strong balance of features and performance at a competitive price point for its capabilities.

Precautions

When installing, operating, or servicing the 22B-D010N104, it is crucial to observe the following precautions:

• High Voltage Hazard: The drive contains high-voltage capacitors that take time to discharge even after the main power supply is removed. Always wait a minimum of three minutes after disconnecting power before working on the drive to ensure capacitors have discharged to safe voltage levels.
• Electrostatic Discharge (ESD): This drive contains ESD-sensitive components. Use static control precautions (e.g., grounding straps, anti-static mats) when handling, installing, testing, or repairing the unit to prevent component damage.
• Qualified Personnel: Only qualified personnel familiar with AC drives and associated machinery should plan, install, start up, and maintain the system. Failure to comply can result in personal injury and/or equipment damage.
• Environmental Considerations:
  • Protect the cooling fan from dust or metallic particles.
  • Do not expose the drive to corrosive atmospheres, excessive moisture, or direct sunlight.
  • Ensure proper ventilation and maintain minimum mounting clearances around the drive for adequate airflow to prevent overheating. Zero Stacking™ is allowed for ambient temperatures up to 40°C.
• Grounding: Ensure the drive is properly grounded. If installed on an ungrounded distribution system, disconnect MOVs connected to ground if line-to-ground voltages on any phase could exceed 125% of the nominal line-to-line voltage to prevent drive damage.
• Parameter Settings: Be cautious when using functions like “Auto Restart Tries” or “Start At PowerUp” in inappropriate applications, as this could lead to unexpected machine startup. Always consider applicable local, national, and international codes, standards, regulations, or industry guidelines.
• Wiring: Ensure correct wiring and avoid common errors like undersizing the motor, incorrect or inadequate AC supply, or excessive ambient temperatures, which can lead to system malfunction.

Product Applications

The Allen-Bradley PowerFlex 40 drives, including the 22B-D010N104, are widely used in various industrial applications that require reliable motor speed and torque control. Common applications include:

• Conveyors: Controlling the speed of material handling systems.
• Fans and Pumps: Optimizing energy consumption by adjusting motor speed based on demand.
• Mixers: Providing precise speed control for mixing processes.
• Packaging Machinery: Enabling accurate and repeatable movements for packaging lines.
• Machine Tools: Offering versatile speed control for various cutting, grinding, and shaping operations.
• Textile Machines: Maintaining consistent tension and speed in textile manufacturing.
• Food and Beverage Processing: Controlling pumps, mixers, and other equipment with precise speed requirements.
• Small Machines: General purpose motor control in a wide array of small to medium-sized industrial machinery.
