2711-M3A19L1 Allen-Bradley Touch screen module

Description

2711-M3A19L1 Allen-Bradley Touch screen module

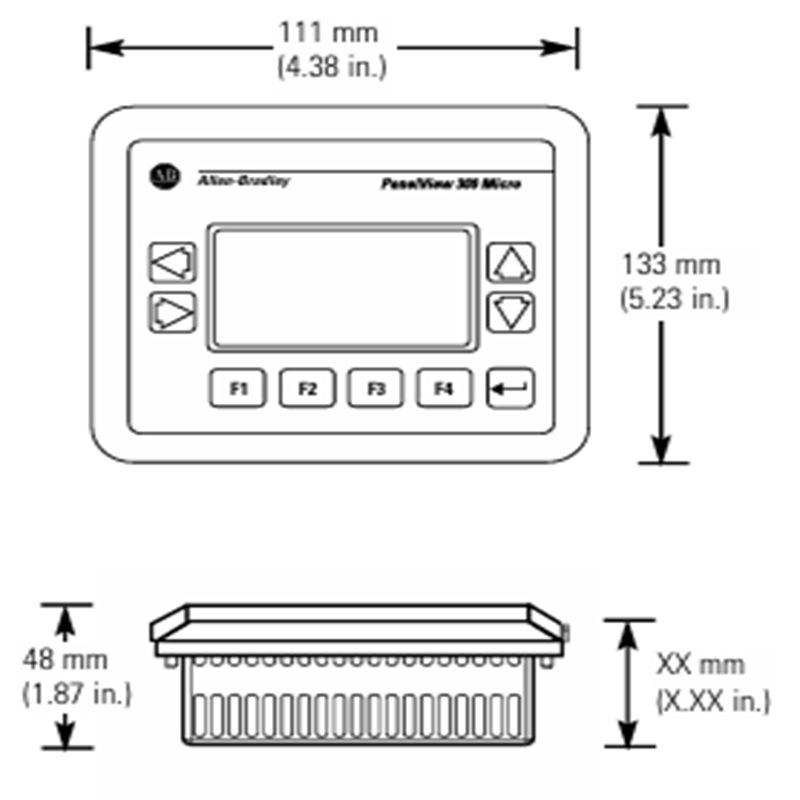

Product Dimensions：

Product Description

The Allen-Bradley 2711-M3A19L1 is an operator terminal from the PanelView 300 Micro series. It is a Human Machine Interface (HMI) designed for smaller, less complex industrial applications where a simple, reliable interface is needed to monitor and control equipment.

Product Parameters

• Series: PanelView 300 Micro
• Display Type: Monochrome transflective LCD with LED backlight
• Display Area: 73 x 42 mm (2.87 x 1.67 in.)
• Resolution: 128 x 64 pixels
• Input Method: Keypad with 4 function keys (F1-F4)
• Communication Port: RS-232 (DH-485)
• Application Memory: 170 KB for application runtime, 240 KB nonvolatile memory
• Input Voltage: 18-32V DC
• Enclosure Rating: NEMA Type 12/13, 4X (Indoor Use Only), IP54, IP65

Product Advantages

• Compact and Cost-Effective: Its small size and simple design make it a great choice for applications where space is limited and budget is a key concern.
• Easy to Use: The keypad interface and clear monochrome display are straightforward for operators to use, reducing the need for extensive training.
• Durable: With NEMA and IP ratings, it is built to withstand common industrial environments, offering protection against dust, dirt, and water splashes.
• Seamless Integration: It is designed to work seamlessly with Allen-Bradley controllers, especially those using the DH-485 protocol, ensuring easy and reliable communication.

Important Notes

• Application Complexity: This HMI is best suited for simple applications. For complex graphics, extensive data logging, or multi-touch functionality, a more advanced PanelView model is required.
• Power Supply: The terminal requires a DC power supply within the specified 18-32V range. Always ensure a stable and correct power source to prevent damage.
• Communication: The RS-232 port supports the DH-485 protocol, so make sure the connected controller and communication cables are compatible.

Product Applications

The 2711-M3A19L1 is commonly used in various industrial applications that require a simple, reliable operator interface.

• Small Machines: Ideal for standalone machines like conveyors, pumps, or simple mixing systems.
• Process Control: Can be used for basic control and monitoring of a single process loop.
• Equipment Status Monitoring: Provides a quick and easy way to check the status of equipment, display alarms, or show simple data values.
• OEM Applications: Its compact size and simplicity make it a popular choice for equipment manufacturers (OEMs) to provide a user-friendly interface on their machines.
