2711P-T15C4D2 Allen-Bradley Processor module

Description

2711P-T15C4D2 Allen-Bradley Processor module

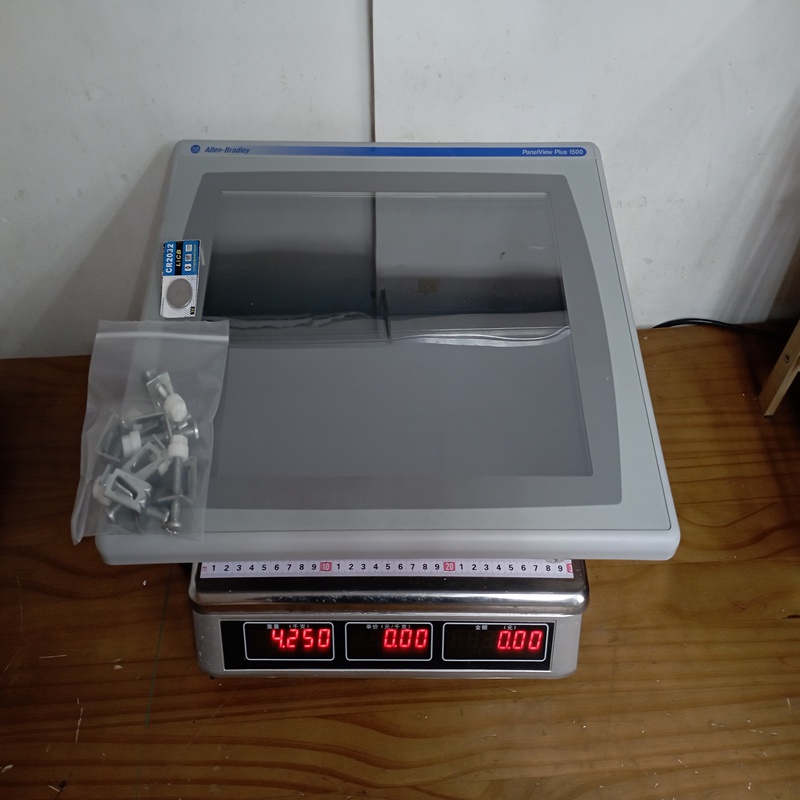

Product Dimensions：

Product Description

The 2711P-T15C4D2 features a large 15-inch color display with a resistive touchscreen for intuitive user interaction. As part of the PanelView Plus 6 series, it runs on the Windows CE operating system, providing a robust platform for FactoryTalk View Machine Edition (ME) applications. This specific model is a DC-powered unit equipped with an oversized screen, making it suitable for control rooms or complex machinery where large-scale graphical representation of process flows is necessary. It includes built-in communication ports and expandable memory options to handle demanding HMI applications.

Product Parameters

The technical specifications for the 2711P-T15C4D2 are as follows:

Product Advantages

• Superior Visualization: The 15-inch XGA display offers high clarity and a large viewing area, reducing operator fatigue and improving the visibility of detailed process alarms.

• Modular Design: The unit consists of a display module, a logic module, and a communication module, allowing for easier maintenance and the ability to upgrade individual components.

• Open Platform: Running on Windows CE enables the use of standard desktop features such as a media player, VNC for remote access, and PDF viewers for on-site digital manuals.

• Broad Connectivity: Supports multiple industrial protocols via Ethernet and Serial connections, ensuring seamless integration with ControlLogix, CompactLogix, and SLC 500 controllers.

• Reliability: Built for harsh industrial environments, it is resistant to vibrations, shocks, and extreme temperatures when mounted correctly.

Safety and Maintenance Precautions

• Power Supply: Always ensure the input voltage is within the 18–32V DC range. Using an unregulated power source can damage the logic module.

• Touchscreen Care: Clean the screen only with a soft, dry cloth or non-abrasive cleaners. Sharp objects should never be used on the resistive touchscreen as they can puncture the outer membrane.

• Mounting: Use the provided mounting clips to ensure an airtight seal (IP66/NEMA 4X). Improper installation can allow moisture and dust to enter the enclosure.

• Battery Replacement: The real-time clock is powered by a small internal battery. Monitor the battery status through the system settings to prevent data loss or time-sync issues.

• ESD Sensitivity: When servicing the logic module or adding SD cards, follow standard anti-static procedures to avoid electrostatic discharge damage.

Product Applications

The 2711P-T15C4D2 is typically found in high-complexity automation sectors, including:

• Automotive Assembly: Visualizing complete robotic welding lines and assembly status.

• Food & Beverage: Managing high-speed bottling and packaging lines where multi-screen navigation is required.

• Water Treatment: Monitoring vast geographical SCADA layouts and pump station diagnostics on a single screen.

• Pharmaceuticals: Implementing 21 CFR Part 11 compliant operator interfaces for batch processing.

• Oil & Gas: Controlling separation and refining processes where high-resolution trending is critical for safety.
