2MLL-EFMT CC Honeywell Fast Ethernet Module

Description

2MLL-EFMT CC Honeywell Fast Ethernet Module

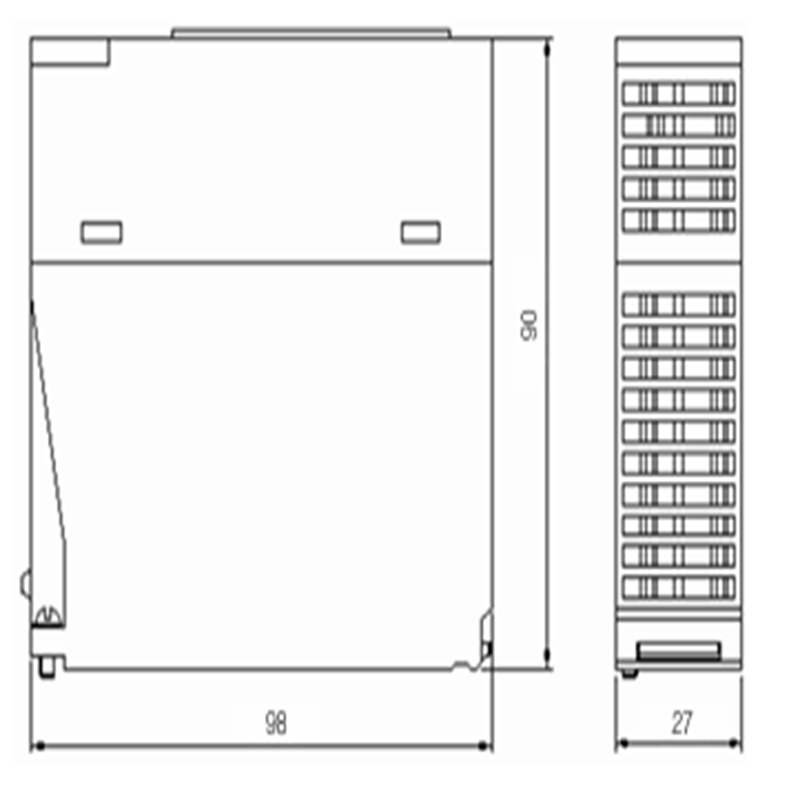

Product Dimensions：

Product Description

The Honeywell 2MLL-EFMT-CC is a Fast Ethernet Module designed for high-speed industrial communication within Honeywell’s MasterLogic-200 Programmable Logic Controller (PLC) systems. This module serves as a critical interface, enabling seamless data exchange between the PLC and other Ethernet-based devices like workstations, other PLCs, or field equipment. The “-CC” in the model number indicates that the module has a conformal coating, which provides protection for the electronic components in harsh industrial environments.

Product Specifications

• • Function: Fast Ethernet Communication Module
  • Ethernet Speed: 10/100 Mbps with auto-negotiation
  • Connector Type: RJ-45 (Electric)
  • Supported Protocols: TCP/IP, UDP/IP, DHCP, and protocols specific to Honeywell systems like MLDP (for Experion PKS) and Modbus TCP Slave.
  • Supply Voltage: 24 VDC
  • Current Consumption: 410 mA
  • Operating Temperature: -20°C to +70°C
  • Humidity: 5% to 95% RH, non-condensing
  • Protection: Conformal coating for enhanced durability in corrosive or humid environments.
  • Dimensions: 15.24 × 10.16 × 3.81 cm

  Advantages

  The Honeywell 2MLL-EFMT-CC module offers significant advantages for industrial automation applications:

  • High-Speed Communication: It provides fast and reliable data transfer at 10/100 Mbps, which is crucial for modern industrial processes that require real-time data monitoring and control.
  • Seamless Integration: Designed to integrate flawlessly with Honeywell’s MasterLogic-200 PLC and Experion PKS Distributed Control Systems (DCS), it ensures a streamlined and efficient communication network.
  • Durability and Reliability: The conformal coating (CC) makes the module resistant to condensation, corrosive gases, and other environmental contaminants, extending its lifespan and reliability in harsh industrial settings.
  • Robust Protocol Support: With support for common standards like TCP/IP and Modbus TCP, it can easily connect with a wide range of devices from different manufacturers, providing flexibility in system design.
  • Comprehensive Diagnostics: The module typically includes LED indicators and software-based diagnostic tools to help quickly identify and troubleshoot network faults, minimizing downtime.

  Precautions

  To ensure safe and proper operation of the Honeywell 2MLL-EFMT-CC module, it’s essential to follow these precautions:

  • Consult the User Manual: Always refer to the official Honeywell user manual for the MasterLogic-200 PLC system. It contains detailed safety guidelines, technical specifications, and installation instructions.
  • ESD Protection: The module is sensitive to electrostatic discharge (ESD). Always observe proper ESD precautions when handling the module to prevent damage to the electronic components.
  • Correct Power Supply: Ensure the module is supplied with the correct voltage (24 VDC). Using an incorrect voltage can damage the device and pose a safety hazard.
  • Proper Mounting: The module should be securely mounted on a DIN rail within a control cabinet, following the manufacturer’s instructions to ensure proper cooling and protection from vibration.
  • Wiring: Use high-quality Category 5 (CAT5) or better Ethernet cables with RJ-45 connectors for reliable network communication.

  Applications

  The Honeywell 2MLL-EFMT-CC is a key component in a variety of industrial automation and process control applications, including:

  • Distributed Control Systems (DCS): It is a vital part of Honeywell’s Experion PKS and other DCS platforms, providing the high-speed network backbone for communication between controllers, I/O modules, and operator workstations.
  • Process Industries: Used in sectors like oil and gas, chemical processing, and power generation where reliable and high-speed communication is essential for monitoring and controlling complex processes.
  • Manufacturing and Automation: The module facilitates communication in automated manufacturing lines, connecting PLCs to Human-Machine Interfaces (HMIs), SCADA systems, and other factory equipment.
  • Building and Energy Management: It can be used in large-scale building automation or energy management systems to provide a robust communication link between controllers and a central monitoring system.
