3NC150.6 B&R COUNTER AND POSITIONING MODULE

Description

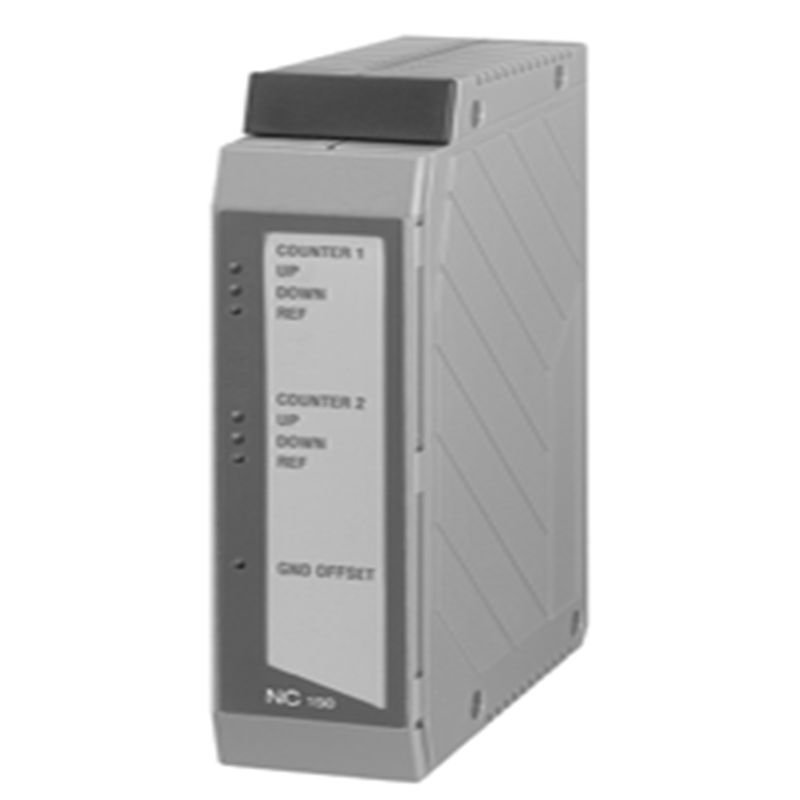

3NC150.6 B&R COUNTER AND POSITIONING MODULE

Product Dimensions：

Product Description

This module is engineered for high-precision applications. It features two inputs for incremental encoders, which allow it to track the position and speed of a rotating shaft or linear movement. The module processes this information using a 32-bit counter, ensuring a high degree of accuracy. It also provides two analog outputs, which can be used to control external devices, such as variable speed drives or actuators, based on the counted position or velocity. The analog outputs have a 12-bit resolution, providing fine control over the output signal.

Product Parameters

• Encoder Supply: 5 / 30 V external
• Module Requirements: Typically, 40 mA at 5 V / 120 mA at 30 V
• Input Frequency: 100 KHz
• Input Filter: 2 times, can be set using software
• Counter Size: 32-bit
• Number of Analog Outputs: 2
• Digital Converter Resolution: 12-bit
• Signal Encoder Connections: Two 9-pin DSUB sockets
• Encoder Inputs: Symmetric and asymmetric

Product Advantages

• High Precision: The 32-bit counter and 12-bit analog outputs provide excellent precision, making it suitable for applications that demand fine control and accurate positioning.
• Versatility: With two independent encoder inputs and two analog outputs, the module offers flexibility in a wide range of control and positioning tasks.
• Seamless Integration: As part of the B&R System 2005, it is designed for easy integration into existing B&R automation systems, which simplifies configuration and programming.
• Reliable Performance: The robust design and electrical isolation between inputs and outputs ensure reliable performance in a typical industrial environment.

Important Notes

• Obsolete Status: The B&R System 2005 series, including the 3NC150.6, is an older product line. It may be considered obsolete, and finding new units or official support from B&R may be challenging. Many available parts are likely used or refurbished.
• System Compatibility: This module is specifically designed for the B&R System 2005. It will not work as a standalone device or with other automation platforms without a compatible backplane and PLC.
• Installation: Correct wiring of the encoders and power supply is critical for proper function. Always refer to the product’s manual for detailed installation and configuration instructions.

Product Applications

The B&R 3NC150.6 is used in various industrial automation applications that require high-speed counting and precise motion control, such as:

• Packaging Machinery: For tasks like cutting, sealing, and product indexing based on position.
• Printing and Converting Machines: To control the position and synchronization of rollers and cutters.
• Material Handling: In automated systems to track the position of objects on a conveyor or to control a pick-and-place mechanism.
• Robotics: As a component for position feedback and control in more complex robotic systems.
