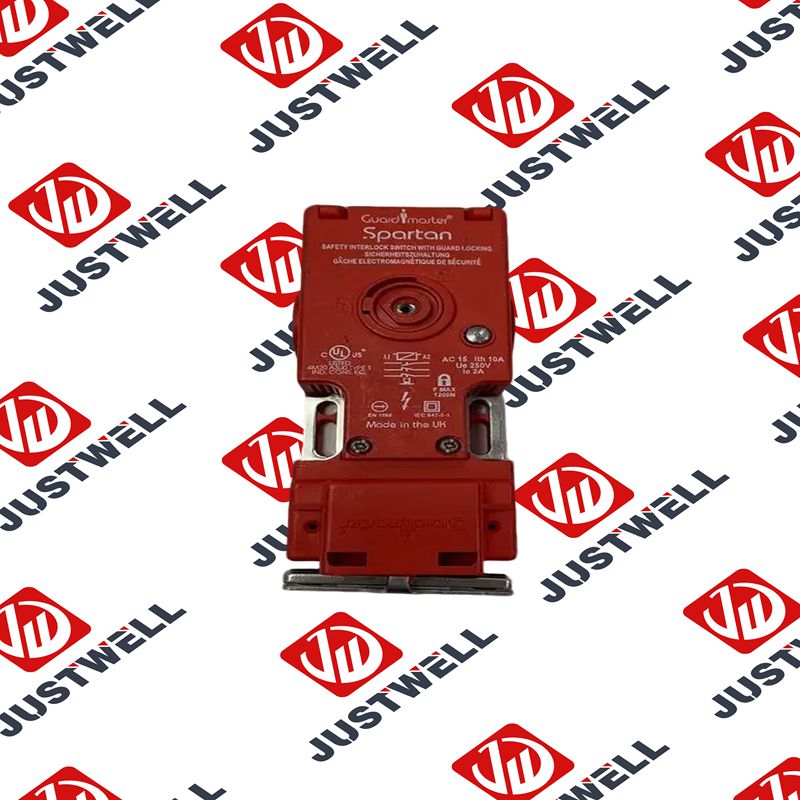

440G-S36005 Allen-Bradley Guard Locking Switches

Description

440G-S36005 Allen-Bradley Guard Locking Switches

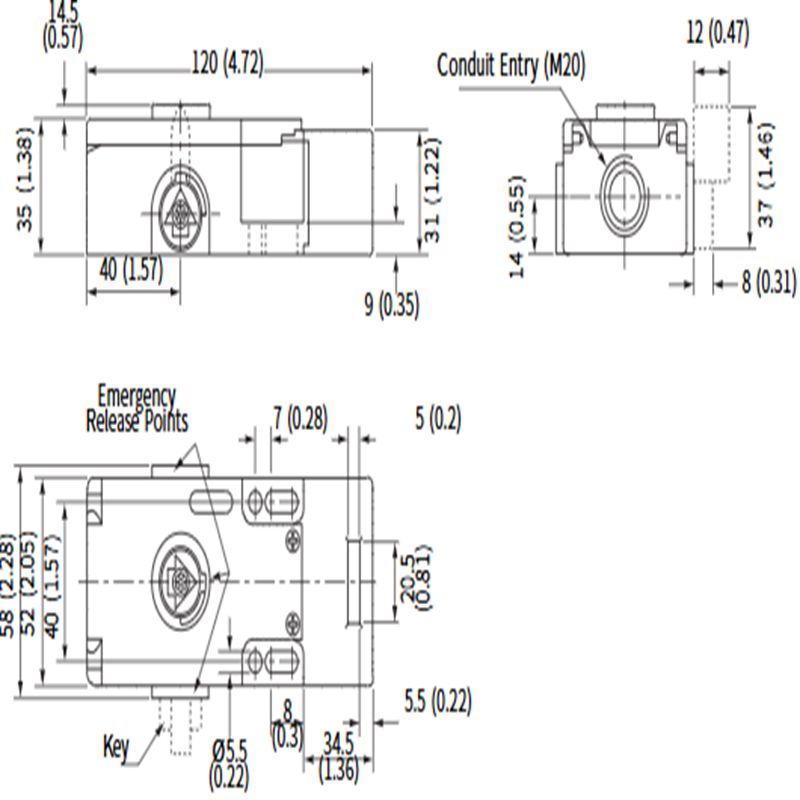

Product Dimensions：

Product Description:

• The 440G-S36005 is a part of the 440G-S Series of Guard Locking Switches from Allen-Bradley (Rockwell Automation). This model is a non-contact, RFID-coded safety switch designed to monitor the status of guard doors and secure them until dangerous operations have stopped. The unit communicates via CIP Safety over EtherNet/IP, allowing for simplified wiring and enhanced diagnostics.

  Product Parameters

  Parameter	Specification
  Part Number	440G-S36005
  Switch Type	Non-contact RFID Guard Locking Switch
  Locking Type	Power-to-Lock
  Communication Protocol	CIP Safety over EtherNet/IP
  Power Supply	24V DC
  Locking Strength	Approx. 1300 N
  Coding Level	High (per ISO 14119 with RFID technology)
  Actuation Direction	Multiple directions (multi-directional actuation)
  Connection Type	M12, 8-pin connector
  Enclosure Material	Plastic housing
  Protection Rating	IP65 / IP67
  Operating Temperature	-20°C to +55°C
  Certifications	CE, UL, TÜV, cULus, SIL 3, PLe per ISO 13849-1

Product Advantages

• Enhanced Safety: The “power to release” mechanism ensures that machine guards remain securely locked while dangerous machinery is in motion, preventing access to hazardous areas.
• Robust Construction: Its metal housing (often die-cast alloy) provides high durability and resistance to harsh industrial environments, including impacts and vibrations.
• High Ingress Protection (IP67): This rating means it’s well-protected against dust and can withstand temporary immersion in water, making it suitable for demanding environments where washdowns or high moisture are present.
• High Holding Force: A strong holding force ensures that guards cannot be easily defeated or opened inadvertently, adding an extra layer of safety.
• Integrated Actuator: Comes with a standard actuator, simplifying selection and installation.
• Reliable Performance: As an Allen-Bradley Guardmaster product, it’s designed for high reliability and long operational life, reducing downtime and maintenance costs.
• Compliance: Designed to meet relevant safety standards, contributing to overall machine safety compliance.

Precautions

• Proper Installation: Ensure the switch and actuator are correctly aligned and installed according to the manufacturer’s instructions. Misalignment can compromise the interlock function.
• Wiring: Follow all wiring diagrams and local electrical codes. Incorrect wiring can lead to malfunction or safety hazards.
• Power-to-Release Operation: Understand that this is a “power to release” device. In the event of a power failure, the guard will remain locked, which is a critical safety feature. Plan for emergency access procedures if necessary.
• Bypassing: Never attempt to bypass or defeat safety interlock switches, as this can lead to severe injury or death.
• Environmental Limits: While IP67 rated, ensure the operating temperature and other environmental conditions (e.g., extreme vibrations, corrosive chemicals) remain within the specified limits to prevent premature failure.
• Maintenance: Regularly inspect the switch and actuator for any signs of wear, damage, or contamination. Replace components as needed.

Product Applications

The Allen-Bradley Guardmaster 440G-S36005 is widely used in various industrial settings where the safety of personnel interacting with machinery is paramount. Typical applications include:

• Machine Guarding: Securing access to dangerous machinery, such as robotic cells, presses, conveyors, and rotating equipment, ensuring they remain locked until safe to enter.
• Automated Production Lines: Integrating into automated systems to provide interlocked access points for maintenance or troubleshooting.
• Process Industries: Used on access doors or gates for mixers, grinders, and other processing equipment.
• Packaging Machinery: Ensuring safety gates and doors on packaging lines are secured during operation.
• Any application requiring a robust, positively actuated guard interlocking solution.
