509-COB Allen-Bradley Open Type Full Voltage Starter

Description

509-COB Allen-Bradley Open Type Full Voltage Starter

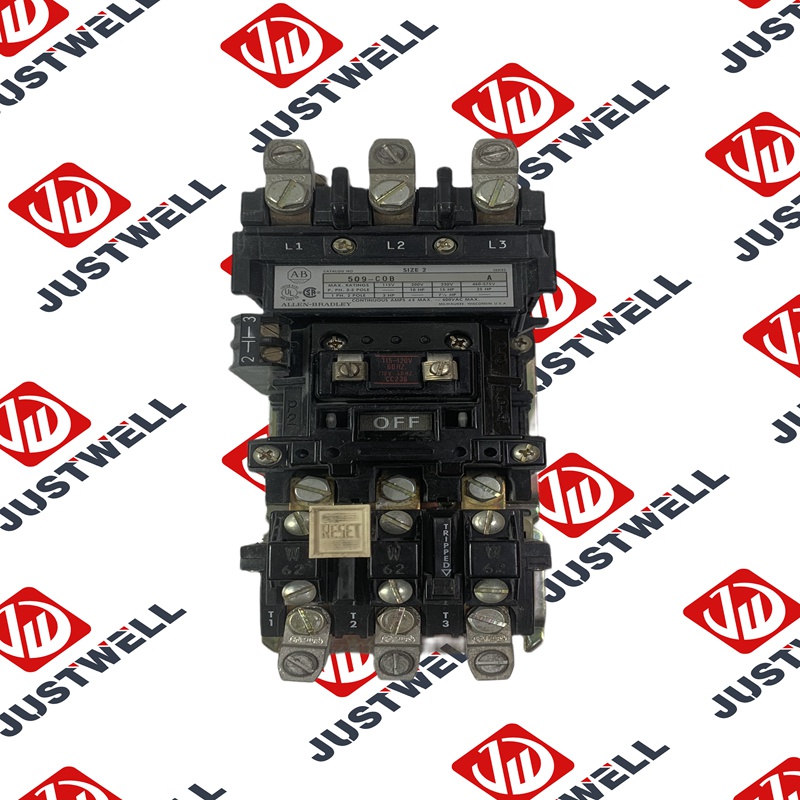

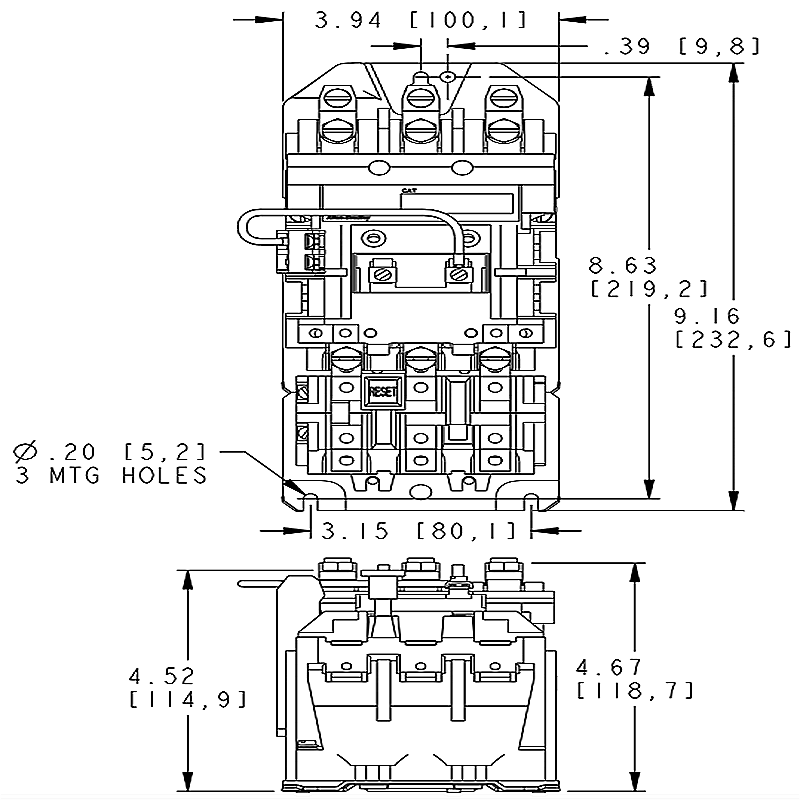

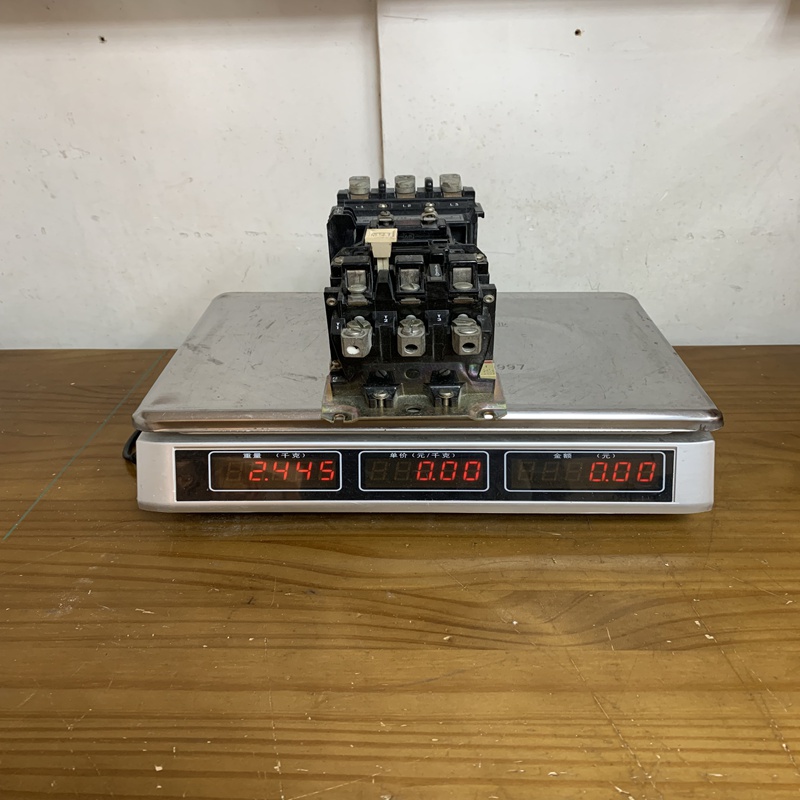

Product Dimensions：

Product Description

Product Specifications

• Load Voltage	115…575 (V)
  Continuous Current Rating	45 (A)
  Service Limit Current Rating	52 (A)
  Maximum Hp Rating (Non-plugging and non-jogging duty) Single-Phase	– (Hp)
  Maximum Hp Rating (Non-plugging and non-jogging duty) Three-Phase	25 (Hp)
  Maximum Circuit Closing Inrush Current, Peak Including Offset	483 (A)
  Mechanical Life	10 (Millions of Operations)
  Maximum Number of Auxiliary Contacts	8
  Pick-up Operating Time (Average)	27 (ms)
  Drop-out Operating Time (Average)	1320 (ms)
  Wire size for Power Terminals	14…4 (AWG)
  Required Torque	45 (lb•in)
  Type of Power Terminal	Pressure Terminals
  Operating Position	Vertical
  Temperature Range	-13…+149°F(-25…+65°C)
  Altitude	10,000 (feet before derating)
  Corrosion-Resistance	All metal parts are treated for corrosion-resistance

Product Advantages

• Reliable Motor Protection: The eutectic alloy overload relay is a proven, dependable technology that provides effective thermal protection for motors, preventing damage from overcurrent conditions.
• Robust Construction: This starter is built to withstand the rigorous demands of industrial environments, offering a long operational life.
• High Flexibility: The open-type design allows for easy integration into custom control panels and enclosures. This is ideal for machine builders and system integrators who need to customize their control systems.
• Standardized Design: As a NEMA-rated device, it adheres to industry standards, which simplifies replacement, maintenance, and system design.
• Ease of Maintenance: The modular design of the Bulletin 509 series allows for individual components, such as the coil or contacts, to be replaced without having to replace the entire starter.

Precautions

• Enclosure is Required: Because this is an “open-type” starter, it must be installed inside a proper industrial enclosure to protect it from dust, moisture, and accidental contact with live components.
• Heater Elements: The overload relay is shipped without heater elements. You must select and install three heater elements that correspond to your motor’s full-load current to ensure proper overload protection.
• Correct Sizing: Always ensure the starter’s NEMA size and current rating are appropriate for the specific motor being controlled to prevent equipment damage.
• Professional Installation: All wiring and installation should be performed by a qualified electrician in compliance with local and national electrical codes.

Product Applications

The Allen-Bradley 509-COB is used in a wide range of industrial and commercial applications for the control and protection of three-phase AC motors.

• Pumps and Compressors: Used to start and stop motors that drive pumps for fluid transfer and compressors for air or gas systems.
• Fans and Blowers: Ideal for controlling large industrial fans for ventilation and air circulation.
• Conveyor Systems: Provides reliable control for motors in material handling systems and conveyor belts.
• General Machinery: Serves as the primary control and protection for motors in various industrial machines like mixers, grinders, and machine tools.
