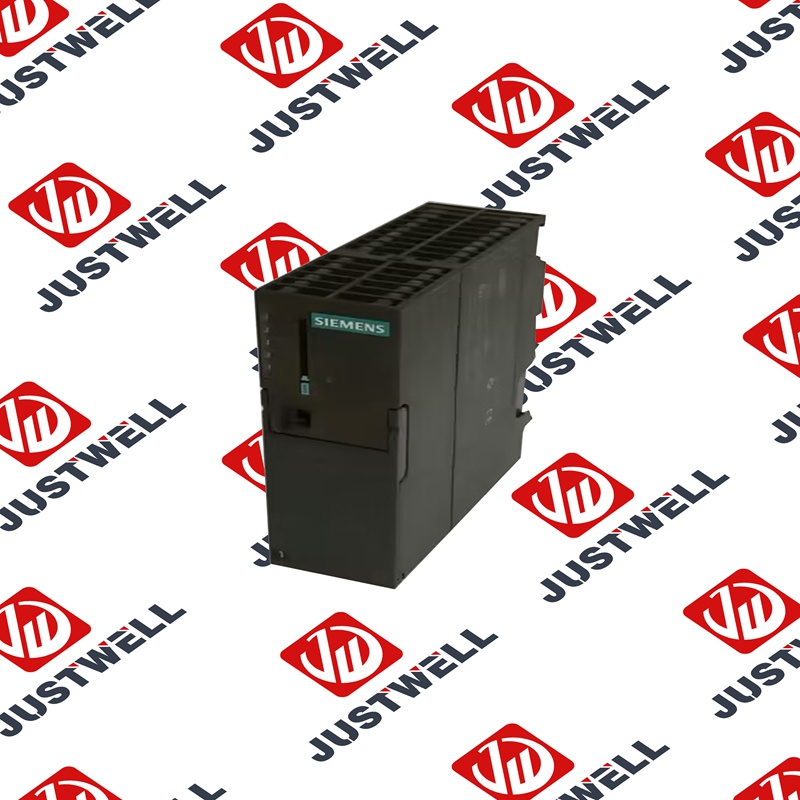

6AV2124-0GC01-0AX0 SIEMENS Processor module

Description

6AV2124-0GC01-0AX0 SIEMENS Processor module

Product Dimensions：

Product Description

Siemens processor modules, commonly known as CPUs (Central Processing Units), are the core components of industrial control systems, serving as the “brain” of a PLC (Programmable Logic Controller). They are responsible for executing the user program to automate and control industrial processes, machinery, and entire plants. These modules are a cornerstone of the SIMATIC product family and are designed for high performance, reliability, and seamless integration into the TIA Portal (Totally Integrated Automation) software environment.

A processor module typically includes a high-speed microprocessor, internal memory for the program and data, and various communication interfaces for networking with other devices.

Product Parameters

The specifications of a Siemens processor module vary widely depending on the model and its intended application. Here are some key parameters you will find:

• Processing Speed: This is a crucial metric, often specified by the instruction execution time (e.g., nanoseconds per binary instruction) or overall cycle time. High-end CPUs can process programs at lightning-fast speeds to handle complex, time-critical tasks.
• Memory: Processor modules have different types of memory:
  • Work Memory: Used for running the program and storing data. Its size dictates the complexity and size of the automation program you can run.
  • Load Memory: The storage location for the entire project, typically a memory card.
  • Retentive Memory: Stores data that needs to be retained even after a power loss.
• Communication Interfaces:
  • PROFINET/Ethernet: The standard for modern, high-speed industrial communication, often featuring multiple integrated ports for networking.
  • PROFIBUS: A widely used fieldbus for connecting to I/O devices and other components.
  • Other interfaces: Depending on the model, you might find serial interfaces (e.g., RS485, RS232) or dedicated ports for specific functions.
• Integrated Functions: Many CPUs include built-in features such as motion control, PID loops, web server functionality, and integrated I/O.
• Performance Class: Siemens categorizes its CPUs into different performance classes, such as Basic (S7-1200), Advanced (S7-1500), and Distributed (ET 200SP CPUs), each tailored to different application requirements.

Key Advantages

Siemens processor modules are highly regarded in the industry for several key reasons:

• Integrated Engineering with TIA Portal: All SIMATIC CPUs are programmed and configured within a single, consistent software environment, the TIA Portal. This simplifies the entire engineering workflow, from initial design to commissioning and diagnostics.
• Scalability and Flexibility: The product portfolio offers a solution for every need. The compact S7-1200 is perfect for simple machines, while the powerful S7-1500 handles the most complex, high-performance applications. You can easily scale your system by choosing the right CPU and adding I/O modules as needed.
• Advanced Functionality: Many CPUs come with powerful integrated functions, including sophisticated motion control for synchronized movements, extensive diagnostics, and cybersecurity features, reducing the need for additional hardware and simplifying the system architecture.
• Robustness and Reliability: Designed to operate in harsh industrial environments, these modules are built to withstand wide temperature ranges, vibrations, and electromagnetic interference (EMI), ensuring long-term, reliable operation.
• Integrated Security: Siemens CPUs have built-in security features to protect your system and intellectual property. This includes access protection, know-how protection for your program code, and communication integrity to guard against unauthorized access.

Precautions for Use

To ensure the safety and longevity of your system, always observe the following precautions:

1. Qualified Personnel Only: Installation, programming, and maintenance must be performed by trained and certified professionals.
2. Proper Power and Grounding: Use a stable, correctly rated power supply. Proper grounding is critical to protect the module from electrical noise and static discharge.
3. Environmental Conditions: Operate the CPU within the specified temperature, humidity, and ventilation conditions. Overheating can lead to reduced performance or module failure.
4. Secure Connections: Ensure all electrical and communication connections are securely fastened and that appropriate shielding is used to prevent signal interference.
5. Adhere to Documentation: Always consult the product’s official manual for detailed wiring diagrams, installation instructions, and safety guidelines.

Product Applications

Siemens processor modules are used in an extensive range of industrial sectors and applications, including:

• Discrete Manufacturing: Controlling robotic arms, automated assembly lines, and packaging machinery.
• Process Industries: Managing continuous processes in chemical plants, food and beverage production, and water treatment facilities.
• Machine Building: The heart of machine tools, textile machines, and printing presses.
• Material Handling: Running conveyor systems, automated warehouses, and crane controls.
• Building Automation: Used to manage and optimize complex systems for heating, ventilation, and air conditioning (HVAC) in large facilities.
