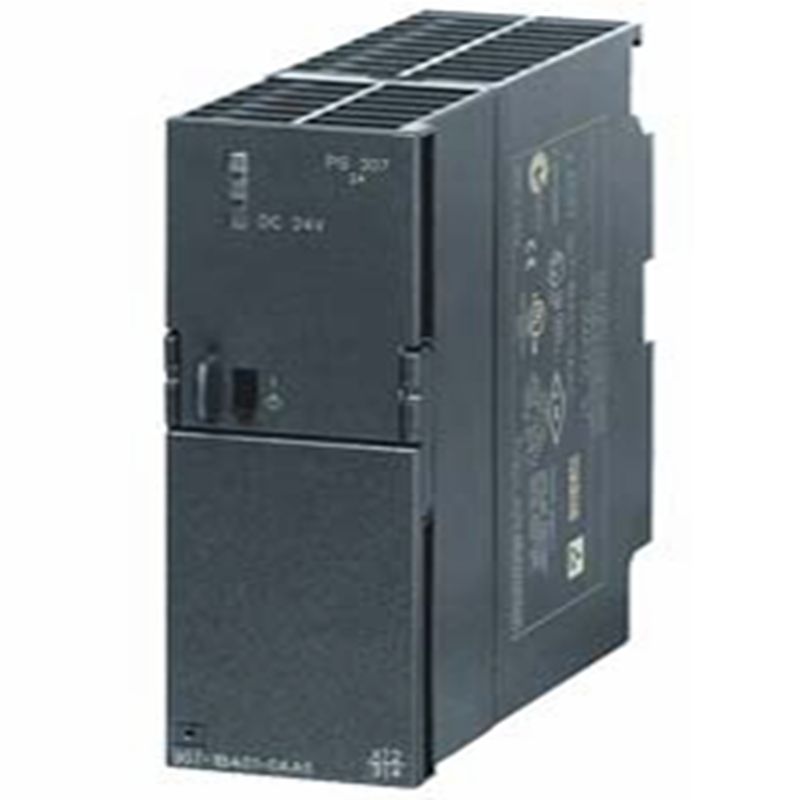

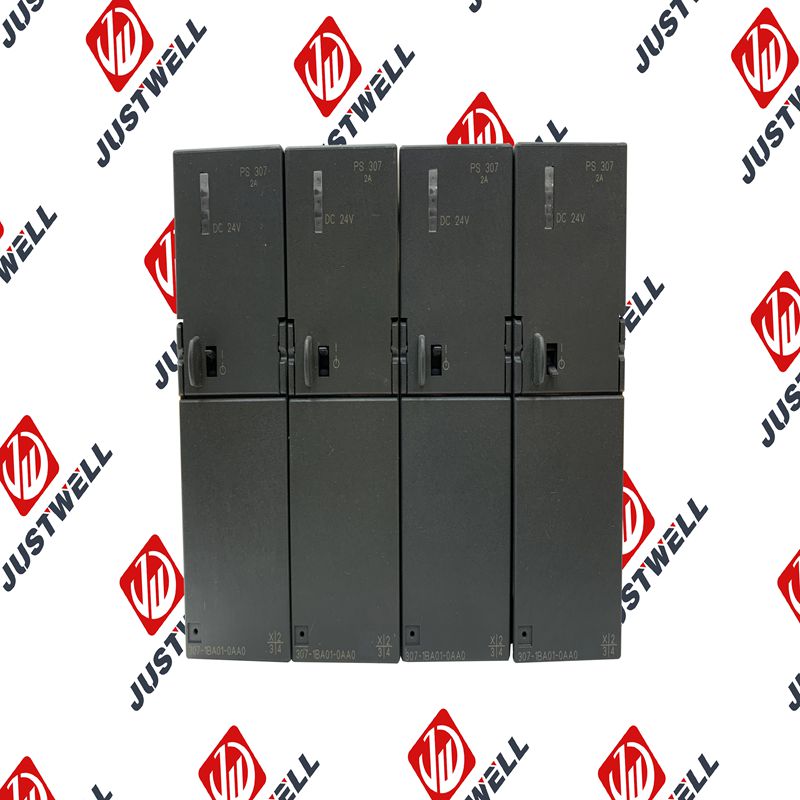

6ES7307-1BA01-0AA0 SIEMENS Power Supply Module

Description

6ES7307-1BA01-0AA0 SIEMENS Power Supply Module

Product Dimensions：

Product Description:

• The Siemens 6ES7307-1BA01-0AA0 is a single-phase, regulated power supply unit for the SIMATIC S7-300 PLC family and associated ET 200M distributed I/O systems. It converts a wide range of AC input voltages (120 V AC or 230 V AC, with automatic range selection) into a stable and regulated 24 V DC output at 2 Amperes (A). This power supply is essential for powering the CPU, communication modules, digital and analog I/O modules, and various 24 V DC field devices connected to the S7-300 system. Its robust design ensures reliable operation in industrial environments.

  Important Note: As of October 1, 2023, this product has entered the phase-out stage (PM400). While still available for spare parts and service, it’s no longer actively produced for new designs.

  Product Parameters

  Here are the key parameters for the Siemens 6ES7307-1BA01-0AA0:

  • Product Type: Regulated Power Supply Unit (PS307)
  • Series: SIMATIC S7-300 / ET 200M
  • Input Voltage:
    • Nominal: 120 V AC or 230 V AC (Automatic range selection)
    • Range: 85 V AC to 264 V AC
  • Input Frequency: 50 Hz or 60 Hz
  • Output Voltage: 24 V DC (Regulated)
  • Output Current: 2 A (Amperes)
  • Output Power: 48 W (Watts)
  • Efficiency: Typically > 80% (at nominal load)
  • Short-Circuit Protection: Yes (electronically protected, short-circuit proof)
  • Overload Protection: Yes
  • Current Limiting: Yes
  • Electrical Connection: Screw terminals
  • Protection Rating: IP20 (suitable for mounting inside a control cabinet)
  • Dimensions (Approximate):
    • Height: 125 mm
    • Width: 40 mm
    • Depth: 120 mm
  • Weight: Approximately 0.358 kg (0.79 lb)
  • Operating Temperature: 0°C to 60°C (32°F to 140°F)
  • Storage Temperature: -40°C to 70°C (-40°F to 158°F)
  • Relative Humidity: 95% without condensation
  • Mounting: Designed for mounting on a SIMATIC S7-300 mounting rail
  • Certifications: CE, UL, CSA, FM Class I Division 2 (for hazardous locations)

  Product Advantages

  • Reliable Power Supply: Provides a stable and regulated 24 V DC output, crucial for the reliable operation of S7-300 CPUs and I/O modules.
  • Automatic Range Selection: The ability to automatically adapt to 120 V AC or 230 V AC input voltages simplifies installation and reduces the need for different models for varying regions.
  • Integrated Protection: Built-in short-circuit and overload protection safeguard both the power supply and connected components from electrical faults.
  • Compact Design: Its slim 40 mm width saves valuable space within control cabinets, allowing for more efficient use of panel real estate.
  • Seamless Integration: Designed specifically for the S7-300 and ET 200M systems, it integrates perfectly into the SIMATIC rack concept.
  • Industrial Durability: Robust construction ensures reliable performance in demanding industrial environments, including wide temperature ranges and resistance to electrical interference.
  • Diagnostics: Often features an LED indicator for output voltage availability, aiding in quick troubleshooting.

  Precautions

  When installing and operating the Siemens 6ES7307-1BA01-0AA0, observe the following critical precautions:

  • Qualified Personnel: All installation, wiring, commissioning, and maintenance must be performed exclusively by qualified and authorized personnel familiar with electrical systems, industrial automation, and relevant safety standards.
  • Power Disconnection: Always ensure all incoming AC power to the power supply unit and the entire S7-300 system is completely disconnected and locked out before performing any wiring or maintenance. Verify zero voltage.
  • Correct Wiring:
    • Connect the AC input correctly according to the provided wiring diagram, observing live (L), neutral (N), and protective earth (PE) connections.
    • Ensure proper wire gauges are used for both AC input and DC output to handle the current load safely.
    • Strictly adhere to local and national electrical codes.
  • Grounding: Proper grounding of the power supply and the entire S7-300 system is essential for safety and to minimize electromagnetic interference (EMI).
  • Ventilation: Install the power supply in a control cabinet with adequate ventilation to ensure proper heat dissipation and prevent overheating. Maintain specified clearance distances.
  • Load Management: Do not exceed the rated 2A output current. Ensure the total current draw of all connected 24 V DC devices (CPU, modules, sensors, etc.) remains within the power supply’s capacity.
  • Environmental Conditions: Operate and store the unit strictly within the specified temperature and humidity ranges. Avoid exposure to direct sunlight, excessive vibration, shock, or corrosive atmospheres.
  • Mounting: Securely mount the power supply onto the designated S7-300 mounting rail.
  • Documentation: Always refer to the official Siemens SIMATIC S7-300 system manuals and the specific datasheet for the 6ES7307-1BA01-0AA0 for detailed installation, wiring, and safety instructions.

  Product Applications

  The Siemens 6ES7307-1BA01-0AA0 power supply is a fundamental component in any automation system utilizing the SIMATIC S7-300 PLC or ET 200M distributed I/O. Its primary application is to reliably power these systems in various industrial settings:

  • General Machine Control: Providing power to PLCs controlling packaging machines, conveying systems, assembly lines, and other automated machinery.
  • Process Automation: Powering S7-300 systems in chemical plants, water/wastewater treatment facilities, food and beverage processing, where stable power is crucial for continuous operation.
  • Building Automation: Supplying power to S7-300 controllers used in HVAC systems, lighting control, and access management in large commercial and industrial buildings.
  • Manufacturing Facilities: Powering control systems for discrete manufacturing processes, robotics, and quality control stations.
  • Test Benches and Labs: Providing reliable 24 V DC power for experimental setups and testing equipment using S7-300 controllers.
