6GK1105-2AC10 SIEMENS Analog output module

Description

6GK1105-2AC10 SIEMENS Analog output module

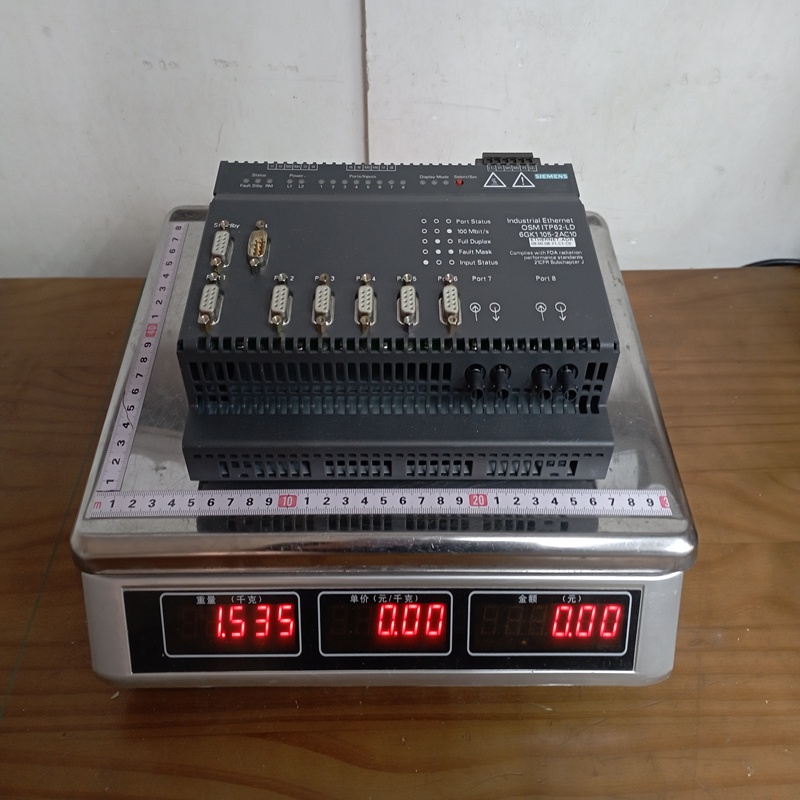

Product Dimensions：

Product Description

The 6GK1105-2AC10 refers to the SIMATIC NET OSM ITP62, which is an Optical Switch Module (OSM) designed for Industrial Ethernet networks. It is a legacy but highly robust industrial managed switch used to bridge copper and fiber optic segments in a Ring topology.

Product Parameters

Key Product Advantages

• Redundancy (High Availability): Supports the “Redundant Ring” structure. If one segment of the ring fails, the OSM reconfigures the network path in milliseconds to prevent downtime.

• Media Conversion: Integrated ability to convert between electrical (ITP) and optical (Fiber) signals, allowing for long-distance communication without external converters.

• Industrial Hardening: Designed specifically for harsh environments with high electromagnetic interference (EMI), where standard commercial switches would fail.

• Fiber Optic Benefits: The fiber ports allow for galvanically isolated connections over long distances (up to 3km with multi-mode fiber), eliminating ground loop issues.

• Signaling Contact: Features a built-in relay contact that can be wired to a PLC input to provide an instant hardware alert if a power failure or link loss occurs.

Product Applications

• Factory Backbone: Used as a central hub to connect various machine cells via fiber optic rings.

• Long-Distance Networking: Connecting remote buildings or distant sections of a production plant where copper cable distance limits (100m) are exceeded.

• High-Interference Areas: Ideal for deployment near large motors or high-voltage equipment where electrical interference would corrupt data on copper wires.

• Legacy System Maintenance: Frequently used in older S7-300/S7-400 installations that rely on Industrial Twisted Pair (ITP) cabling standards.

Important Usage Notes (Precautions)

• Legacy Speed (10 Mbps): This module operates at 10 Mbps. It is not compatible with modern 100 Mbps (Fast Ethernet) or 1000 Mbps (Gigabit) devices unless they support auto-negotiation down to 10 Mbps.

• ITP Connectors: This module uses ITP (Industrial Twisted Pair) connectors, which are different from standard RJ45 connectors. You may need specific Siemens ITP cables or adapters to connect standard Ethernet devices.

• Fiber Type: Ensure you are using 62.5/125 $\mu$m or 50/125 $\mu$m multi-mode glass fiber. Single-mode fiber is not compatible with the BFOC ports on this unit.

• Redundancy Manager: In a ring topology, one (and only one) switch in the ring must be configured as the Redundancy Manager via the DIP switches or software.

Network Configuration Tip

When setting up a redundant ring:

1. Connect the fiber ports of Switch A to Switch B, B to C, and C back to A.

2. Set the DIP switch for “RM” (Redundancy Manager) to ON on only one switch.

3. Ensure all other switches have “RM” set to OFF.
