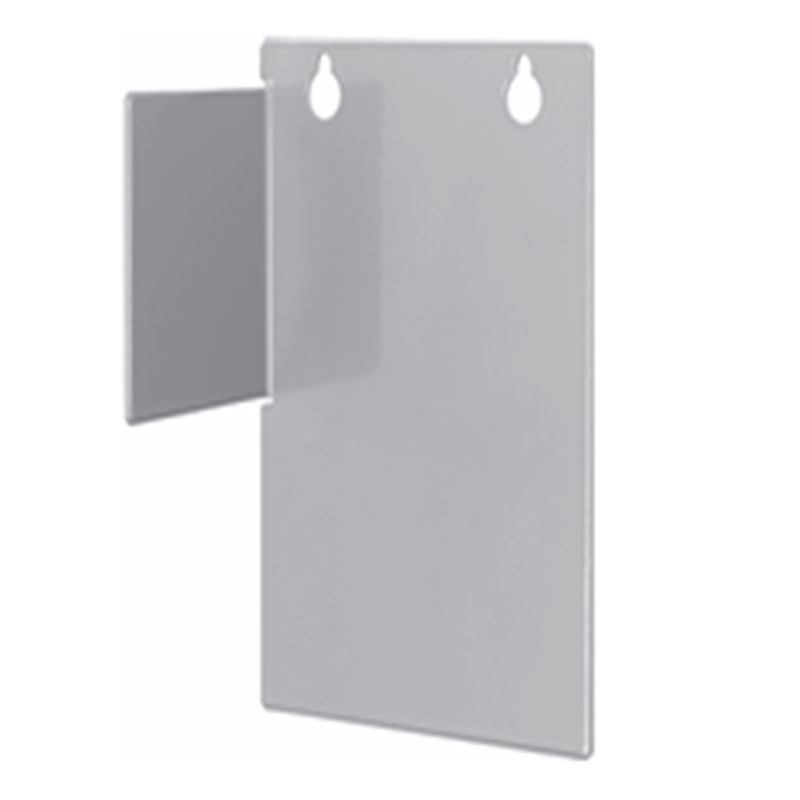

7AC010.9 B&R ACOPOS Servo Drive Cooling Unit

Description

7AC010.9 B&R ACOPOS Servo Drive Cooling Unit

Product Dimensions：

Product Description

The B&R 7AC010.9 is not a functional module like a power supply or I/O card, but rather an accessory for the B&R System 2003 series. Specifically, it’s a bus cover plate. This simple yet crucial component is designed to be placed on the first open bus slot of a System 2003 module rack. Its primary function is to protect the last installed module from physical damage and to shield the bus backplane from environmental hazards like dust and debris. The 7AC010.9 is sold in a package containing five bus cover plates.

Specifications

• Product Type: Accessory (Bus Cover Plate)
• Part Number: 7AC010.9
• Compatibility: B&R System 2003 module racks
• Package Contents: 5 pieces

Advantages

• Enhanced System Protection: The primary advantage is the protection it provides to the exposed backplane bus of the X20 system. It prevents the ingress of dust, dirt, and other contaminants that could lead to system malfunctions or short circuits.
• Physical Safety: It shields the last module from accidental physical impact, which is particularly important in industrial environments where machinery and personnel are in close proximity to control cabinets.
• Easy Installation: As a simple cover plate, it is quick and easy to install on any empty slot, requiring no special tools.

Precautions

• Obsolete System: The B&R System 2003 is a legacy product line. While the 7AC010.9 is an accessory for it, it’s important to note that you may need to source these parts from a surplus market as they are no longer actively manufactured.
• Not a Functional Module: The 7AC010.9 does not have any electronic function. Its sole purpose is as a protective cover. It will not provide power, communication, or I/O capabilities.
• Proper Placement: The bus cover should always be installed on the first free slot of the module rack to ensure the entire backplane is protected and the bus communication is terminated correctly.

Product Applications

The B&R 7AC010.9 is used in any automation system that utilizes the B&R System 2003 series. Its applications include:

• Legacy Industrial Control Systems: Maintaining and repairing existing machines and plants that were built with the System 2003 platform.
• Control Panel Assembly: Finishing the setup of a B&R System 2003 module rack by covering any unused slots to protect the system.
