800H-1HAM4RL Allen-Bradley Assembled Pushbutton Station

Description

800H-1HAM4RL Allen-Bradley Assembled Pushbutton Station

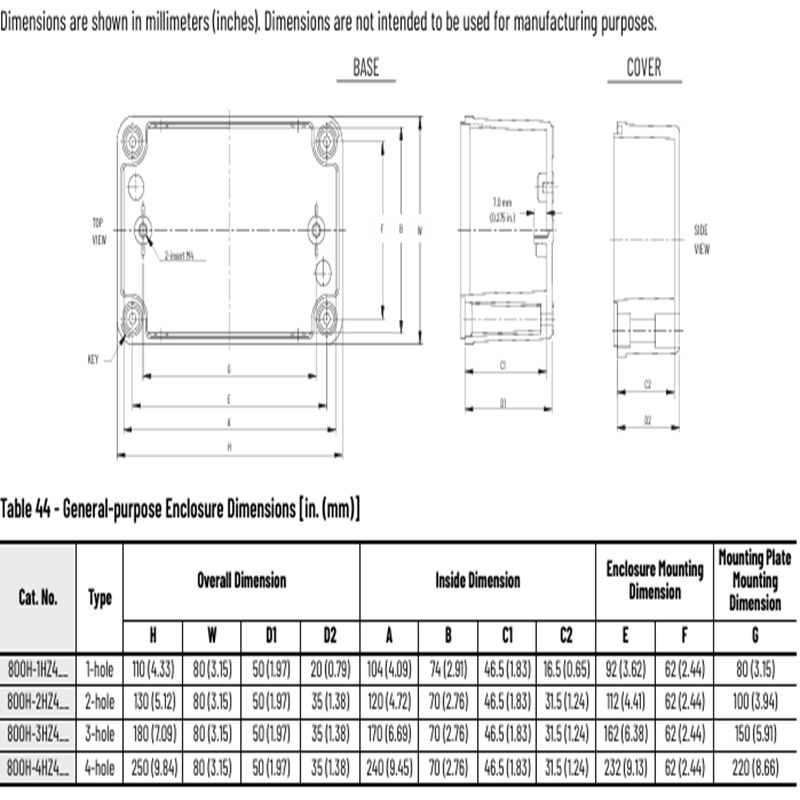

Product Dimensions：

Product Description

This push button is a complete, assembled unit, meaning it includes the operator, contact block, and light module. The mushroom head design is a key feature, making it easy to activate, even with gloved hands. It typically features a maintained or push-pull action, where you push to activate and pull to deactivate. The “4RL” in the part number indicates a red lens and a specific contact configuration, often including normally open (NO) and normally closed (NC) contacts. The illumination function provides a clear visual status of the machine or process it controls.

Product Parameters

• Series: 800H
• Operator Type: Illuminated Mushroom Head Push Button
• Mounting Hole Size: 30mm
• Color: Red (as indicated by “R” in the part number)
• Action: Maintained or Push-Pull
• Contact Blocks: Typically includes one NO and one NC contact block, but can vary.
• Illumination: Transformer-based or full-voltage lamp holder, depending on the specific model.
• Enclosure Rating: NEMA 4/13, IP65 (depending on the specific part number and environment)
• Operating Temperature: Typically -25°C to 70°C (-13°F to 158°F)
• Mechanical Life: High, rated for hundreds of thousands of operations.
• Electrical Ratings: Varies, but commonly rated for 600V AC/DC.

Product Advantages

• Robust and Durable: Designed for heavy-duty industrial applications, the 800H series is known for its rugged construction and long service life.
• High Visibility: The illuminated red mushroom head makes it easy to locate and identify the control, even in low-light conditions. The red color often signifies an emergency stop or a critical function.
• Easy to Use: The large mushroom head is simple to press, even when wearing safety gloves, which is crucial for operator safety and efficiency.
• Versatile: The modular design of the 800H series allows for easy customization and modification of contact blocks and light modules.
• Safety Features: The maintained or push-pull action ensures that the operator remains in the activated state until it’s manually reset, which is essential for certain safety-critical applications.

Important Notes

• Installation: Always ensure the push button is installed according to the manufacturer’s instructions and local electrical codes. Proper mounting and wiring are essential for safe and reliable operation.
• Power: Verify that the supply voltage matches the rating of the light module or transformer. Incorrect voltage can damage the light bulb or module.
• Maintenance: Regularly inspect the push button for any signs of physical damage or wear. Clean the surface to ensure clear visibility of the indicator light.
• Application: This push button is specifically designed for industrial control panels. It is not suitable for high-vibration environments without proper mounting.

Product Applications

The 800H-1HAM4RL is widely used in a variety of industrial settings, including:

• Emergency Stop Systems: The red color and prominent mushroom head make it an ideal choice for emergency stop functions on machinery.
• Industrial Machinery: Used on control panels for starting, stopping, and controlling various machines like conveyors, pumps, and presses.
• Process Control: Can be used in process control applications to manually activate or deactivate specific operations.
• Motor Control Centers (MCCs): Often integrated into MCC panels for local control of motors and other equipment.
• Manufacturing and Automation: A staple component in automated systems for operator interface and manual intervention.
