80MPD5.300S014-01 B&R Industrial modules

Description

80MPD5.300S014-01 B&R Industrial modules

Product Dimensions：

Product Description

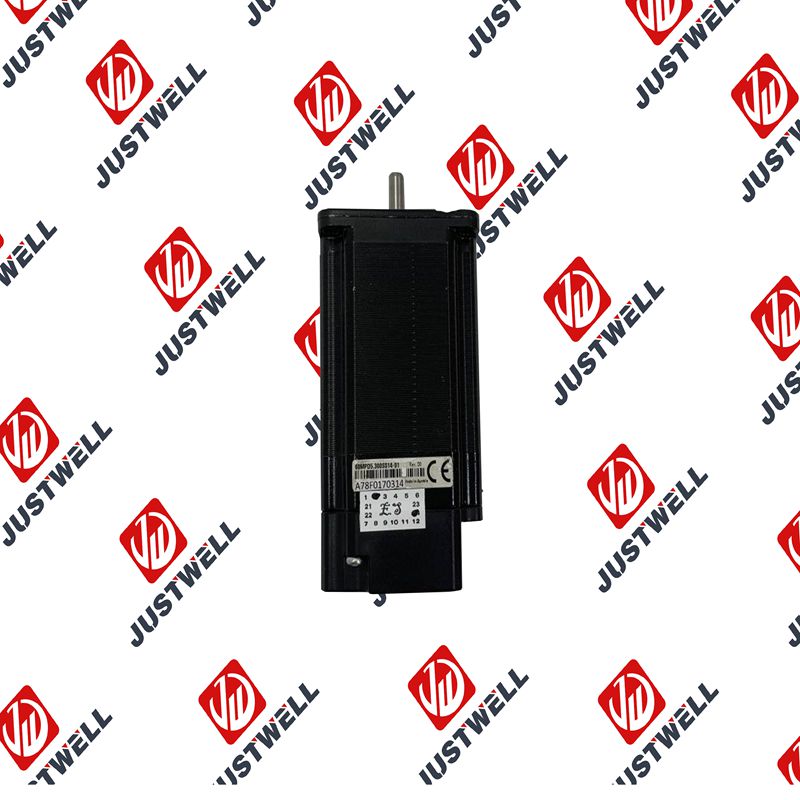

The B&R 80MPD5.300S014-01 is a 2-phase hybrid stepper motor from the 80M Stepper Motors series. It is a high-performance motor designed for industrial applications that require precise and repeatable motion control. The “80M” in the product name refers to the motor series, which is known for its compact design without sacrificing performance. The “D” in the part number indicates it comes with an incremental encoder, which is crucial for applications that need position feedback.

This stepper motor is built with a robust, hybrid design that combines a steel rotor with permanent magnets. This allows it to deliver a strong torque output in a compact form factor. A key feature is its 1.8-degree stepping angle, which enables fine control over an object’s movement. It also supports both series and parallel wiring options, providing flexibility for different application power requirements. The integrated incremental encoder provides a resolution of 1024 increments per rotation, allowing for accurate position monitoring.

Product Parameters

• Series: 80M Stepper Motors
• Type: 2-phase hybrid stepper motor
• Flange Size: 56.4 mm
• Motor Length: 101.5 mm
• Stepping Angle: 1.8 degrees
• Holding Torque: 3.0 Nm
• Stall Torque: 2.2 Nm
• Wiring Options: Series and Parallel
• Series Current: 3 A
• Parallel Current: 6 A
• Encoder: Integrated incremental encoder (3 outputs: A, B, R) with 1024 increments/revolution
• Maximum Surface Temperature: 95°C
• Protection Class: IP20
• Insulation Class: B (130°C)

Product Advantages

• High Precision: The small 1.8-degree stepping angle, combined with the integrated encoder, provides a high degree of precision for motion control, making it ideal for tasks that require accurate positioning.
• Compact and Powerful: The hybrid design offers robust torque capabilities in a small footprint, which is a great advantage for applications with tight space constraints.
• Flexible Wiring: The ability to be wired in either series or parallel gives you the flexibility to match the motor’s performance to the specific power requirements of your application.
• Integrated Feedback: The built-in incremental encoder provides reliable position feedback, which is essential for closed-loop control systems and ensuring accuracy.

Important Notes

• System Compatibility: This motor is typically used with B&R’s motion control products and is often driven by a compatible B&R stepper motor driver. It’s not a standalone device and requires a suitable control system.
• Operating Environment: While it has a high maximum surface temperature, the IP20 rating means it is only protected against solid objects and should be installed in an environment free from dust, moisture, and other contaminants.
• Sizing: To ensure optimal performance and longevity, it’s crucial to select the correct wiring configuration (series or parallel) and a motor driver that can provide the specified current and voltage for your application.

Product Applications

The 80MPD5.300S014-01 is suitable for a wide range of industrial applications that demand precise, controlled motion.

• Robotics: Used for the accurate and repeatable movement of a robot’s joints or end-effectors.
• Medical Devices: Employed in medical equipment for precise fluid dispensing or sample handling.
• Printing and Labeling: Provides fine control for the movement of print heads or the feeding of materials.
• Pick-and-Place Systems: Ensures accurate positioning for automated pick-and-place tasks on assembly lines.
