80SD100XD.C0XX-21 B&R Stepper motor module

Description

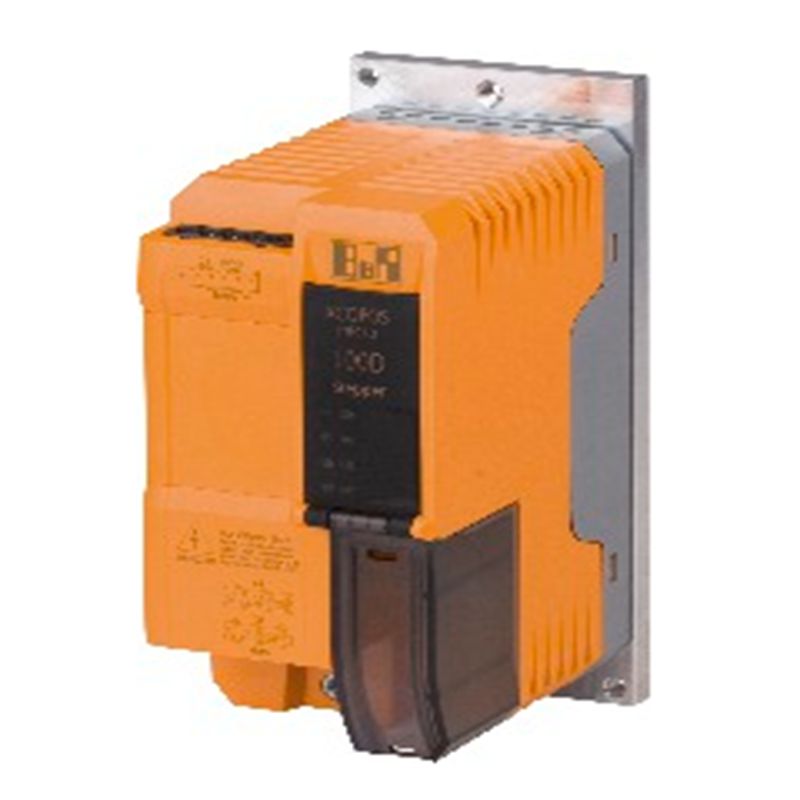

80SD100XD.C0XX-21 B&R Stepper motor module

Product Dimensions：

Product Description

The B&R 80SD100XD.C0XX-21 is a high-performance ACOPOSmicro stepper motor module. It serves as a compact and integrated solution for controlling stepper motors within a B&R automation system. This module is designed to provide precise and dynamic control of up to two stepper motors, making it a key component for applications that require accurate positioning and speed control. Its seamless integration with the B&R X2X Link interface ensures efficient communication and synchronization with other system components.

Product Parameters

The 80SD100XD.C0XX-21 stepper motor module is characterized by the following technical specifications:

• Product Type: ACOPOSmicro Stepper Motor Module
• Interface: X2X Link
• Supply Voltage: 24-64 VDC (+/- 25%)
• Motor Connections: Provides two connections for stepper motors.
• Continuous Current: Up to 10 A
• Digital Inputs: Two digital inputs at 24 VDC (sink)
• Digital Outputs: One digital output at 24 VDC, 1 A
• Analog Inputs: Two analog inputs at +/- 10 V

Product Advantages

The B&R 80SD100XD.C0XX-21 offers several key benefits for industrial automation:

• Integrated Solution: Its design as a single module for two motors simplifies machine design and reduces wiring complexity.
• Precision Control: The module provides highly accurate and repeatable control for stepper motors, crucial for precise motion tasks.
• Compact Design: Its small form factor allows for efficient use of space in control cabinets and machine frames.
• Seamless B&R Integration: As part of the B&R ecosystem, it integrates flawlessly with B&R controllers and software, simplifying configuration and programming.
• High Performance: With a continuous current of up to 10 A and high-speed communication via X2X Link, it’s suitable for demanding applications.

Applications

This stepper motor module is an excellent choice for a variety of industrial applications that require precise, controlled, and synchronized motion:

• Pick-and-place robots: For precise component handling and assembly.
• CNC machines: For controlling the movement of axes in a cost-effective manner.
• Printing and labeling equipment: For accurate positioning of materials and print heads.
• Packaging machinery: For precise feeding, cutting, and sealing operations.
• Material handling: For conveyor systems and automated sorting.

Precautions

To ensure the safe and reliable operation of the 80SD100XD.C0XX-21 module, consider the following precautions:

• Proper Power Supply: Use a stable and correctly specified power supply within the 24-64 VDC range.
• Wiring and Shielding: Follow B&R’s wiring guidelines, using shielded cables to prevent electrical noise and signal interference.
• Heat Dissipation: Ensure adequate ventilation around the module to prevent overheating, especially when operating at high currents.
• Correct Stepper Motors: Use compatible stepper motors that match the module’s voltage and current specifications.
• Documentation: Always refer to the official B&R user manual for detailed installation, configuration, and troubleshooting instructions.
