8BVF0220H000.000-1 B&R line filter module

Description

8BVF0220H000.000-1 B&R line filter module

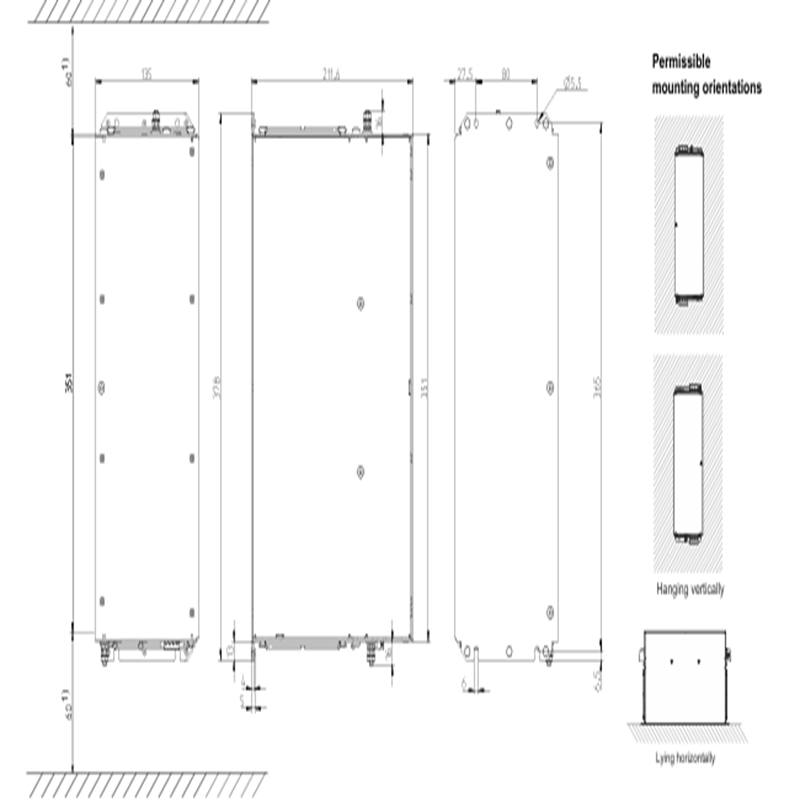

Product Dimensions：

Product Description

The B&R 8BVF0220H000.000-1 is a line filter module from the ACOPOSmulti series. It’s an essential component for high-performance motion control systems, specifically designed to be used with the ACOPOSmulti family of servo drives. Its primary purpose is to filter the incoming AC power supply, ensuring clean power and reducing electromagnetic interference (EMI).

This line filter module is designed to sit between the mains power supply and the ACOPOSmulti power supply module. By effectively filtering the input voltage, it prevents a wide range of electrical noise from affecting the sensitive electronics of the servo drive system. The module is engineered to handle a broad range of input voltages and provides a stable, clean power source.

Product Parameters

• Series: ACOPOSmulti
• Product Type: Line Filter
• Input Voltage: 3 x 220–480 V AC
• Input Frequency: 50/60 Hz
• Nominal Current: 22.5 A
• Compatibility: Designed for allocation to ACOPOSmulti power supply modules, such as 8BVP0220HC00.000-1.
• Compliance: Meets industrial EMC standards, such as CISPR 11, Group 2, Class A.

Product Advantages

• EMC Compliance: The filter ensures that the drive system complies with industrial electromagnetic compatibility standards, which is crucial for preventing interference with other equipment and for passing certification.
• System Stability: By providing a clean power supply, it enhances the overall stability and reliability of the servo drive system, reducing the risk of unexpected faults or shutdowns caused by electrical noise.
• Protection of Electronics: The module protects the sensitive internal components of the servo drives from voltage spikes and other power quality issues, helping to prolong the lifespan of the equipment.
• Seamless Integration: As a dedicated component of the ACOPOSmulti series, it is designed for perfect electrical and physical compatibility, making installation and setup straightforward.

Important Notes

• System Specificity: This line filter is designed exclusively for use with B&R’s ACOPOSmulti servo drives. It is not a standalone component and will not function with other drive systems.
• Installation: Installation should be performed by qualified personnel. It must be wired correctly between the mains power and the ACOPOSmulti power supply module.
• Current Rating: The 22.5 A current rating must be appropriately sized for the connected system. Exceeding this rating can lead to system malfunction or damage.

Product Applications

The 8BVF0220H000.000-1 is an essential part of any high-performance motion control system that uses ACOPOSmulti drives, especially in environments where power quality is a concern or where strict EMC standards must be met.

• Machine Tools: Ensures the precise and reliable operation of CNC machines by providing a stable power source.
• Packaging and Printing: Used in high-speed, synchronized motion control applications where a clean power supply is vital for accuracy.
• Robotics: Protects the sensitive electronics of multi-axis robots from electrical noise, ensuring consistent and precise movements.
• General Automation: A fundamental component in a wide range of automation systems that rely on ACOPOSmulti drives for motion control.
