8B0C0160HW00.001-1 B&R AC Synchronous Servo Motor (8LS Series)

Description

8B0C0160HW00.001-1 B&R AC Synchronous Servo Motor (8LS Series)

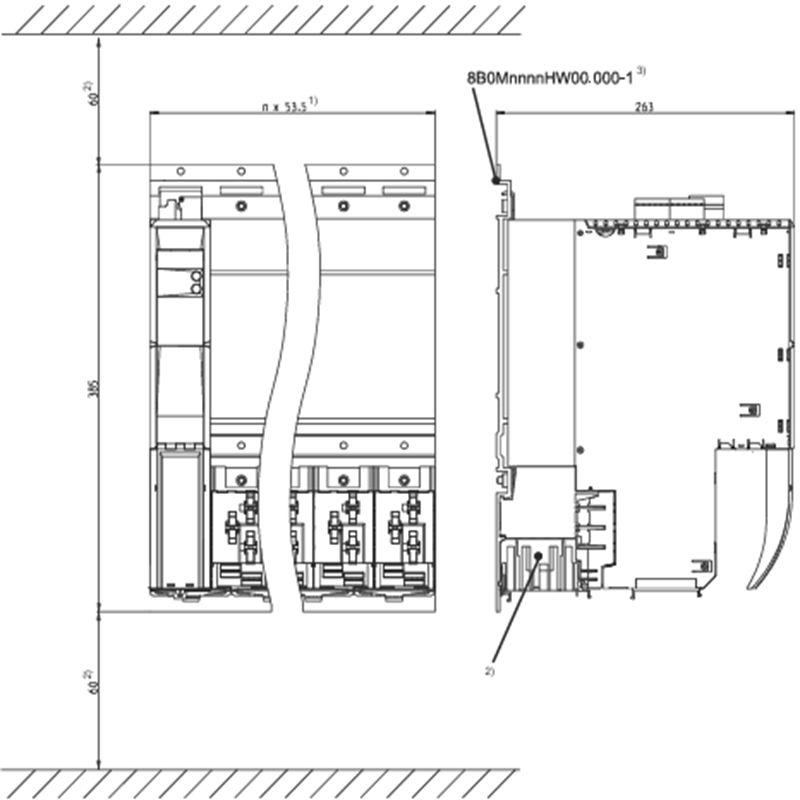

Product Dimensions：

Product Description

The B&R 8B0C0160HW00.001-1 is an ACOPOSmulti auxiliary supply module, a key component designed for B&R’s ACOPOSmulti drive system. This module is a voltage inverter that converts the high-voltage DC bus (up to 750 VDC) of the drive system into two separate 24 VDC outputs. It is engineered for wall mounting, offering a robust and space-saving solution for industrial environments.

This auxiliary supply module is crucial for powering external 24 V devices, such as sensors, control systems, and I/O modules, directly from the ACOPOSmulti drive’s DC bus. Its dual outputs—one rated for a continuous current of 16 A and the other for 5 A—provide flexible and optimized power distribution for various components within a machine or plant.

Product Parameters

Advantages

• Efficient Power Distribution: This module simplifies system architecture by powering 24 VDC devices directly from the ACOPOSmulti drive’s high-voltage DC bus, eliminating the need for separate, bulky power supplies.
• Dual-Output Flexibility: With two outputs rated at 16 A and 5 A, it allows you to efficiently distribute power to different components based on their specific current needs.
• Safety and Reliability: The module is built with extensive protection features, including short-circuit, overload, and overtemperature protection, to ensure the safety and longevity of your connected equipment.
• Seamless Integration: As a dedicated accessory for the ACOPOSmulti series, it is designed for straightforward mechanical and electrical integration, making installation and commissioning quick and easy.

Precautions

• System Compatibility: This module is designed exclusively for the B&R ACOPOSmulti drive system and should not be used with other drive series or automation platforms.
• Professional Installation: Due to the high DC bus voltage, installation and maintenance must be carried out by qualified personnel who are trained in industrial electrical safety standards.
• Required Accessories: The module requires specific terminal block sets (e.g., 8BZ0C016000.001-1A) for wiring, which must be ordered separately.
• Legacy Product: Please note that the 8B0C0160HW00.001-1 is a legacy product. While it may be available from surplus suppliers, the original manufacturer’s warranty and support may no longer be available.

Product Applications

The B&R 8B0C0160HW00.001-1 is used in a wide range of industrial automation applications that rely on the ACOPOSmulti drive system. Its main uses include:

• Machine and Plant Engineering: Providing a reliable 24 VDC power source for I/O modules, sensors, and actuators in multi-axis motion control systems.
• High-Power Servo Systems: Powering control electronics, fans, and other low-voltage components within a high-voltage servo drive system.
• Automated Production Lines: Supplying power for auxiliary devices on conveyor systems, assembly lines, and packaging machines.
• Robotics: Powering the control and sensor technology of robotic systems, drawing power from the main servo drive bus.
