8MSA3L.E2-73 B&R Processor module

Description

8MSA3L.E2-73 B&R Processor module

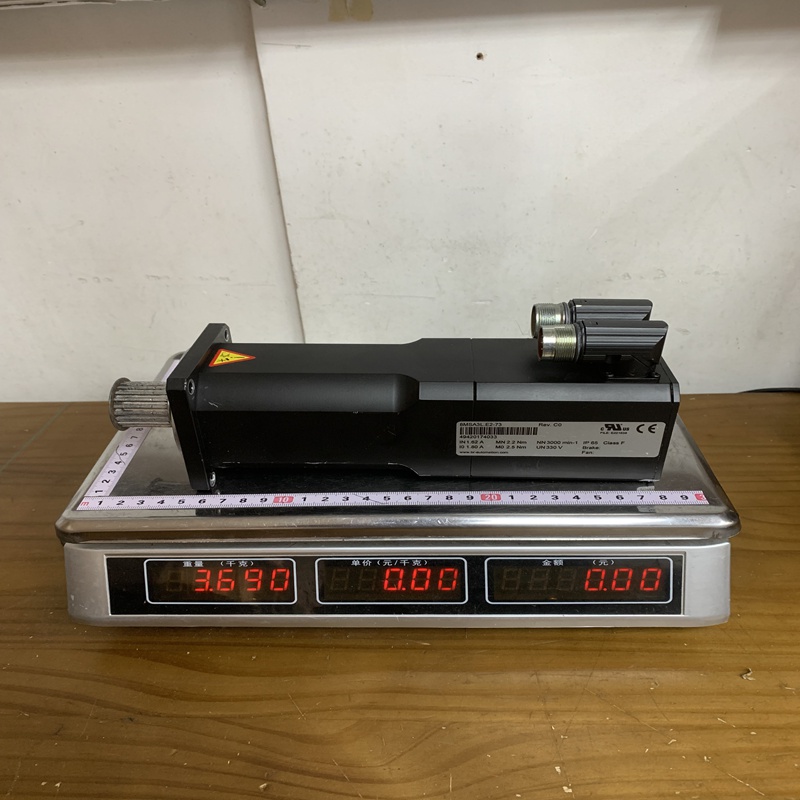

Product Dimensions：

Product Description

The 8MSA3L.E2-73 is a brushless, permanent-magnet synchronous motor designed for high-dynamic motion control applications. The “8MSA” prefix identifies it as a standard performance motor, while the specific configuration (L.E2-73) typically indicates a specific frame size, winding type, and integrated feedback system (often an EnDat encoder) designed to work seamlessly with B&R’s ACOPOS drive systems.

Product Parameters

Product Advantages

• High Dynamics: Exceptional torque-to-weight ratio allows for rapid acceleration and deceleration cycles.

• Precision Feedback: Integrated EnDat encoders provide high-resolution positioning data, essential for sub-micron accuracy in CNC or robotic tasks.

• Integration: Designed for “Plug and Play” operation with B&R ACOPOS drives; the drive automatically recognizes the motor’s “Electronic Nameplate” parameters.

• Compact Footprint: The “L” length provides a slim profile, allowing it to fit into tight machine compartments without sacrificing torque.

Key Considerations (Precautions)

• Thermal Management: Ensure the motor is mounted to a metal surface that acts as a heat sink. Overheating can demagnetize the internal permanent magnets.

• Cable Shielding: Always use B&R pre-assembled motor and encoder cables. Poor shielding can cause signal noise in the EnDat interface, leading to “Encoder Fault” errors.

• Mechanical Alignment: Improper coupling with the gearbox or load can lead to bearing failure or shaft snapping due to radial/axial stress.

• Shaft Seal: If used in environments with liquids (oil/coolant), ensure the shaft seal is maintained to prevent ingress into the motor housing.

Product Applications

The 8MSA3L.E2-73 is ideal for high-speed, high-precision industrial sectors:

• Packaging Machinery: For precise film tensioning, bagging, and labeling at high cycles per minute.

• Printing Industry: Synchronizing multiple axes for high-speed color alignment.

• Semiconductor Manufacturing: Used in pick-and-place robots and wafer handling where vibration must be minimized.

• Textile Machines: Controlling yarn tension and high-speed needle movements.
