8V1045.00-2 B&R ACOPOS Servo Drive Module

Description

8V1045.00-2 B&R ACOPOS Servo Drive Module

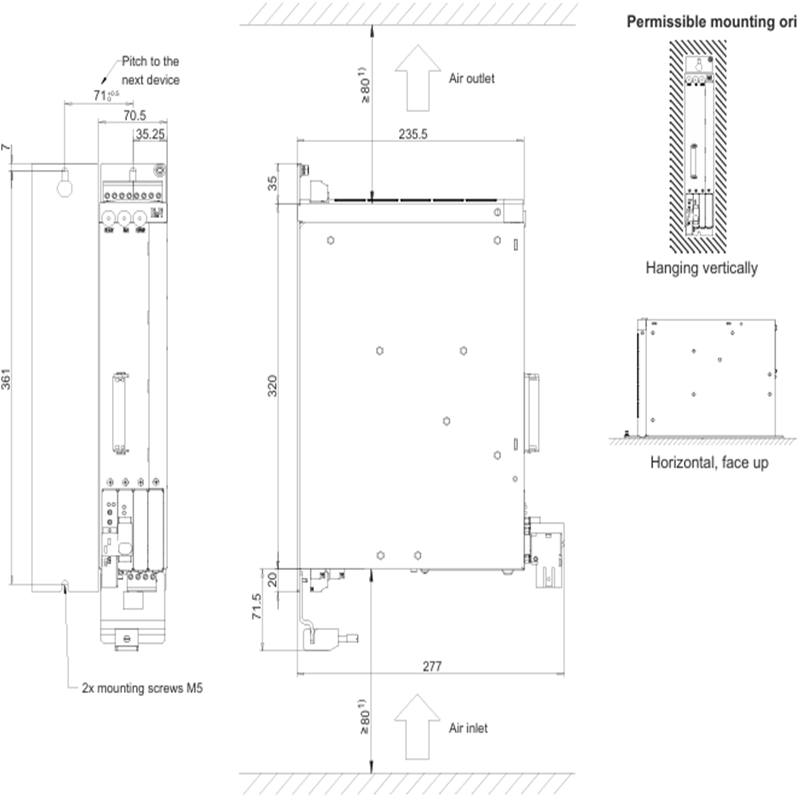

Product Dimensions：

Product Description

The B&R 8V1045.00-2 is an ACOPOS servo drive. This is a high-performance, single-axis drive designed for precise motion control applications. It is a core component of B&R’s automation solutions, used to control brushless servo motors with high accuracy and dynamic response. The drive is an all-in-one unit that includes the power supply, control electronics, and a safety function.

This servo drive is a robust device for controlling a single servo motor. It features an integrated line filter to handle incoming power, a built-in braking resistor for managing regenerative energy, and an electronic secure restart inhibit safety function. This combination simplifies the wiring and cabinet layout by reducing the need for external components. It is designed to work with 3-phase AC power and is compatible with a wide range of B&R’s motion control products and software

Product Parameters

• Series: ACOPOS
• Product Type: Single-axis servo drive
• Input Voltage: 3 x 400-480 V AC
• Nominal Output Current: 4.4 A
• Rated Power: 2 kW
• Integrated Components:
  • Line filter
  • Braking resistor
  • Electronic secure restart inhibit
• Motor Feedback: Typically uses a resolver for motor position feedback.
• Network Slots: The drive has slots for plug-in modules to add network communication, such as POWERLINK.

Product Advantages

• High Performance: Provides extremely precise and dynamic control of servo motors, making it suitable for demanding applications that require fast acceleration and deceleration.
• Integrated Functionality: The integrated line filter, braking resistor, and safety functions reduce the need for external components, which saves space in the control cabinet, simplifies wiring, and lowers overall system costs.
• Reliability and Safety: The integrated safety features and robust design ensure reliable operation and enhance machine safety.
• Ease of Integration: It is part of the comprehensive B&R automation platform, so it seamlessly integrates with B&R controllers and development software.

Important Notes

• Phase-Out Status: This product is listed as “Phase-Out” by some distributors. This means it may no longer be in active production and is likely being replaced by newer models. You should consider newer B&R servo drives for new designs, and be aware that finding new spare parts for the 8V1045.00-2 may be difficult.
• System Compatibility: This drive is designed to work with B&R control systems and software. It’s not a standalone component and requires a compatible B&R controller for programming and operation.
• Sizing: The drive’s power rating and current capacity must be correctly sized for the motor and application to ensure optimal performance and prevent damage.

Product Applications

The 8V1045.00-2 servo drive is an excellent choice for a variety of industrial applications that require accurate and dynamic motion control.

• Robotics: Used for controlling the individual joints of industrial robots.
• Machine Tools: Provides precise control of the axes on CNC machines.
• Packaging Machinery: In high-speed packaging lines for accurate product handling and sealing.
• Printing and Converting: Ensures synchronized and precise motion of rollers and cutters in printing presses and converting machines.
