92-01670-01 EATON Control panel

Description

92-01670-01 EATON Control panel

Product Dimensions：

Product Description

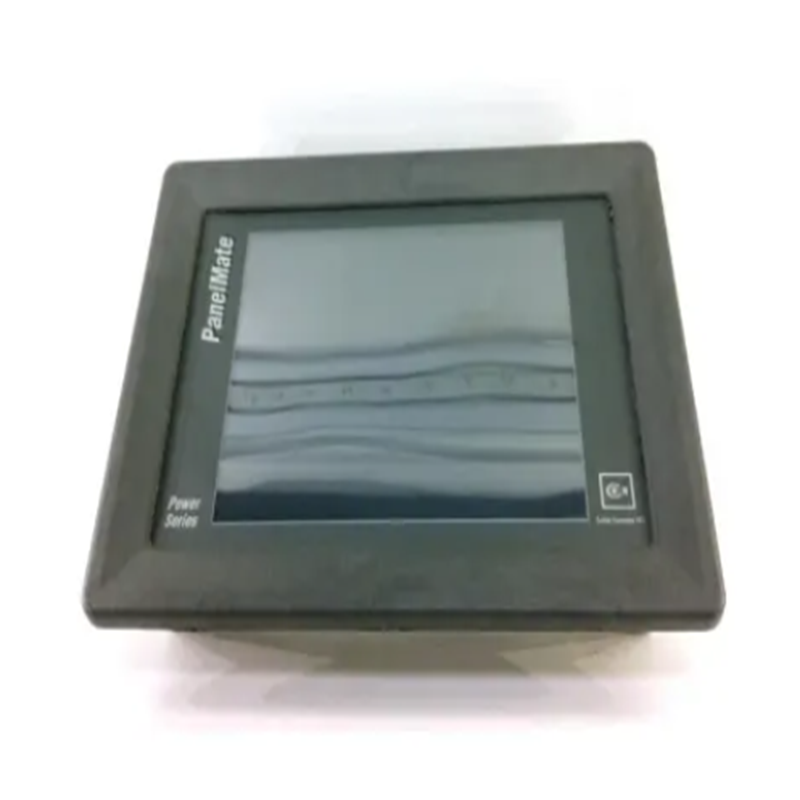

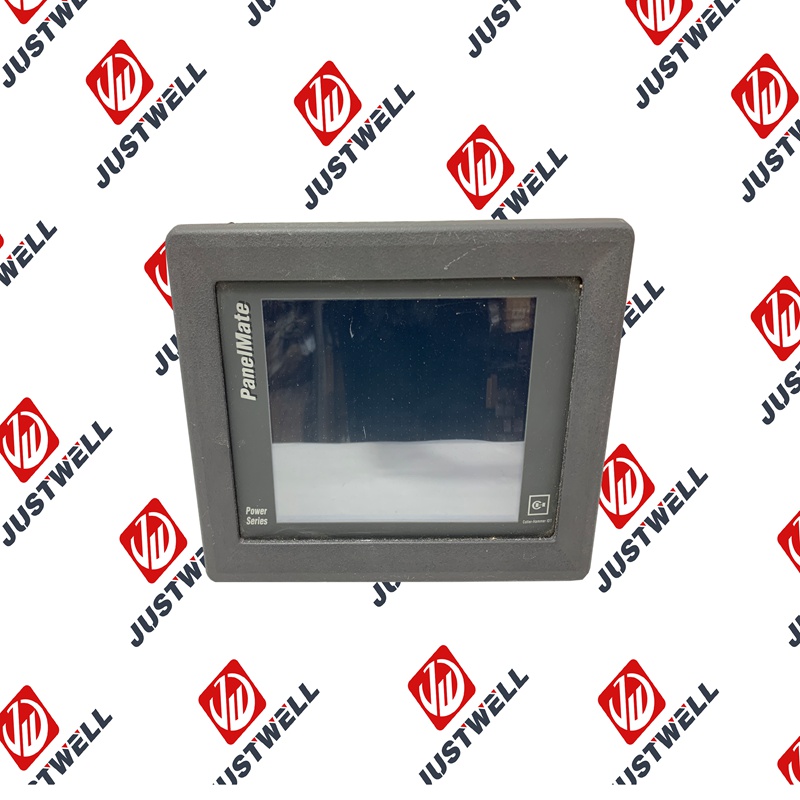

The Eaton 92-01670-01 is an industrial-grade operator interface panel from Eaton’s PanelMate 92* series. It’s also referred to as a PanelMate 1500 (1575PM) touch-screen display module, designed to offer intuitive HMI capabilities for process control systems.rochesterindustrialservices.comDO Supply

Product Specifications (Parameters)

• Series & Type: Operator panel in PanelMate 92** family

• Input Voltage: 24 V DC

• Current Draw: 0.5 A typica

• Power Consumption: Approx. 12 W

• Inrush Current: 35 A peak for up to 15 µs

• Display: Touch-screen technology, field-replaceable backlight

• Serial Ports:

  • Port 2: RS-232 only

  • Port 1: Dual RJ-11 interface, selectable RS-232 or RS-422/485 (one active at a time)

  • Baud rate: 110–19,200 baud

• Processor: 16 MHz, 16-bit microprocessor

• Memory: Battery-backed NVRAM (lithium battery rated for ~10 years

• Heat Dissipation: Generates approximately 41 BTU/hr

• Weight: Around 5 lb (≈ 4.3 lb per some sources)

• Operating Temperature: 0 °C to 50 °C; Storage: −20 °C to 60 °C

• Humidity Range: Relative humidity between 20% and 80%

• Environmental Rating: NEMA 4X protection when properly mounted in appropriate enclosure

Product Advantages

• Touch-Screen Interface: Enhances operator usability and reduces dependency on physical buttons

• Flexible Communication Ports: Supports both RS-232 and RS-422/485 via configurable serial interfaces

• Non-Volatile Memory: Battery-backed NVRAM preserves critical data/config even during power loss, with a long battery life (~10 years)

• Field-Serviceable Components: The backlight is replaceable in the field, simplifying maintenance

• Industrial-Grade Design: Rugged enclosure rated NEMA 4X ensures protection against harsh industrial environments

• Broad Temperature & Humidity Tolerance: Suitable for a wide range of industrial settings (0–50 °C, 20–80% RH)

Caution / Handling Notes

• Temperature Limits: Operating outside the 0–50 °C range may shorten the lifespan of the device or affect performance

• Humidity Sensitivity: Keep humidity within 20–80% to prevent internal condensation or damage

• Correct Mounting Required: To ensure NEMA 4X protection, mount inside a suitable enclosure per Eaton’s guidelines

• Power Input Consideration: The high inrush (35 A) requires that power supply infrastructure supports brief surge without disruption

• Warranty Notice: If sourcing from third-party suppliers (e.g., DO Supply or Electrical.com), note that OEM warranties may not apply; extended warranties come from the seller, not Eaton

Product Applications

• Industrial HMI Panel: Ideal for process control systems requiring touchscreen operator input with PLC interfacing

• PanelMate HMI Integration: Common component in Eaton’s PanelMate-series-based control systems, offering visual process monitoring and command input

• PLC System Interfaces: Compatible with multiple serial communication standards to connect with a variety of controller platforms

• Environment-Adaptable Control Stations: Suitable for industrial enclosures, operator booths, or machine mount locations requiring protected interface solutions
