A06B-6059-H208 GeneralElectric I/O module

Description

A06B-6059-H208 GeneralElectric I/O module

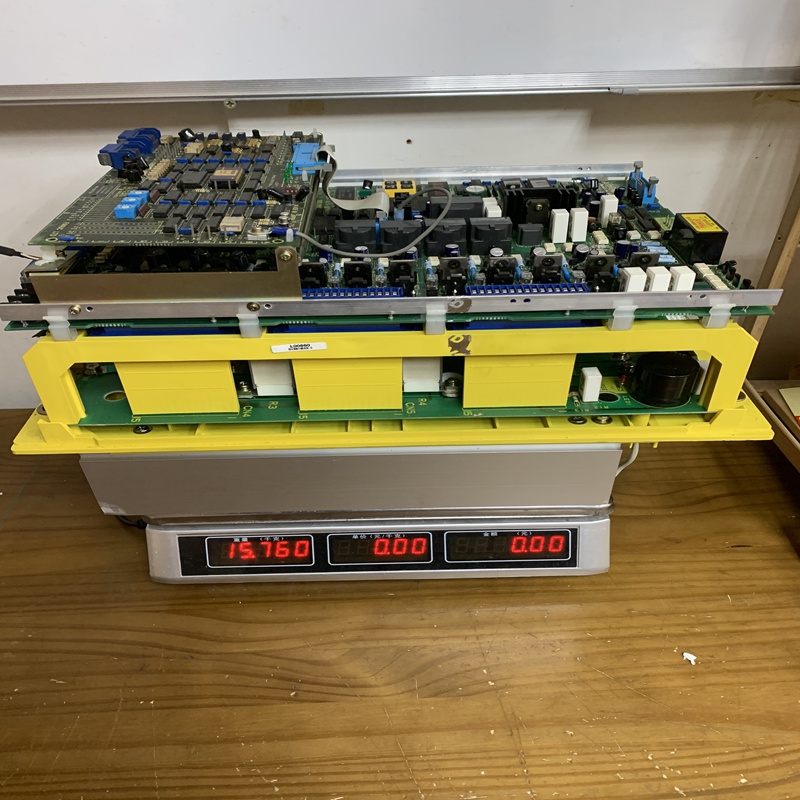

Product Dimensions：

Product Description

The A06B-6059-H208 is a “S-Series” digital AC spindle amplifier. This unit acts as the power interface between the CNC controller and the spindle motor. It receives digital signals from the CNC and converts them into high-precision electrical power to drive the motor. It is known for its reliability in medium-sized machine tools and is recognized for its distinctive yellow casing, typical of GE Fanuc automation components from its era.

Product Parameters

• Input Voltage: 200–230V AC (+10%, -15%) at 50/60Hz

• Rated Output Current: Approximately 31–45 Amps (depending on specific motor pairing)

• Motor Compatibility: Designed for Fanuc AC Spindle Motors (Model 8S and similar)

• Control Type: Digital microprocessor-based PWM control

• Cooling Method: Natural convection or forced air (external fan)

• Interface: Digital fiber optic or copper link depending on the CNC generation

• Output Power: Rated for approximately 7.5kW to 11kW continuous duty

Product Advantages

• High Precision: Offers exceptionally smooth rotation and precise speed control, which is essential for achieving high-quality surface finishes in milling and turning.

• Rapid Acceleration/Deceleration: Designed to handle frequent speed changes and quick stops, improving the overall cycle time of the machining process.

• Thermal Stability: Features robust internal heat sinks and thermal monitoring to prevent performance degradation during long-shift industrial operations.

• Compact Integration: The modular design allows it to fit neatly into standard GE Fanuc control cabinets alongside other axis drives.

• Comprehensive Diagnostics: The unit includes a built-in 7-segment LED display that provides real-time status and specific alarm codes for fast troubleshooting.

Precautions for Use

• Proper Grounding: Ensure the drive is correctly grounded to the machine bed to prevent electrical noise interference with the digital control signals.

• Voltage Stability: Use a regulated power source; excessive voltage fluctuations can damage the power transistors (IGBTs) within the drive.

• Clean Environment: The unit should be housed in an enclosure that protects it from oil mist, metal shavings, and excessive humidity to avoid internal short circuits.

• Discharge Time: After turning off the power, wait at least 5 to 10 minutes for the internal high-voltage capacitors to fully discharge before performing maintenance.

Product Applications

• CNC Milling Machines: Controlling the main cutting spindle for high-speed metal removal.

• CNC Lathes: Managing the primary turning spindle for precision parts manufacturing.

• Machining Centers: Used in multi-axis vertical and horizontal machining centers for complex aerospace and automotive components.

• Grinding Machines: Providing the constant surface speed required for precision grinding operations.
