A22105-134-12 5G Allen-Bradley Output module

Description

A22105-134-12 5G Allen-Bradley Output module

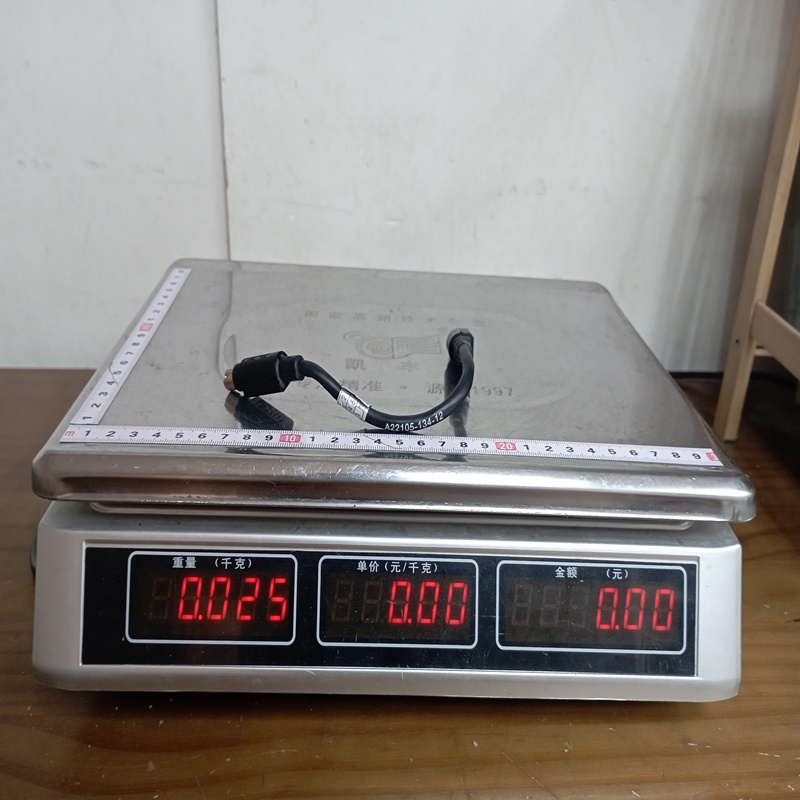

Product Dimensions：

Product Description

The A22105-134-12 is an 8-pin internal ribbon or interface cable. It is designed to facilitate signal communication between different modules or components within a Kinetix drive system. It typically acts as a bridge for feedback signals, low-voltage power distribution, or logic communication within the drive’s control circuitry.

Product Parameters

Product Advantages

• Perfect Form Factor: Designed to fit perfectly within the narrow wiring channels of the Kinetix 6000 chassis, preventing interference with other components.

• Reliable Signaling: Features high-quality shielding or twisted pairing (depending on specific revision) to protect sensitive logic signals from the high-frequency noise of the drive’s power section.

• Easy Maintenance: The modular “plug-and-play” design allows for fast replacement of damaged internal wiring without requiring custom soldering or crimping.

• Secure Fit: Designed with locking headers or tight-tolerance connectors to ensure the cable does not vibrate loose in high-vibration industrial environments.

Important Precautions

• Static Sensitivity: This cable connects to sensitive logic boards. Always wear an ESD (Electrostatic Discharge) wrist strap when handling the cable or opening the drive housing.

• Orientation: Pay close attention to the “Pin 1” indicator (usually a red stripe or a small triangle on the connector). Plugging the cable in backwards can cause a logic short and permanently damage the control board.

• Routing: Do not route this signal cable parallel to high-voltage motor power leads (U, V, W). Even though it is an internal cable, keeping it in its designated plastic guides is essential for noise reduction.

• Inspection: Check the pins for any signs of corrosion or bending before installation, as these are “fine-pitch” connectors that are easily damaged.

Typical Applications

• Internal Drive Repair: Replacing worn or brittle logic cables inside a Kinetix 6000 Integrated Axis Module (IAM) or Business Axis Module (AM).

• Feedback Bridge: Connecting internal feedback processing boards to the main control logic board.

• Multi-Axis Synchronization: Passing low-level logic or safety signals across internal bus structures in a drive rack.
