ADV169-P00 Yokogawa Processor module

Description

ADV169-P00 Yokogawa Processor module

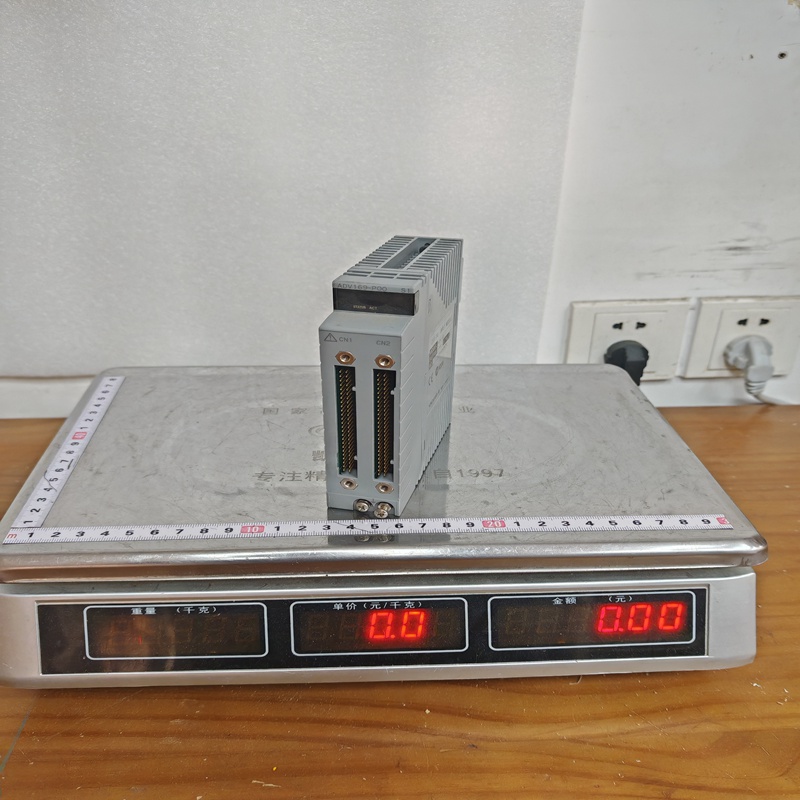

Product Dimensions：

Product Description

The ADV169-P00 is a 64-channel digital input module. It acts as a bridge between field devices (such as sensors, switches, and contact closures) and the DCS, converting external status signals into internal data for process monitoring and control. It is part of the FIO (Fieldbus I/O) series, known for reliability in industrial automation.

Product Parameters

Signal Levels:

• Contact Input: OFF signal: 100 kΩ or more; ON signal: 200 Ω or less.
• Voltage Input: OFF signal: 4.5 to 25 V DC; ON signal: ±1 V DC (or less).

Product Advantages

• High Density: Provides 64 input channels in a single module, saving cabinet space and reducing the overall footprint of the control system.
• High Reliability: Designed for harsh industrial environments, ensuring consistent signal acquisition accuracy for critical process control.
• Flexible Compatibility: Specifically engineered to integrate seamlessly with Yokogawa’s CENTUM series platforms.
• Isolated Channels: The 16-channel common grouping provides a degree of electrical isolation, which helps in reducing noise and protecting the internal bus from field-side electrical disturbances.

Product Applications

The ADV169-P00 is utilized in large-scale industrial processes where high-volume digital monitoring is required, such as:

• Oil & Gas: Monitoring valve positions, pump status, and emergency shutdown switchgear.
• Power Generation: Tracking digital feedback from turbine auxiliaries and cooling systems.
• Chemical & Petrochemical: Managing complex interlocking sequences and plant-wide sensor networks.
• Manufacturing & Infrastructure: Process control monitoring for automated assembly lines or water treatment facilities.

Precautions

• Grounding: Ensure the module and its associated field wiring are properly grounded according to Yokogawa’s installation manuals to prevent electric shock and interference.
• Cable Selection: Use authorized dedicated cables (e.g., KS9) to ensure signal integrity and proper connection to the terminal boards.
• Operating Environment: Avoid environments where temperature fluctuations exceed recommended limits or where corrosive gases exceed standard levels (e.g., ANSI/ISA S71.04 G2/G3).
• Redundancy: When planning your system, verify if your specific application requires the dual-redundant configuration supported by the CENTUM system to prevent downtime during module failure.
