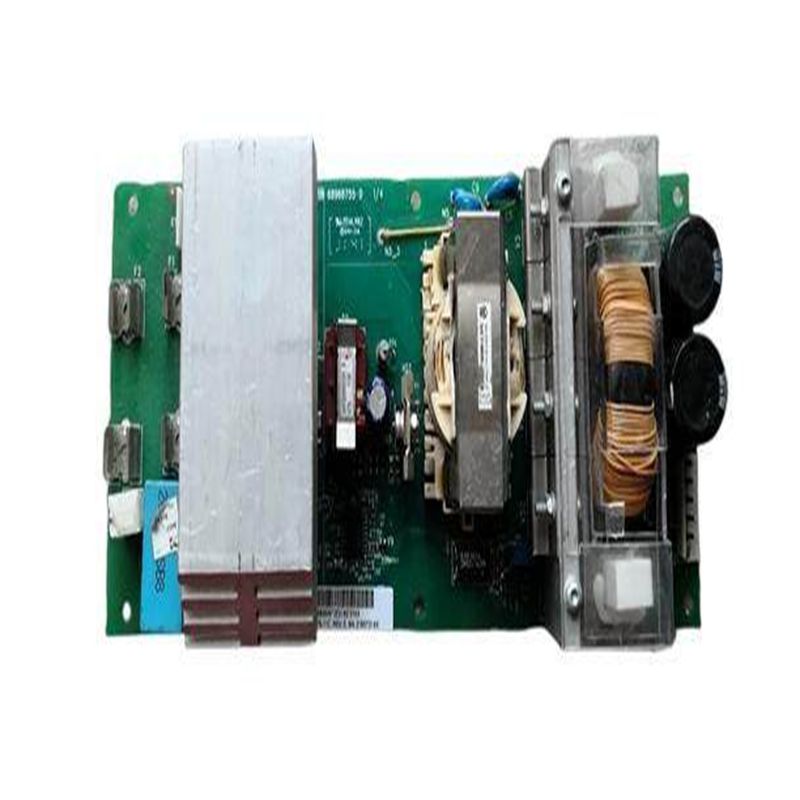

AFPS-11C ABB Industrial Power Supply Module

Description

AFPS-11C ABB Industrial Power Supply Module

Product Dimensions：

Product Overview

The AFIN-01C is a specialized power electronics module that acts as a fan inverter. Its primary function is to control the speed and operation of a 1 kW cooling fan. In industrial drive applications, maintaining optimal operating temperatures for components like power semiconductors and control boards is crucial for reliability and longevity. The AFIN-01C ensures precise fan control, which contributes to efficient cooling and reduced energy consumption by adjusting fan speed based on cooling demand.

Product Parameters

• Voltage Range:380V to 480V

  Frequency Range:45Hz to 60Hz

  Output Power:10kW

  Efficiency Rating:98%

  Protection Class:IP20

  Operating Temperature:-10°C to +40°C

  Input Type:Single-phase / Three-phase

  Output Connections:Terminal Block

  Load Compatibility:Inductive / Resistive / Capacitive

  Control Interface:Modbus RTU

  Standby Mode:Low power consumption

Product Advantages

• Optimized Cooling Performance: By controlling fan speed, it ensures that cooling is adjusted precisely to the load and temperature requirements, preventing overheating while avoiding unnecessary fan operation.
• Energy Efficiency: Variable fan speed control significantly reduces energy consumption compared to fans running at full speed continuously, leading to lower operating costs.
• Extended Fan Lifespan: By reducing continuous full-speed operation, the fan experiences less wear and tear, extending its operational life.
• Reduced Noise: Lower fan speeds result in quieter operation, which can be beneficial in certain industrial environments.
• System Integration: Designed to integrate seamlessly with ABB drive systems, ensuring compatibility and optimal performance.
• Reliability: As an ABB component, it’s built to industrial standards, contributing to the overall reliability of the drive system.

Precautions

• Installation by Qualified Personnel: Due to its nature as a component within electrical drive systems, installation and any associated wiring should only be performed by trained and qualified electrical professionals in compliance with all relevant safety standards and local regulations.
• Power Disconnection: Always ensure the main power to the drive system is completely disconnected and locked out before installing, replacing, or servicing the AFIN-01C.
• Electrostatic Discharge (ESD) Protection: This is an electronic module; handle it with appropriate ESD precautions to prevent damage from static electricity.
• Compatibility: Ensure the AFIN-01C is compatible with your specific ABB drive model and fan. Refer to the drive’s documentation for accessory compatibility.
• Ventilation: While the AFIN-01C manages fan operation, ensure the overall drive cabinet and system have adequate ventilation to dissipate heat effectively.
• Environmental Conditions: Operate the module within its specified temperature and humidity ranges to ensure proper function and longevity.
• Obsolete Status: Be aware that some sources indicate this particular part number (AFIN-01C / 64693808) may be obsolete. If so, contact ABB or an authorized distributor for information on suitable replacement or alternative products.

Product Applications

The ABB AFIN-01C is primarily used as an integral component in ABB industrial drive systems (e.g., AC drives, frequency converters). Its main applications include:

• Optimizing Cooling in Drive Cabinets: Managing the cooling fans within the enclosures of industrial variable speed drives to maintain ideal operating temperatures for the drive’s power modules and control electronics.
• Energy Management in Automation Systems: Contributing to the overall energy efficiency of a plant or facility by ensuring cooling fans consume only the necessary power.
• Spare Parts for Drive Maintenance: Used as a replacement component for failed or aging fan inverter modules within existing ABB drive installations.
• System Upgrades: Potentially used in the refurbishment or upgrade of older drive systems to improve cooling efficiency and reliability.
