AX521 ABB input/output module

Description

AX521 ABB input/output module

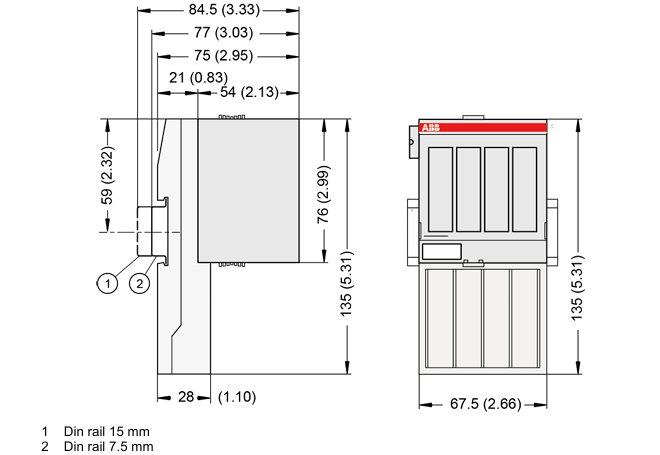

Product Dimensions：

Product Description:

The AX521 is part of ABB’s AC500 automation series, designed to integrate into distributed control systems (DCS). This I/O module provides precise digital input/output functionality for managing automation processes. Its modular design allows for easy expansion and integration into a variety of industrial applications, enhancing system flexibility and reliability.

Product Parameters (Specifications)

• Model: AX521

• Type: Digital I/O Module

• Input Type: Digital (8 inputs)

• Output Type: Digital (8 outputs)

• Supply Voltage: 24V DC

• Input Voltage Range: 19.2V – 30V DC

• Output Voltage Range: 19.2V – 30V DC

• Current Consumption: Typically 90mA

• Input Switching Level:

  • Low: 0V to 5V DC

  • High: 15V to 30V DC

• Output Switching Level:

  • Low: 0V to 5V DC

  • High: 15V to 30V DC

• Mounting Type: DIN rail mount

• Weight: Approx. 120g

• Dimensions: 100 mm x 50 mm x 75 mm

• Communication Interface: Modbus TCP, EtherCAT, or other supported communication protocols (based on the system configuration)

Product Advantages

1. Modular Design:

   • The AX521 is a flexible, modular unit that can be easily integrated into existing systems for a scalable automation setup.

2. High Reliability:

   • Designed for industrial applications, the AX521 is built to withstand tough conditions and provide stable, long-lasting performance.

3. Cost-effective:

   • Its competitive pricing makes it a cost-effective solution for expanding or upgrading automation systems.

4. Versatile Communication Protocols:

   • Supports multiple communication standards (Modbus, EtherCAT, etc.), ensuring seamless integration into various network architectures.

5. Easy Installation:

   • The DIN rail mounting simplifies installation and makes it easy to replace or upgrade modules when necessary.

6. Wide Input/Output Range:

   • Capable of handling a broad range of voltage inputs and outputs, making it adaptable to various types of equipment.

7. High-Speed Processing:

   • Fast response times for real-time control, ensuring accuracy and speed in automation processes.

Precautions

1. Power Supply Compatibility:

   • Ensure the 24V DC power supply is stable and within the recommended input voltage range (19.2V – 30V DC) to prevent potential malfunction.

2. Grounding:

   • Proper grounding is essential for stable operation and to minimize the risk of electrical interference.

3. Ambient Temperature:

   • Operates best within an ambient temperature range of -20°C to +60°C. Ensure proper ventilation in high-temperature environments to avoid overheating.

4. Avoid Overloading:

   • Do not exceed the specified input and output load ratings to prevent damage to the module.

5. Wiring and Installation:

   • Follow proper wiring standards to ensure safe and effective installation. Incorrect wiring may cause damage to the system or malfunction.

6. Electromagnetic Interference (EMI):

   • Ensure that the AX521 module is installed in a location with minimal electromagnetic interference to preserve communication integrity.

Product Applications

• Industrial Automation:

  • Used in factories for controlling machinery, conveyors, robotic arms, and other automated systems.

• Building Automation:

  • Applied in HVAC (Heating, Ventilation, and Air Conditioning) systems for real-time monitoring and control of temperature, humidity, and other variables.

• Process Control:

  • Utilized in industries like oil & gas, chemical processing, and water treatment for managing inputs and outputs for continuous processes.

• Smart Grids:

  • Part of the system to monitor and control power distribution, enhancing the efficiency of smart grids.

• Energy Management:

  • Used for collecting data from various energy sources and controlling energy consumption.

• Transportation:

  • In railways and transportation systems, it can be used for controlling signaling and automation processes.
