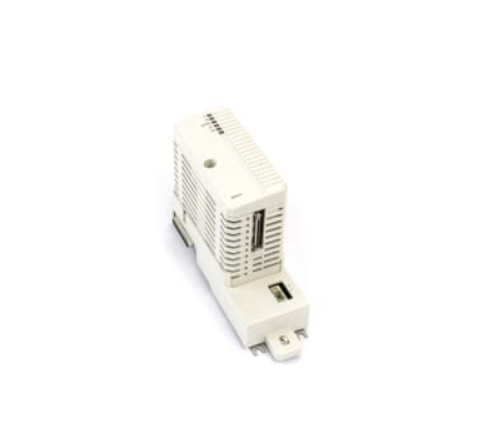

BC810K01 ABB CEX-bus Interconnection Unit

Description

BC810K01 ABB CEX-bus Interconnection Unit

Product Dimensions：

Product Overview

The ABB BC810K01 is a Control and Protection Relay designed to protect motors and electrical circuits from damage caused by overloads, short circuits, and other electrical faults. This device is often used in industrial settings for automation systems, improving the reliability and efficiency of electrical operations.

Product Specifications

• Model: BC810K01

• Supply Voltage: Typically 24V DC

• Output Type: Digital (Relay)

• Relay Contact Rating: 10A (normally open, NO)

• Temperature Range: -20°C to +60°C

• Mounting Type: DIN Rail Mount

• Display: LCD/LED Indicators for fault status and system parameters

• Communication Interface: Modbus RTU (Optional for communication with PLC systems)

• Overload Trip Class: Adjustable (from Class 5 to Class 30)

• Fault Protection: Overload, Short Circuit, Phase Loss, Phase Reversal, and Ground Fault Detection

• Reset Type: Manual or automatic reset options available

Product Advantages

1. Comprehensive Protection: Offers protection for motors and electrical circuits, including overcurrent, short circuits, and ground faults.

2. Adjustable Settings: Customizable settings for overload protection, which can be tailored to the specific motor or equipment needs.

3. Ease of Integration: Can be easily integrated into control panels and automated systems via Modbus RTU, allowing for remote monitoring and diagnostics.

4. Compact Design: Suitable for space-constrained environments, with a compact and efficient design.

5. Energy Saving: Prevents unnecessary motor stoppage by intelligently handling fault conditions, reducing downtime and energy consumption.

6. Clear Display: The built-in display makes it easy for operators to monitor the system’s health and fault status in real-time.

Important Notes

• Installation: Ensure that the device is installed on a stable DIN rail, and avoid exposing it to high humidity, extreme temperatures, or corrosive environments.

• Maintenance: Regularly check the relay for any signs of wear and tear, especially if it’s operating in high-load conditions. It is advisable to test the relay periodically.

• Wiring: Make sure the wiring connections are secure and properly insulated to avoid accidental short circuits or electrical hazards.

• Settings: Adjust overload settings according to the motor’s specific requirements to avoid nuisance tripping or insufficient protection.

• Calibration: Calibration and setting adjustments should be carried out by qualified personnel to ensure proper functioning.

Applications

• Motor Protection: Used in industrial environments for protecting motors from overloads, short circuits, and electrical faults.

• Automation Systems: Suitable for integration into automated systems, providing real-time fault monitoring and protection.

• HVAC Systems: Used in heating, ventilation, and air conditioning systems to protect motors and control circuits.

• Pumps and Compressors: Ideal for protecting pumps and compressors from electrical faults and ensuring operational stability.

• Conveyor Systems: Applied in conveyor systems in manufacturing facilities, ensuring protection against faults and ensuring smooth operation.

Shipping Port: Xiamen, China

Payment: Bank of Chicago, Bank of Singapore

Express cooperation: fedex, DHL, UPS and your express account

Service: Professional Sales provides 24 hours /7 days online service

Please make an inquiry for more models：
