BK3520 BECKHOFF Processor module

Description

BK3520 BECKHOFF Processor module

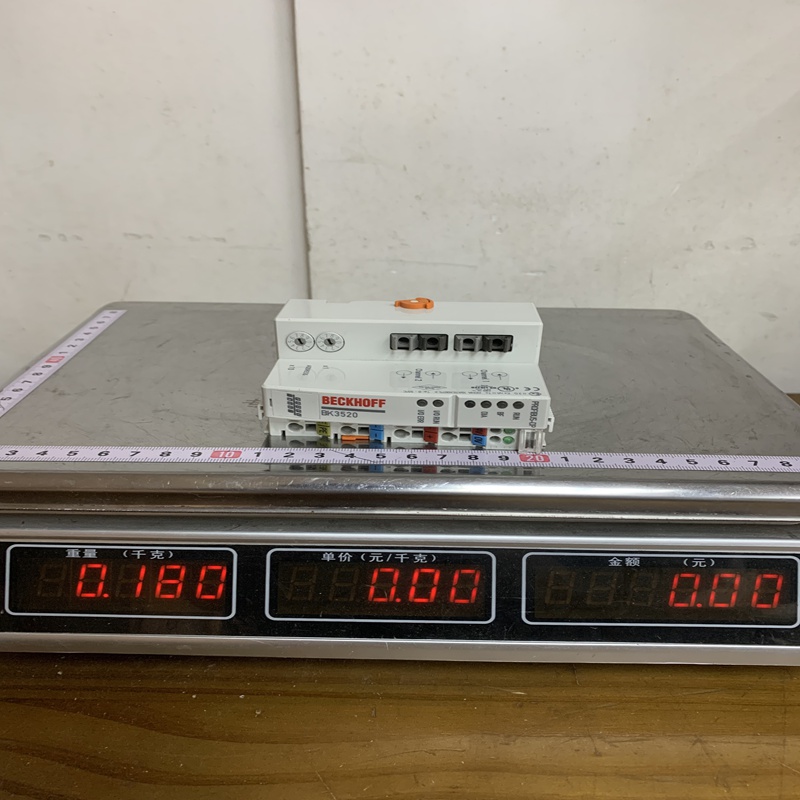

Product Dimensions：

Product Description

The BK3520 acts as the head module for a modular I/O station. It serves as the interface between the ControlNet fieldbus and the electronic terminal blocks (Bus Terminals). One BK3520 can support up to 64 Bus Terminals, providing a highly flexible and scalable solution for distributed automation.

Product Parameters

Product Advantages

• Modular Flexibility: Mix and match digital, analog, and specialty terminals (e.g., encoder interfaces) on a single station.

• Cost-Effectiveness: The “Economy plus” series provides a balanced price-to-performance ratio for mid-to-large scale I/O configurations.

• Compact Design: Fits onto standard DIN rails, saving significant cabinet space compared to traditional I/O blocks.

• Efficient Diagnosis: Features detailed LED status indicators for the fieldbus, the internal K-bus, and the power supply to simplify maintenance.

Key Applications

• Distributed Control Systems: Used in large plants where I/O needs to be placed close to sensors and actuators while communicating back to a central Allen-Bradley or Honeywell controller.

• Material Handling: Ideal for conveyor systems and sorting facilities where modularity is required for different sections of the machine.

• Building Automation: Managing large-scale HVAC or lighting signals over a robust ControlNet backbone.

• Process Engineering: Integrating complex analog signals from the field into a high-speed control network.

Precautions & Installation

Note: The BK3520 requires a KL9010 Bus End Terminal at the end of the terminal stack to function correctly.

1. Address Setting: Use the two rotary switches on the front of the coupler to set the ControlNet node address (MAC ID) before powering up.

2. Power Distribution: The coupler has two sets of 24V contacts. One powers the internal electronics (K-bus), and the other (Power Contacts) feeds the I/O terminals. Ensure both are correctly wired.

3. Media Connection: Use high-quality RG-6 coaxial cables and BNC connectors for the ControlNet connection to prevent signal attenuation.

4. Heat Dissipation: When mounting vertically, ensure there is sufficient clearance (at least 30mm) above and below the unit for natural convection cooling.
