C320KGS3 EATON Freedom NEMA auxiliary contac

Description

C320KGS3 EATON Freedom NEMA auxiliary contac

Product Dimensions：

Product Description

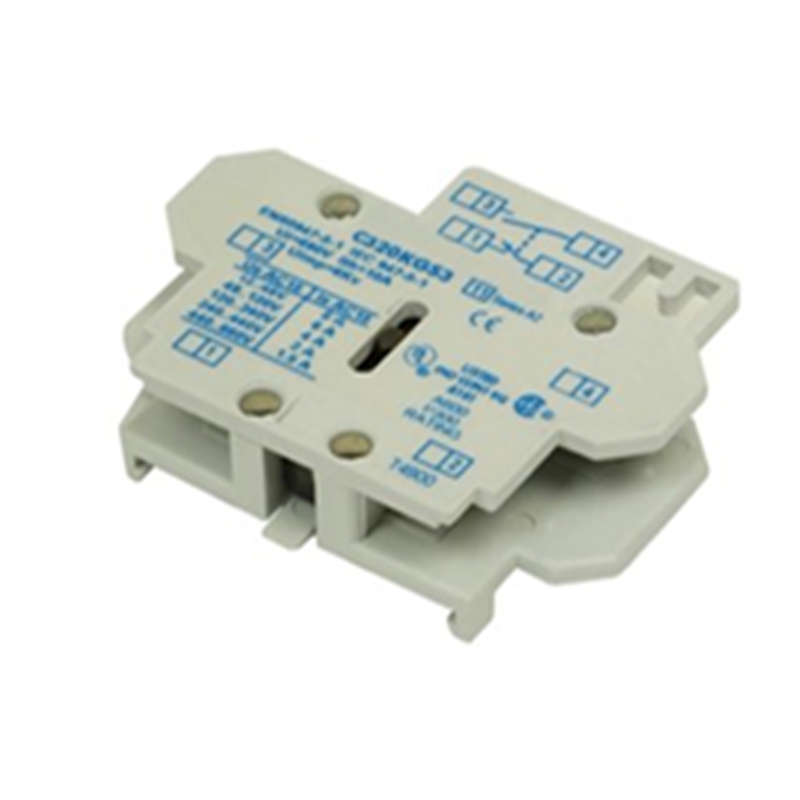

Eaton Freedom NEMA auxiliary contact, Used on Starter and Contactors, 1NO 1NC contacts, Side mounting.

Product Specifications

Dimensions & Weight

• Depth (Length): ~4 in

• Height: ~1.1 in

• Width: ~2.5 in

• Weight: ~0.13 lb

Electrical Ratings

• Rated AC Current: 10 A (e.g., 600 VAC)

• Voltage Handling: Up to 600 VAC, and also rated at 300 VDC

• Alternative Electrical Ratings (from AutomationDirect): 6 A @ 120 VAC, and 1.1 A @ 120 VDC

Certification & Compliance

• cUL Listed

• UL Listed (File E1491), CSA compliant (CSA File # 000353), not RoHS compliant, not CE marked

Mounting & Design

• Side-mount installation for quick, tool-free attachment to Eaton Freedom series starters/contactors

• Snap-on (bifurcated contact block with silver-cadmium alloy) for easy installation and reliability even in low-energy (logic-level) circuits

Additional Info

• UPC: 782113413501

• Designed for use with NEMA Size 00–2 and IEC Size A–K devices

• Manufacturer warranties: 1 year (via Eaton), plus retailer-specific terms (e.g., 60-day to 1-year from some sellers)

Product Advantages

• Compact, space-saving design: Compatible with compact Freedom NEMA footprint

• Simple snap-on side mounting: Streamlines installation, requires no additional hardware

• Dual-contact configuration (1NO + 1NC): Enables versatile control and signaling applications

• Robust construction: Silver-cadmium alloy contacts ensure low-energy switching and longevity

• Wide voltage range: Usable in both high-voltage (600 VAC/DC) and low-voltage control scenarios

• Standard compliance: Meets enduring industrial standards (UL, CSA), ensuring safe integration into control systems

Important Considerations (Notes / Precautions)

• Voltage/Current Compatibility: Ensure load does not exceed 10 A AC or the specified DC current (e.g., 300 VDC). For lower-voltage applications, note the lower rating (e.g., 6 A at 120 VAC) automationdirect.com

• Compliance Limitations: Not RoHS compliant; may be restricted in regions requiring RoHS or CE certification

• Series Compatibility: Designed specifically for Freedom NEMA starters/contactors of Size 00–2; check fit for other series or sizes

• Installation Precautions: While snap-on mounting is user-friendly, ensure proper seating and verify secure electrical contact before powering the system

• Contact Material: Silver-cadmium alloy contacts are durable but may raise concerns in contact with certain environments (consult safety guidelines)

Common Applications

• Motor Control Systems: Integrated into starter assemblies to provide auxiliary signaling (like fault detection or status feedback)

• Industrial Automation: Ideal for logic-level interfacing, interlock systems, or circuit status indication

• Retrofits / Upgrades: Benefits systems using Freedom NEMA base hardware, enabling performance or signaling enhancements

• Control Panels: Used where auxiliary feedback (e.g., contactor open/close states) is needed in equipment control schemes
