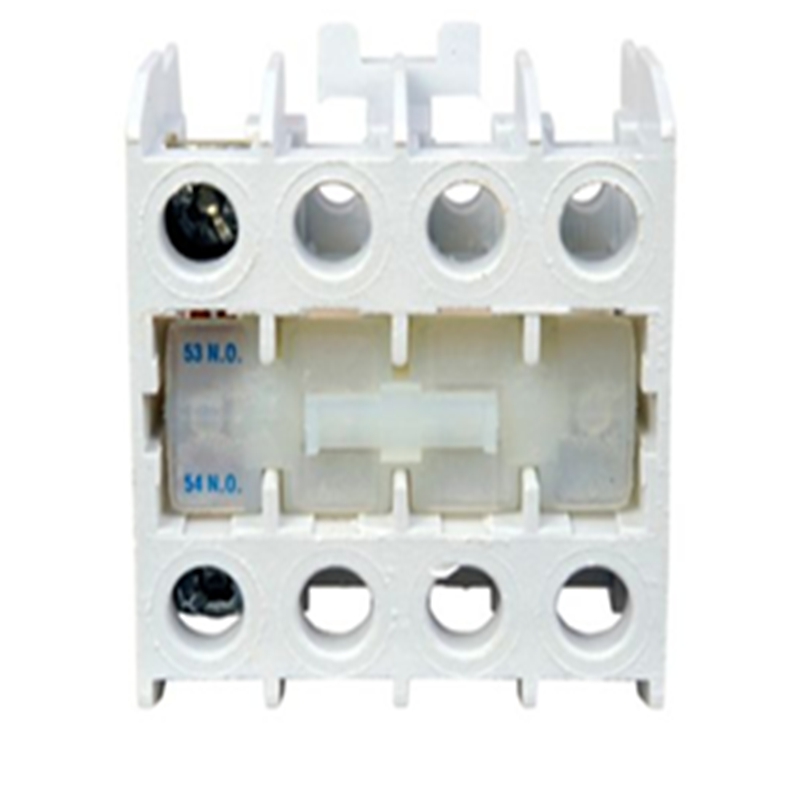

Name: C320KGT15 EATON Freedom NEMA auxiliary contact
Brand: EATON
SKU: 1211
Availability: InStock

Description

C320KGT15 EATON Freedom NEMA auxiliary contact

Product Dimensions：

Freedom Accessory, Auxiliary contact, Used on Starter and Contactors, 1NO (EC) 1NC (LO) contacts, Top mounting.

Product Specifications

Parameter	Details
Model Number	C320KGT15
Contact Configuration	1 NO (Early Closing, EC) + 1 NC (Late Opening, LO)
Mounting Type	Top-mount
Current Rating	10 A (approx.)
Voltage Rating	Up to 600 VAC/VDC
Applicable Sizes	NEMA Size 00–2; IEC Size A–K (e.g., AN16)
Dimensions (L × H × W)	1.9 in × 2.2 in × 1.9 in (depth × height × width)
Weight	0.15 lb (≈ 0.07 kg)
Certifications	cUL Listed
Warranty	1-year manufacturer warranty

Supporting details:

General specs (dimensions, contact configuration, mounting, weight, warranty, certification)
Electrical ratings (10 A, 600 VAC/VDC)
Contact configuration & size compatibility

Precise control for reversing operations: Early Closing (EC) and Late Opening (LO) contacts help prevent simultaneous contacts during motor reversing.
Compact, space-saving design: Top-mount configuration avoids using additional panel space.
High load capacity: Supports robust 10 A current at up to 600 VAC/VDC—suitable for demanding industrial environments.
Easy, tool-free installation: Snap-on mounting method simplifies assembly and maintenance.
Reliable compliance: cUL certification ensures safety and electrical compliance.

Ensure compatibility with the intended starter/contactor (NEMA 00–2, IEC A–K) before installation.
Observe electrical limits—do not exceed the 10 A and 600 VAC/VDC ratings to avoid risk of damage or unsafe operation.
Proper seating is critical, especially in reversing applications, to ensure EC/LO timing functions correctly and safely.
Verify environmental compliance—there’s no indication this model is RoHS or CE compliant, which could be relevant for certain regulatory environments.
Check the warranty terms to understand coverage and claims procedures for your application.

Reversing motor starters: EC/LO contacts ensure safe sequenced switching when reversing motor direction.
Interlock systems: Ideal for preventing simultaneous actuation or to transition control states cleanly.
Control panel signaling: Provides reliable auxiliary feedback for system status or fault indication.
Industrial automation: Useful in logic circuits or PLC inputs where precise contact timing is required.
Maintenance and retrofit scenarios: Easily added to existing Freedom-series equipment to enhance control functionality.
