CBI2410A BAE Power module

Description

CBI2410A BAE Power module

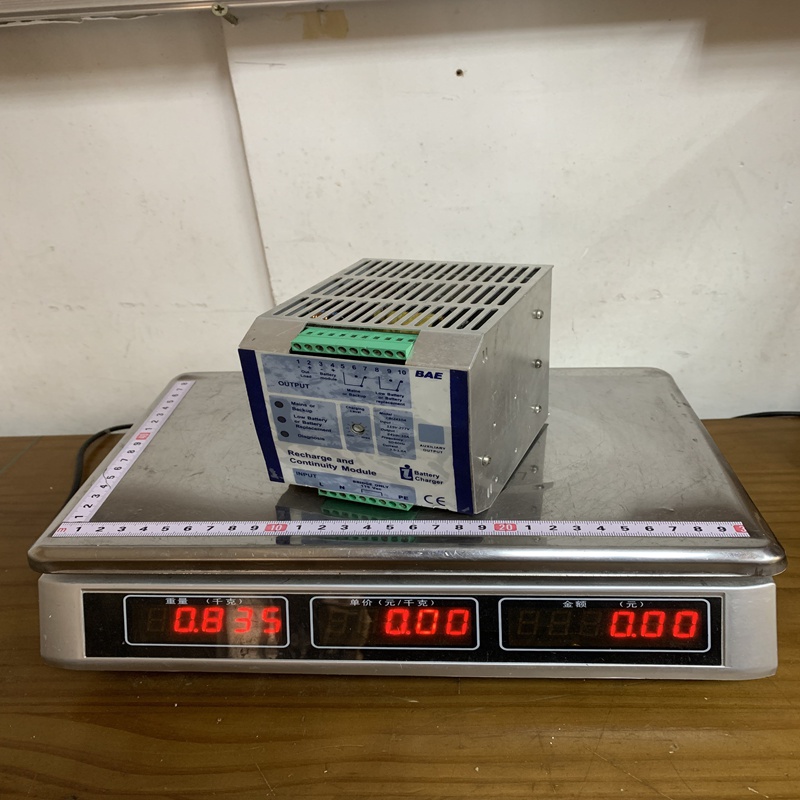

Product Dimensions：

Product Description

The CBI2410A is a digital switch-mode device designed for 24V systems. It provides uninterruptible power by automatically switching between the main line and the battery. Its core strength lies in its Battery Care philosophy, which utilizes sophisticated charging algorithms to maximize battery life and ensure reliability in critical environments.

Product Parameters

• Input Voltage: Single-phase 115 – 230 – 277 VAC

• Output Voltage: 24 VDC

• Output Current: 10 Amps (continuously available)

• Charging Current: Adjustable via jumpers or software

• Efficiency: > 91%

• Battery Compatibility: Open Lead Acid, Sealed Lead Acid, Gel, Ni-Cd, and Li-Ion

• Protection Rating: IP20

• Mounting: DIN Rail (TS35)

• Dimensions: 65 x 115 x 135 mm

Product Advantages

• All-in-One Integration: Combines three functions (Power Supply, Backup, Battery Charger) in one unit, saving significant space on the DIN rail.

• Intelligent Battery Care: Features four charging stages (Recovery, Boost, Absorption, Float) and automatic diagnostic checks for battery health, such as internal impedance and sulfation.

• Power Management: The device can prioritize the load; if the system requires more power, it will reduce the battery charging current to ensure the load is fully powered.

• Fault Monitoring: Equipped with dry contact relays for “Low Battery” and “Replace Battery” signals, allowing for remote monitoring.

• Compact Design: High power density with rugged metal housing suitable for harsh industrial conditions.

Precautions for Use

• Ventilation: Ensure at least 20mm of free space around the unit to allow for natural convection cooling.

• Polarity: Double-check battery polarity before connection; though the unit has protection, reverse polarity can cause stress on the system.

• Battery Selection: Ensure the battery type selector (jumpers) is correctly set to match your specific battery chemistry to avoid overcharging.

• Temperature Compensation: For optimal battery life, it is recommended to use the optional external temperature sensor (RJ45 connection) to adjust charging voltage based on ambient heat.

Product Applications

• Industrial Automation: Powering PLCs and sensors where downtime is not an option.

• Fire & Safety Systems: Reliable backup for alarm panels and emergency lighting.

• Telecommunications: DC power supply for remote monitoring stations and radio equipment.

• Renewable Energy: Integration into solar or wind control cabinets for consistent system power.

• Generators: Used as a high-reliability starter battery charger for standby generators.
