CC-E/STD ABB Signal converter

Description

CC-E/STD ABB Signal converter

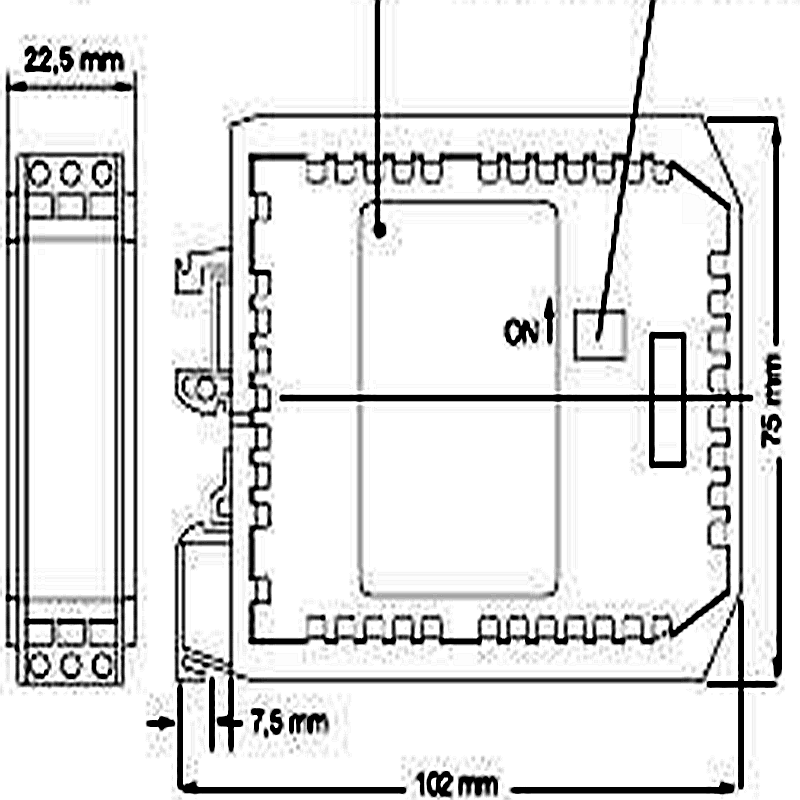

Product Dimensions：

Product Description

The ABB CC-E/STD (part number 1SVR011700R0000) is a universal standard analog signal converter from the ABB CC-E range. It’s a versatile device designed to convert one type of analog signal into another, providing electrical isolation in the process. This function is crucial for ensuring compatibility between different devices in an automation system and for protecting equipment from electrical noise or ground loops.

The unit features 3-way electrical isolation between the input, output, and power supply. This is a significant safety and reliability feature. It operates with a rated control supply voltage of 24V DC and is designed for easy installation on a DIN rail.

Product Specifications

• Part Number: 1SVR011700R0000
• Function: Universal analog signal converter
• Isolation: 3-way electrical isolation (input, output, and power supply)
• Input Signal Ranges:
  • 0-5V
  • 0-10V
  • 0-20mA
  • 4-20mA
• Output Signal Ranges:
  • 0-5V
  • 0-10V
  • 0-20mA
  • 4-20mA
• Control Supply Voltage: 24V DC
• Power Loss: Approximately 2W
• Configuration: Input and output ranges are configured via lateral DIP switches. Fine-tuning of gain and offset is done with potentiometers on the front panel.

Key Advantages

• High Versatility: The ability to handle multiple input and output signal ranges (both voltage and current) makes it a “universal” converter, reducing the need for different specialized devices.
• Robust Isolation: The 3-way electrical isolation protects sensitive control systems from ground loops and voltage spikes, improving system reliability and safety.
• Easy Configuration: The use of easily accessible DIP switches and front-panel potentiometers simplifies setup and calibration without requiring complex software tools.
• Reliable Performance: As an ABB product, the CC-E/STD is designed for industrial applications, ensuring stable and reliable performance in demanding environments.
• Fail-Safe Functionality: The device can be configured to detect an interrupted input signal and set the output to a low or high fail-safe value. This feature helps prevent incorrect system responses in case of a sensor or wire failure.

Precautions

• Installation: Always ensure the device is installed on a DIN rail in a clean, dry environment, following the instructions in the official manual.
• Wiring: Use the correct wire gauges and ensure all connections are secure to prevent intermittent signals or failures. Respect the polarity of the DC power supply.
• Configuration: Before applying power, double-check the DIP switch settings to ensure they match the desired input and output signal ranges. Incorrect settings could lead to unexpected behavior.
• Warranty: If you’ve purchased the product from a third-party seller, be aware that it might not be covered by the original manufacturer’s warranty. Always check the warranty policy with your supplier.

Product Applications

The CC-E/STD is commonly used in various industrial automation and process control applications, including:

• Signal Conversion in PLCs: Converting signals from different sensors (e.g., a 4-20mA temperature sensor) into a signal compatible with a PLC’s analog input module (e.g., 0-10V).
• Building Automation: Integrating different building management systems (BMS) by converting signals from various field devices.
• Process Control: Ensuring seamless communication between different instruments, such as flow meters, pressure transmitters, and control valves, which may operate on different signal protocols.
• Machine Manufacturing: Providing isolated signal links between different components of a machine to prevent electrical interference and ensure reliable operation.
