CC-PCNT01 HONEYWELL Power module

Description

CC-PCNT01 HONEYWELL Power module

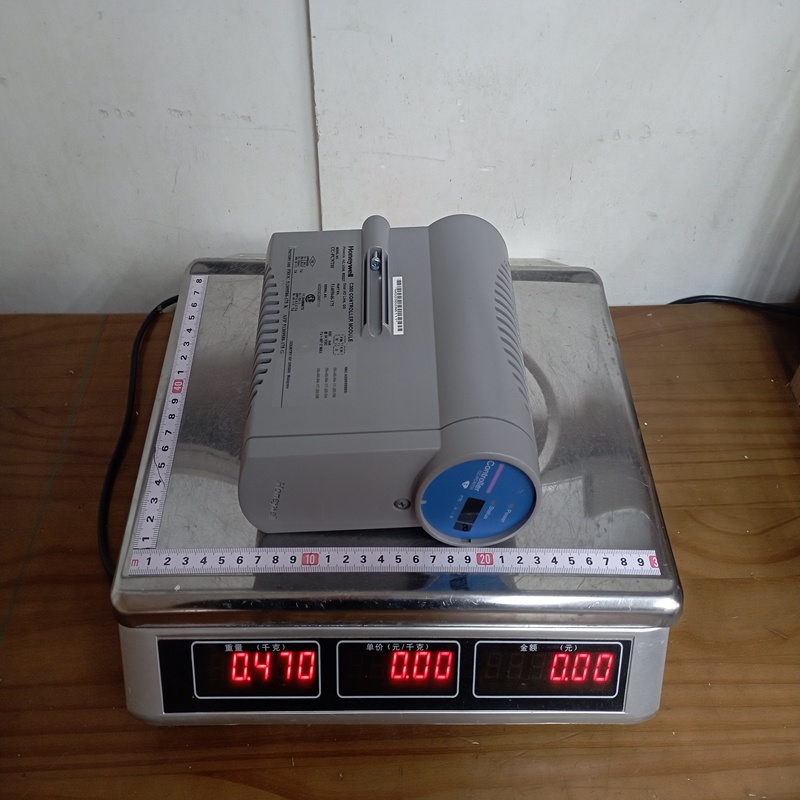

Product Dimensions：

Product Description

The CC-PCNT01 is part of the Series C family of I/O modules. It serves as a specialized interface that counts high-frequency pulses from field devices and converts them into engineering units that the C300 controller can process. It is known for its high precision, reliability in harsh industrial environments, and seamless integration with Honeywell’s Experion platform.

Product Parameters

The technical specifications of the CC-PCNT01 ensure it can handle demanding industrial pulse-counting tasks:

• Model Number: CC-PCNT01

• Input Channels: Typically 2 or 8 channels (depending on configuration/TBA).

• Pulse Frequency: Supports high-frequency inputs up to 100 kHz.

• Input Voltage Range: Supports standard signals (e.g., 0-5V, 0-24V) and NAMUR sensors.

• Power Consumption: Low power dissipation design for cabinet efficiency.

• Isolation: Galvanic isolation between field side and system side to prevent electrical interference.

• Operating Temperature: -40°C to +70°C (standard industrial range).

Product Advantages

• High Accuracy: Provides precise accumulation and frequency measurement, which is critical for custody transfer and flow monitoring.

• Redundancy Support: Can be configured in a redundant pair to ensure maximum system availability and zero data loss.

• Hot-Swappable: The module can be replaced while the system is powered and running, reducing downtime.

• Seamless Integration: Fully integrated into the Experion PKS configuration toolset, allowing for easy setup and diagnostics.

Important Considerations

• Grounding: Ensure proper shielding and grounding of pulse input cables to avoid false counts caused by electromagnetic interference (EMI).

• Terminal Compatibility: Must be used with the correct Input Output Termination Assembly (IOTA) to ensure proper physical connection.

• Firmware Version: Verify that the C300 controller firmware is compatible with the CC-PCNT01 hardware revision to avoid communication errors.

• Signal Type: Ensure the field device’s pulse amplitude and type (Active vs. Passive) match the module’s input settings.

Product Applications

The CC-PCNT01 is widely utilized in sectors where rotational speed or volume measurement is essential:

• Oil & Gas: Monitoring turbine flow meters for volume measurement in pipelines.

• Power Generation: Measuring the rotational speed (RPM) of turbines or motors.

• Chemical Processing: Precise dosing and batching operations based on pulse feedback.

• Water Treatment: Integrating flow sensors for distribution and consumption monitoring.
