CC-PDIL01 51405040-175 HONEYWELL Central control module

Description

CC-PDIL01 51405040-175 HONEYWELL Central control module

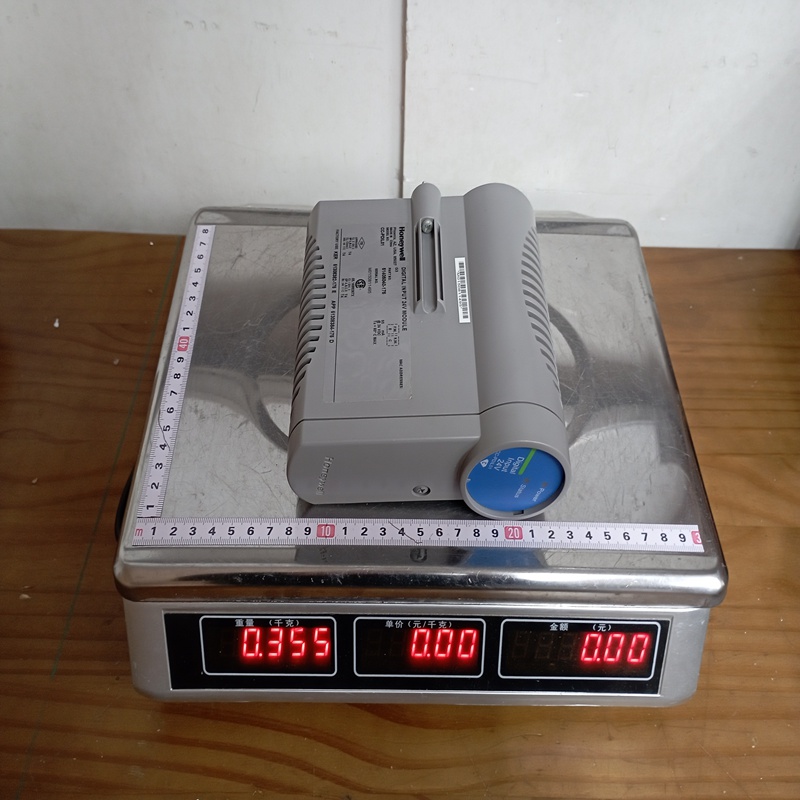

Product Dimensions：

Product Description

The CC-PDIL01 is a 24 VDC Digital Input (DI) module that interfaces field switches, limit switches, and contact status signals with the C300 controller. The “CC” prefix indicates that the module features Conformal Coating, providing superior protection against harsh, corrosive, or humid industrial environments. It is designed to be mounted on a Series C Input Output Termination Assembly (IOTA).

Technical Parameters

Key Product Advantages

• High Density: With 32 channels in a single compact module, it significantly reduces the footprint required in the control cabinet.
• Series C Design: Features the slanted “Series C” form factor which optimizes heat dissipation and simplifies vertical wiring.
• Robust Protection: The Conformal Coating (G3-compliant) makes it ideal for industries like Oil & Gas or Chemicals where corrosive gases (H₂S, Chlorine) are present.
• Plug-and-Play Integration: Seamlessly integrates with Honeywell Experion PKS software, allowing for easy configuration and rapid diagnostics.
• Reliability: Built for 24/7 continuous operation with advanced internal self-diagnostics to detect module health issues.

Product Applications

The CC-PDIL01 is primarily used in large-scale process industries, including:

• Oil & Gas Refineries: Monitoring valve positions, pressure switches, and emergency shutdown triggers.
• Chemical Plants: Interfacing with level switches and flow meters.
• Power Generation: Tracking the status of circuit breakers and motor starters.
• Pharmaceuticals: Monitoring cleanroom environmental switches and batch process interlocks.
• Pulp & Paper: Managing high-speed digital signals across large processing lines.

Important Considerations (Precautions)

• IOTA Compatibility: This module must be paired with the correct IOTA (Input Output Termination Assembly), typically the CC-TDIL01 (non-redundant) or CC-TDIL11 (redundant).
• Polarity Matters: Ensure the 24 VDC field power polarity is correct; reversed polarity can prevent signal detection or blow internal fuses.
• Hot Swapping: While Series C modules generally support hot-swapping, always ensure the system’s redundancy state is “OK” before removing a live module to prevent process upsets.
• Grounding: Proper earthing of the IOTA and the shield of the field cables is essential to prevent electromagnetic interference (EMI) from causing “ghost” signals.
