CE15ANS3AB EATON Freedom series IEC contactor

Description

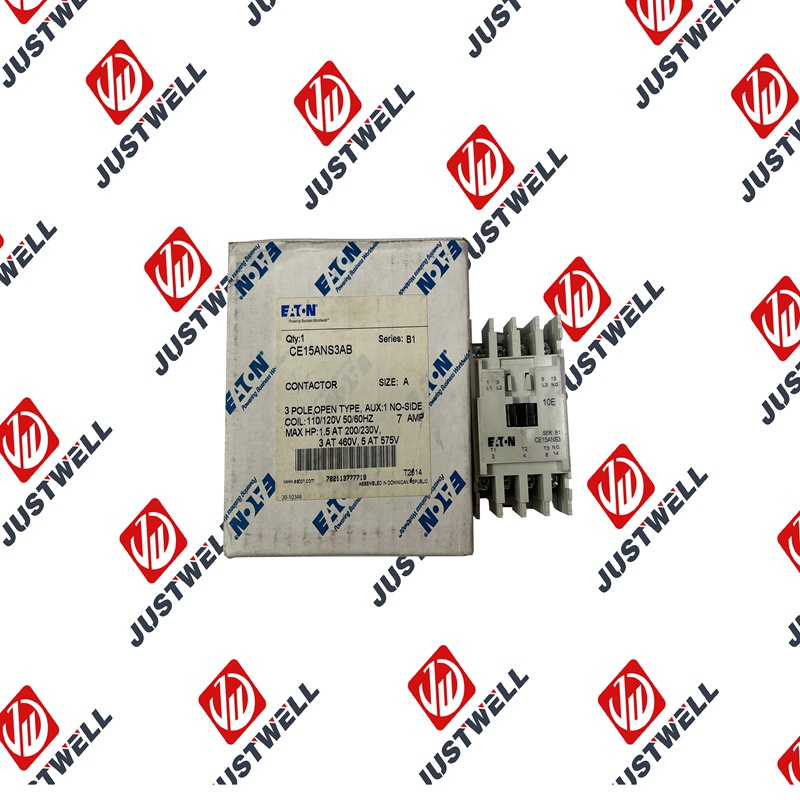

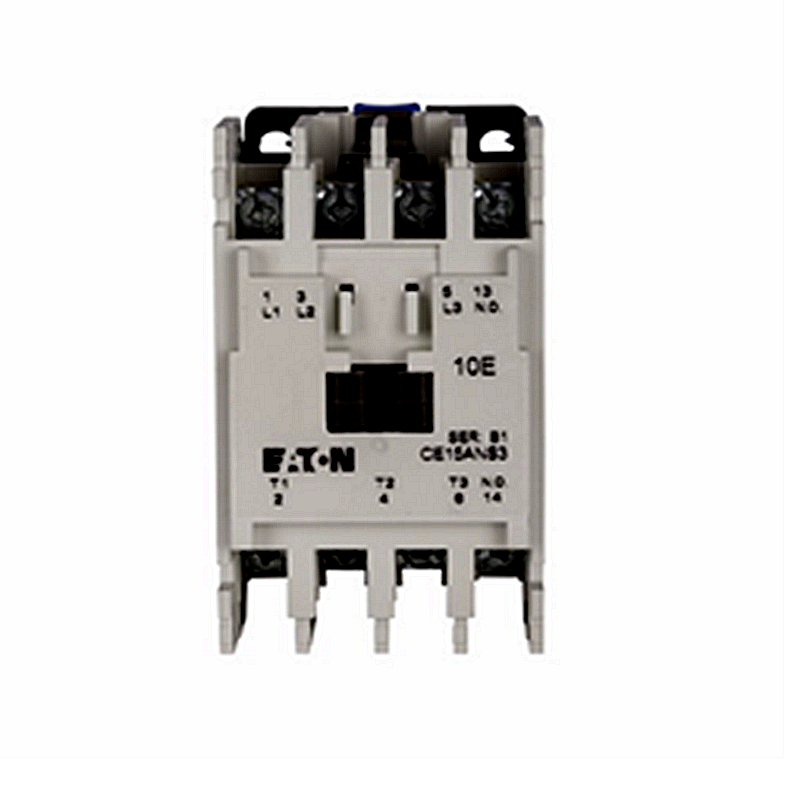

CE15ANS3AB EATON Freedom series IEC contactor

Product Dimensions：

Product Description

The Eaton CE15ANS3AB is an IEC-format, full-voltage, non-reversing magnetic contactor from the Freedom series. It features three power poles, one auxiliary normally-open contact (1 NO), and a 110/120 VAC coil design for reliable motor or load switching control.

Product Specifications (Parameters)

• Series / Type: Freedom Series, IEC A-frame, Full-voltage, 3-pole, Non-reversing contactor, no integrated overload relay.

• Coil Voltage: 110 VAC (50 Hz) / 120 VAC (60 Hz).

• Current Rating: 7 A continuous, with IEC thermal capacity up to 20 A.

• Horsepower Ratings:

  • ¼ HP at 115 V (1-phase)

  • ½ HP at 230 V (1-phase)

  • 1½ HP at 200/230 V (3-phase)

  • 3 HP at 460 V (3-phase)

  • 5 HP at 575 V (3-phase)

• Auxiliary Contact: 1 normally-open, side-mounted.

• Mounting Options: Panel or DIN-rail, with included steel mounting plate. Flexible mounting orientation (horizontal or vertical) supported.

• Frame Size / Dimensions: IEC Frame A, 45 mm width, approx. 3.25″ (L) × 1.8″ (W) × 2.96″ (H).

• Operating Temperature: –5 °C to +65 °C.

• Certifications: UL and CSA approved. Also compliant with IEC standards.

• Durability: Approximately 3 million mechanical operating cycles.

• Warranty: Eaton warranty of 1 year from installation or 18 months from shipment.

Product Advantages

• Compact & Space-Saving: Its compact 45 mm IEC frame facilitates efficient installation in panels.

• Flexible Mounting: Can be mounted horizontally or vertically; panel or DIN-rail supported, aiding versatile deployment.

• Time-saving Wiring: Features captive, self-lifting pressure plate screw terminals for faster and safer wiring.

• Reliable Contact Construction: Silver cadmium oxide twin-break contacts ensure robust conductivity and resistance to welding.

• Auxiliary Switching Capability: Includes 1NO auxiliary contact for control logic integration or auxiliary signaling.

• High Durability: Rated for millions of mechanical cycles, suitable for heavy-duty industrial use.

• Universal Compliance: Meets multiple safety and design standards across UL, CSA, and IEC frameworks, aiding global deployment.

Caution / Handling Notes

• No Overload Protection Built In: This is strictly a contactor, not a motor starter. Pair it with a suitable overload relay for motor protection.

• Ensure Circuit Compatibility: Match coil voltage requirement (110/120 VAC) and load current with application specifics.

• Panel Clearance: The 45 mm width and necessary airflow should be accounted for when building panels.

• Temperature Considerations: Install in environments within the –5 °C to +65 °C range to avoid performance issues.

• Proper Mounting: Use approved mounting plate and follow Eaton’s mounting guidelines for safety and reliability.

• Warranty Conditions: Warranty applies from installation or shipment—document dates accordingly.

Applications

• Motor Control: Ideal as a control contactor in motor starter circuits when matched with overload protection.

• Industrial Machinery: Used in automation systems, machine tools, and production controls requiring dependable switching.

• Commercial Equipment: Fits applications like HVAC, pumps, or conveyors needing compact, reliable contactors.

• OEM Control Panels: Suitable for panel builders seeking modular, IEC-compliant components.
