CRI0-9063 National Instruments Programmable controller

Description

CRI0-9063 National Instruments Programmable controller

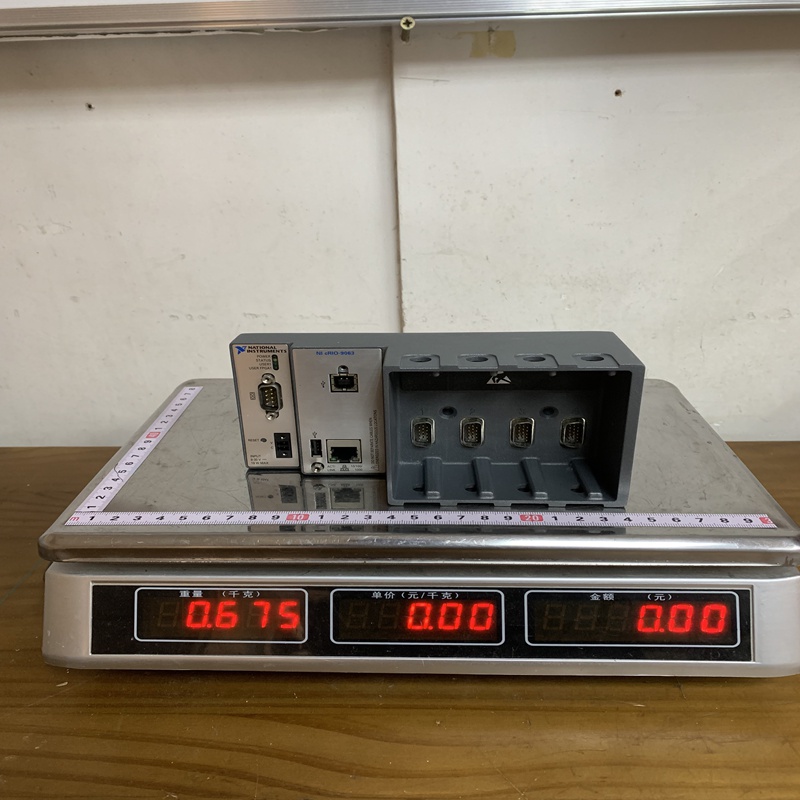

Product Dimensions：

Product Description

The cRIO-9063 (National Instruments) is an embedded, industrial-grade CompactRIO Controller designed for high-performance control and monitoring. It is a cost-effective yet powerful “System on Module” (SOM) that combines a real-time processor with a reconfigurable FPGA.

Product Parameters

The cRIO-9063 is part of the Value Line of Zynq-based CompactRIO controllers.

Key Product Advantages

• Zynq SoC Architecture: By integrating the CPU and FPGA on a single die, the cRIO-9063 offers high-speed communication between the processor and the I/O, reducing latency and increasing throughput.

• NI Linux Real-Time: Provides a robust, open-source-based RTOS that allows developers to use community libraries, C/C++, and LabVIEW simultaneously.

• Reconfigurable I/O (RIO): The FPGA allows you to implement custom timing, triggering, and signal processing that would be impossible on a standard processor.

• Ruggedness: Designed for harsh environments, featuring high shock (50 g) and vibration (5 g) resistance.

• Integrated Chassis: Unlike some RIO systems that require a separate controller and backplane, the 9063 is an integrated unit containing both the brain and the 4-slot expansion bank.

Product Applications

• Embedded Control: Ideal for smart machines, industrial robots, and medical devices requiring high-speed feedback loops.

• Condition Monitoring: Real-time analysis of vibration, noise, and harshness (NVH) in power plants or heavy machinery.

• Power Grid Monitoring: Measuring quality and managing distributed energy resources (DERs) with microsecond precision.

• Asset Tracking & Datalogging: Using the USB port for high-capacity data storage in remote locations.

Important Usage Notes (Precautions)

• Grounding: Ensure the chassis is properly grounded using the grounding screw to prevent electromagnetic interference (EMI) and protect the internal FPGA.

• Thermal Management: While rated for 55 °C, ensure adequate airflow around the cooling fins. If mounted in a small enclosure, the internal temperature can rise quickly.

• Module Compatibility: This controller is compatible only with C Series modules. Ensure the power budget of your selected modules does not exceed the controller’s supply capability.

• Software Version: Check the “NI-RIO” driver version compatibility. Newer versions of LabVIEW may require specific firmware updates for the 9063 to be recognized in the project explorer.

Deployment Workflow

1. Develop: Write LabVIEW Real-Time and LabVIEW FPGA code on a PC.

2. Compile: Compile the FPGA bitfile (this may take 10-30 minutes).

3. Deploy: Transfer the code via Ethernet to the cRIO-9063.

4. Run: The controller operates headlessly (without a monitor) as a standalone unit.
