CRIO-9030 National Instruments CompactRIO controller

Description

CRIO-9030 National Instruments CompactRIO controller

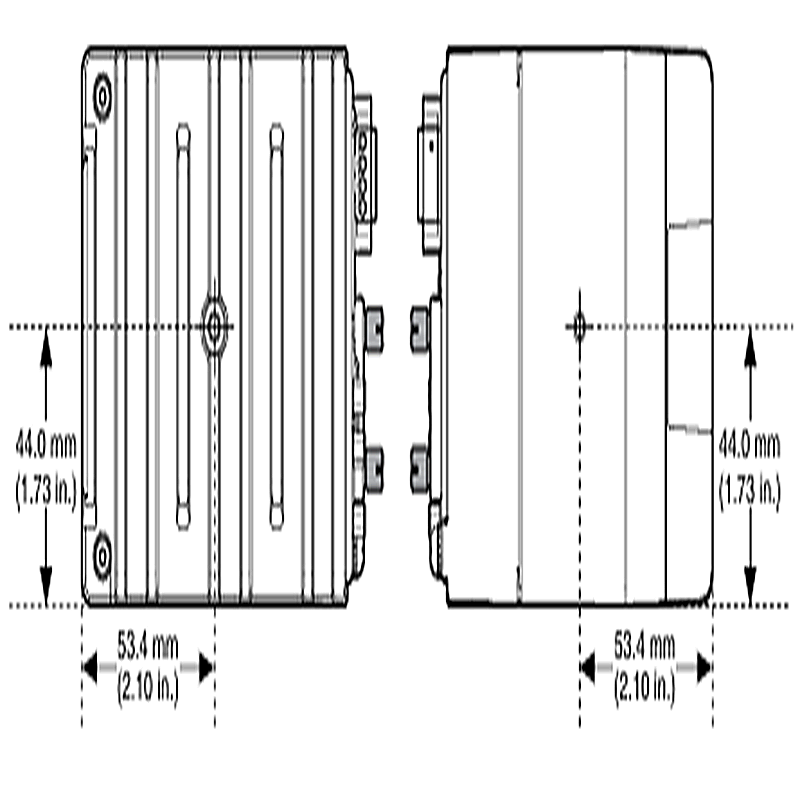

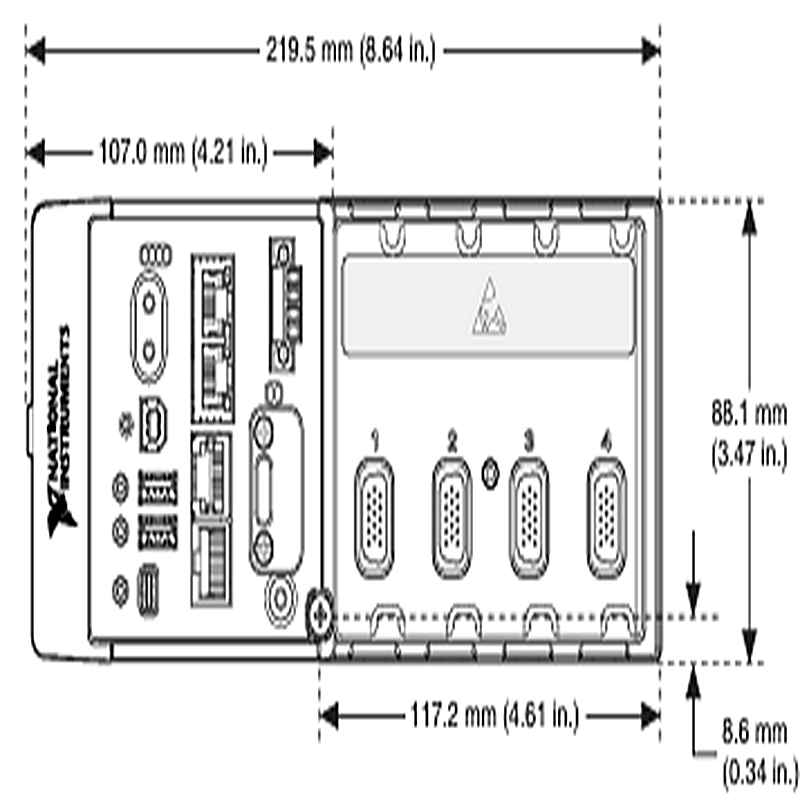

Product Dimensions：

Product Description

The NI cRIO-9030 is a high-performance, embedded controller for the CompactRIO platform. It’s a key component for building rugged, reliable, and sophisticated control and monitoring systems. The cRIO-9030 combines a real-time processor, a user-programmable FPGA, and a 4-slot chassis into a single, compact device.

Product Specifications

• Processor: Intel Atom E3825 (1.33 GHz dual-core)
• FPGA: Xilinx Kintex-7 7K70T
• RAM: 1 GB DDR3L
• Storage: 4 GB onboard nonvolatile storage
• Operating System: NI Linux Real-Time OS
• I/O:
  • 2 tri-speed Gigabit Ethernet ports
  • 2 USB host ports
  • 1 USB device port
  • 2 serial ports (RS-232 and RS-485/422)
  • 1 Mini DisplayPort for a local HMI
• Chassis Slots: 4 C Series module slots
• Operating Temperature: -20 °C to 55 °C
• Dimensions: 219.5 mm × 88.1 mm × 109.2 mm (8.64 in. × 3.47 in. × 4.30 in.)

Product Advantages

• Software-Defined Architecture: The cRIO-9030 is a “software-designed” controller, offering a powerful combination of a real-time processor and a user-programmable FPGA. This allows you to perform deterministic control and high-speed I/O processing directly in the FPGA while using the processor for tasks like data logging, network communication, and HMI.
• Rugged and Reliable: Designed for industrial applications, the cRIO-9030 is a fanless, embedded controller with an IP20 ingress protection rating. It has a wide operating temperature range and is built to withstand shock and vibration, making it suitable for deployment in harsh environments.
• Flexibility and Modularity: With its 4 C Series module slots, you can easily customize the cRIO-9030 to fit your specific application. You can choose from over 50 different C Series modules to measure a variety of signals, including voltage, temperature, strain, and more.
• Advanced Connectivity: The controller’s wide range of connectivity options—including dual Gigabit Ethernet, multiple USB ports, and serial ports—makes it easy to integrate into existing systems and networks. The Mini DisplayPort is a major advantage for developing a local user interface.

Product Applications

The NI cRIO-9030 is an ideal solution for a variety of advanced control and monitoring applications.

• Industrial Machine Control: It can be used to build complex, high-performance control systems for industrial machinery, such as robotic arms, manufacturing equipment, and process control systems.
• Condition Monitoring: Its rugged design and high-speed FPGA make it perfect for monitoring the health of assets like wind turbines, pumps, and motors by analyzing vibration, temperature, and other sensor data in real time.
• Hardware-in-the-Loop (HIL) Simulation: The real-time processor and FPGA are a great combination for HIL testing, where the controller must interact with a real-time system to test its behavior and performance.
• Embedded Vision: With the appropriate camera, the cRIO-9030’s processor and FPGA can be used for embedded vision applications, allowing for real-time image processing and analysis.

Precautions

• ESD Precautions: The controller contains sensitive electronic components. Always handle the device in a static-safe environment and follow proper electrostatic discharge (ESD) procedures to prevent damage.
• Power Supply: The cRIO-9030 requires a DC power supply with a voltage range of 9 V to 30 V. Use a recommended power supply to ensure reliable operation.
• Mounting: To meet its shock and vibration specifications, the cRIO-9030 must be mounted directly on a flat, rigid surface.
• Hazardous Locations: The cRIO-9030 is certified for use in certain hazardous locations, but you must follow all guidelines in the user manual to ensure safety and compliance.
